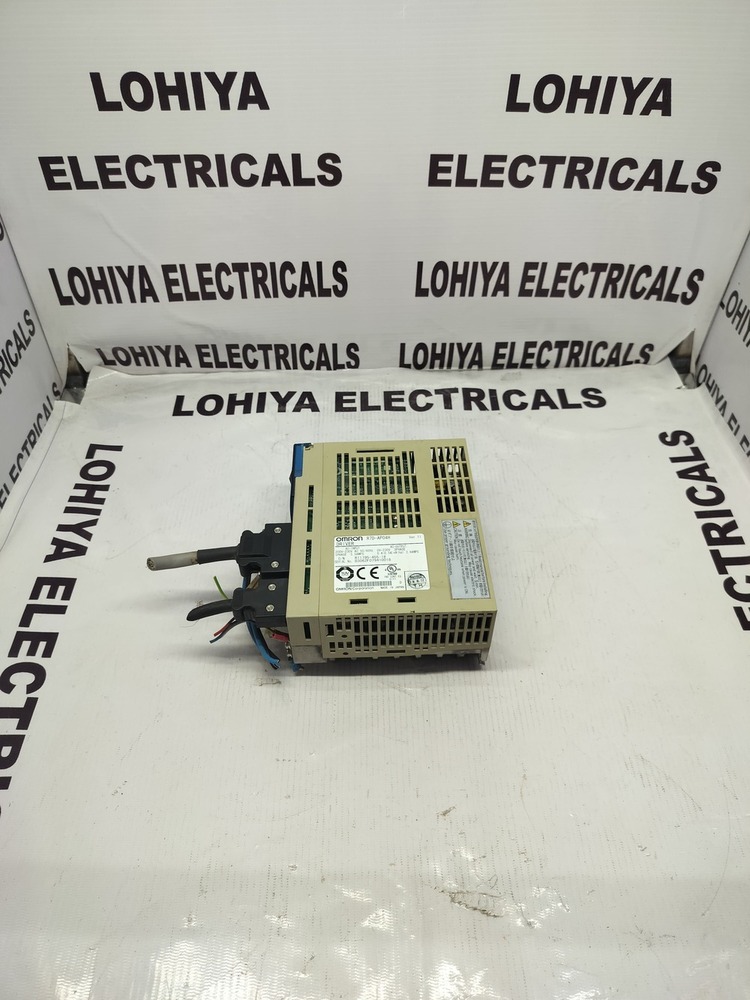

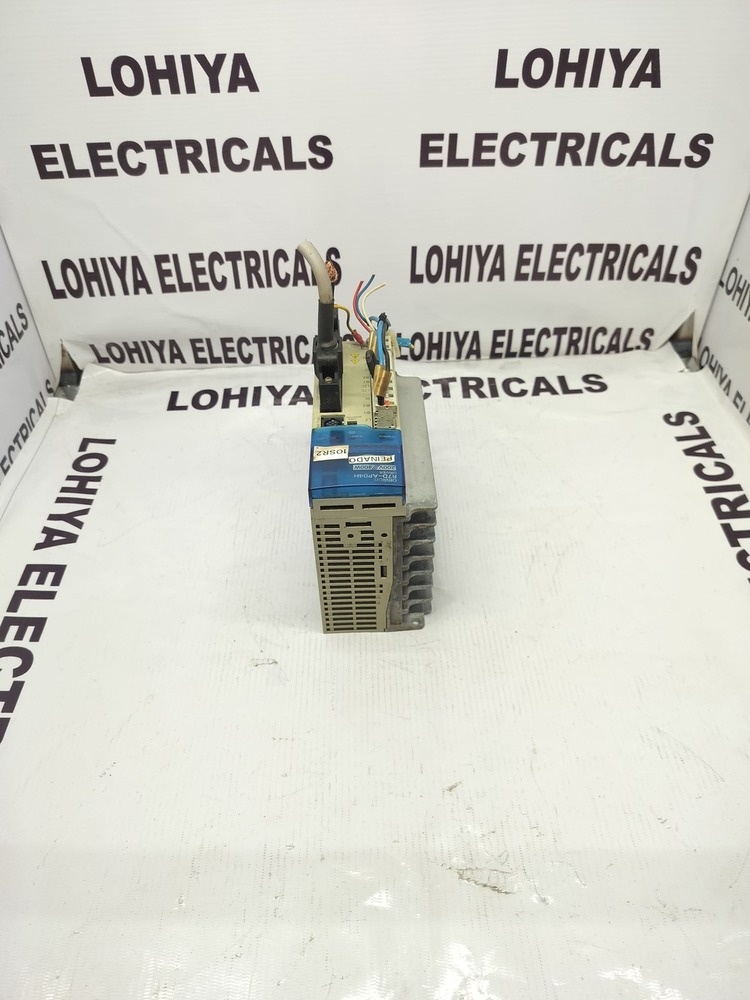

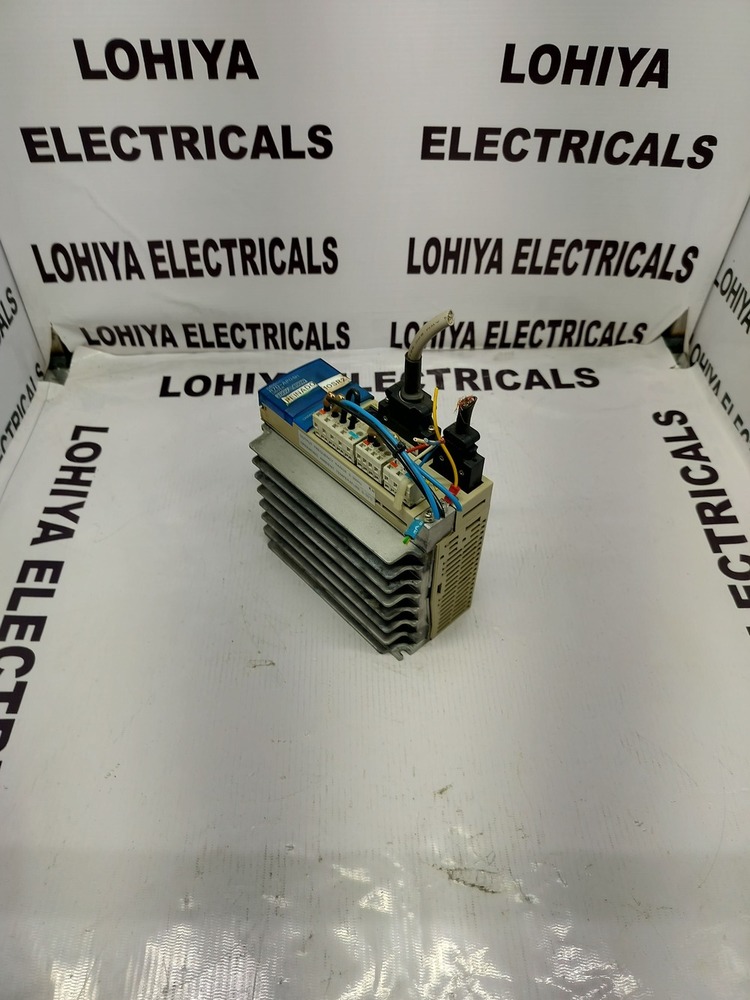

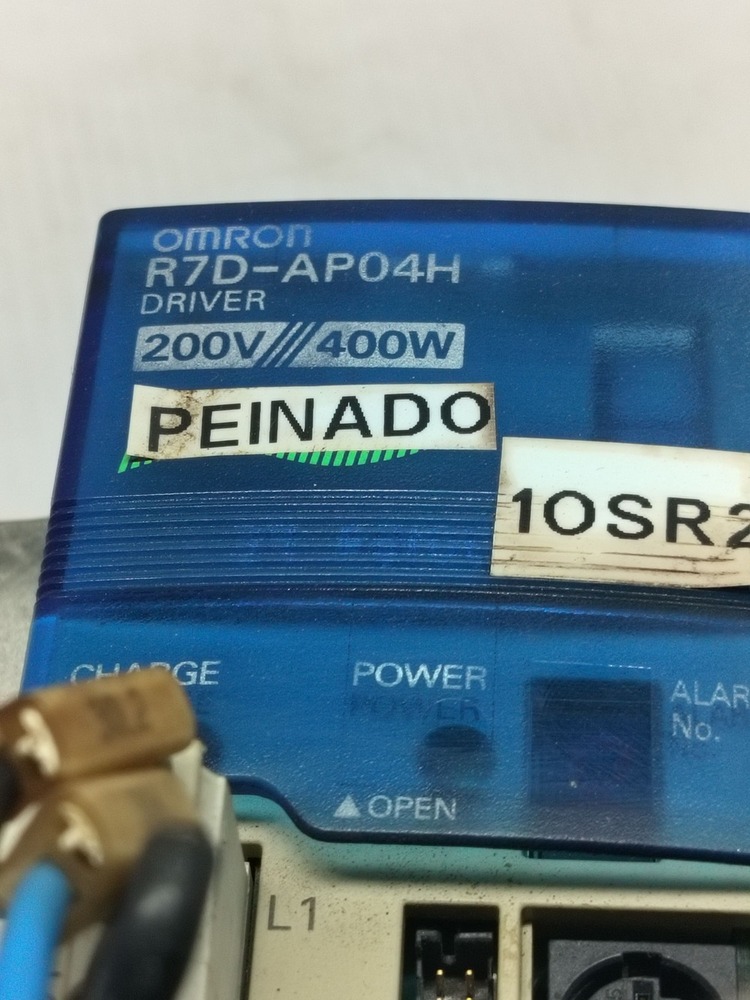

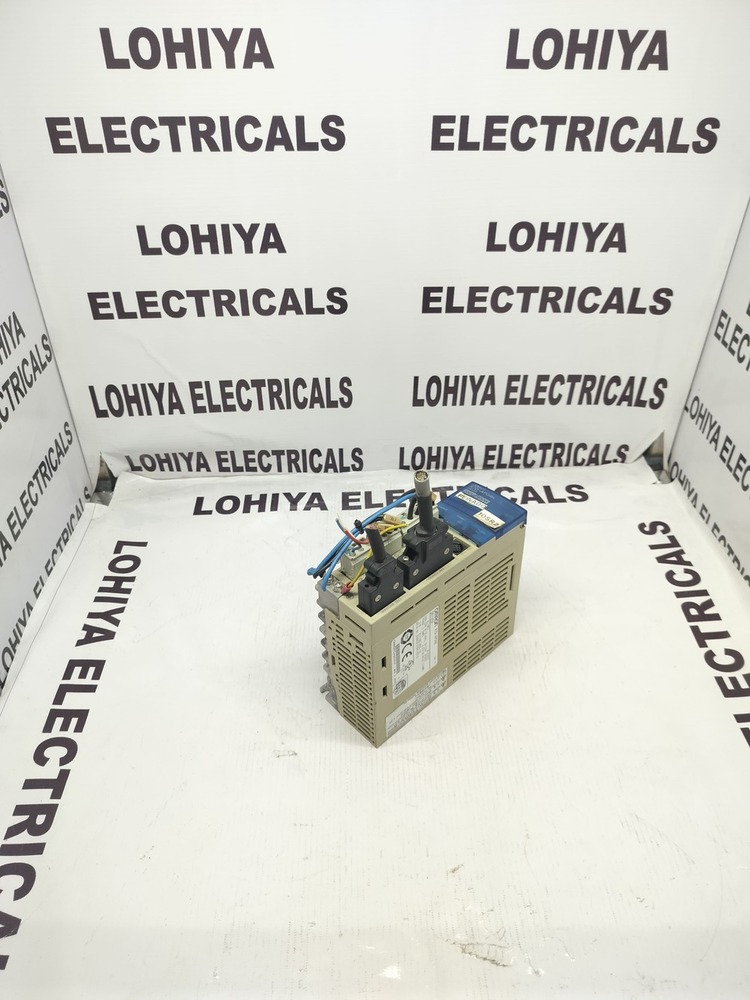

OMRON R7D-AP04H SERVO DRIVE

Get a Price/Quote

MOQ : 1 Piece

OMRON R7D-AP04H SERVO DRIVE Specification

Control System
Pulse Train / Analog Reference

Components
Microprocessor Controller, Power Stage, Interface Ports

Rated Current
2.8A

Cover Material
ABS Plastic

Thickness
Standard

Operating Voltage
200-230V AC

Cabinet Material
Reinforced ABS

Protection Class
Class I

Connectivity Type
Screw Terminal Block

Way
1 Way

Rated Insulation Voltage
250V AC

Protection Level
Over-voltage, Over-current, Over-temperature

Rated Operation Voltage
200-230V AC

Panel Type
DIN Mount

Current Rating
2.8A

Cooling System
Air Cooling

Base Material
Aluminum Alloy

Features
Compact Design, High Speed Response, Built-in Protection, Easy Installation

Product Type
Servo Drive

Material
Industrial-grade electronic components

Surface Finish
Matte & Gloss

Standard
IEC/EN 61800-5-1

Surface Color
Black / Metallic Gray

Rated Voltage
Single-phase 200-230VAC

Frequency (MHz)
50/60 Hz

Maximum Output Current
2.8A

Dimension (L*W*H)
Approx. 150 mm x 40 mm x 120 mm

Application
Servo Motor Positioning & Speed Control

IP Rating
IP20

Display Type
LED Indicators

Relative Humidity Range
10% - 90% (Non-condensing)

Model
R7D-AP04H

Mounting Style
Panel / DIN Rail

Output Power
400W

Compatible Motors
OMRON R88D, R7M Series AC Servo Motors

Control Mode
Position / Speed / Torque

Fault Indication
LED / Digital

Weight
Approx. 0.7 kg

Ambient Operating Temperature
0C to 55C

Input Signal Type
Pulse, Analog

Storage Temperature
-20C to +75C

Regeneration
Built-in Regeneration Circuit

About OMRON R7D-AP04H SERVO DRIVE

Get It Nowthe trending OMRON R7D-AP04H Servo Drive sets a pivotal benchmark in high-performance motion control. Boasting inestimable reliability, this compact drive supports OMRON R88D, R7M series AC Servo Motors, delivering 400W output. Designed for soaring productivity, it features multiple control modesPosition, Speed, and Torqueplus intuitive LED fault indication. Engineered for panel or DIN Rail mounting, its robust aluminum alloy base and ABS cover ensure industrial-grade durability. Shop Now to upgrade your automation systems efficiency and accuracy with this vital, easy-to-install solution!

Advantages & Applications of OMRON R7D-AP04H SERVO DRIVE

The OMRON R7D-AP04H Servo Drive offers outstanding precision and flexibility for modern automation. With its air-cooled system and IP20 protection rating, it thrives in demanding industrial environments. Its compact design allows effortless DIN panel mounting, making it suitable for tight spaces and various surfaces. Perfect for servo motor positioning and speed control, this drive is well-matched for use in machinery, manufacturing lines, and robotics, offering consistent, high-speed performance and reliable protection against voltage and temperature anomalies.

FOB Port, Sample Policy & Payment Terms for OMRON R7D-AP04H SERVO DRIVE

List price quotations are available on request and we ship via major FOB ports in India. The sample policy allows for limited product testing before order completion. Payment terms accommodate advance payments and standard trade practices. Dispatching takes place promptly upon order confirmation, ensuring rapid delivery and a seamless purchase experience. For further details on sample ordering and payment options, connect with our supplier or trading representatives to facilitate your industrial automation requirements efficiently.

FAQs of OMRON R7D-AP04H SERVO DRIVE:

Q: How does the OMRON R7D-AP04H Servo Drive ensure operational protection?

A: The OMRON R7D-AP04H features built-in over-voltage, over-current, and over-temperature protection systems, supported by LED and digital fault indication, safeguarding your automation processes.

Q: What motors are compatible with this servo drive model?

A: This drive is compatible with OMRON R88D and R7M Series AC Servo Motors, broadening its usability across various automation and robotic applications.

Q: Where can the OMRON R7D-AP04H be mounted and used?

A: The drive supports panel and DIN Rail mounting, making it ideal for machinery and manufacturing lines that require precise servo control.

Q: What are the main application benefits of using this servo drive?

A: It excels in applications requiring position, speed, and torque control, offering high-speed response, reliable protection, and user-friendly installation.

Q: What is the process for ordering and dispatching the OMRON R7D-AP04H?

A: Orders are processed following standard trade and payment terms. Upon completion, dispatching is initiated from primary Indian FOB ports, ensuring swift delivery.
