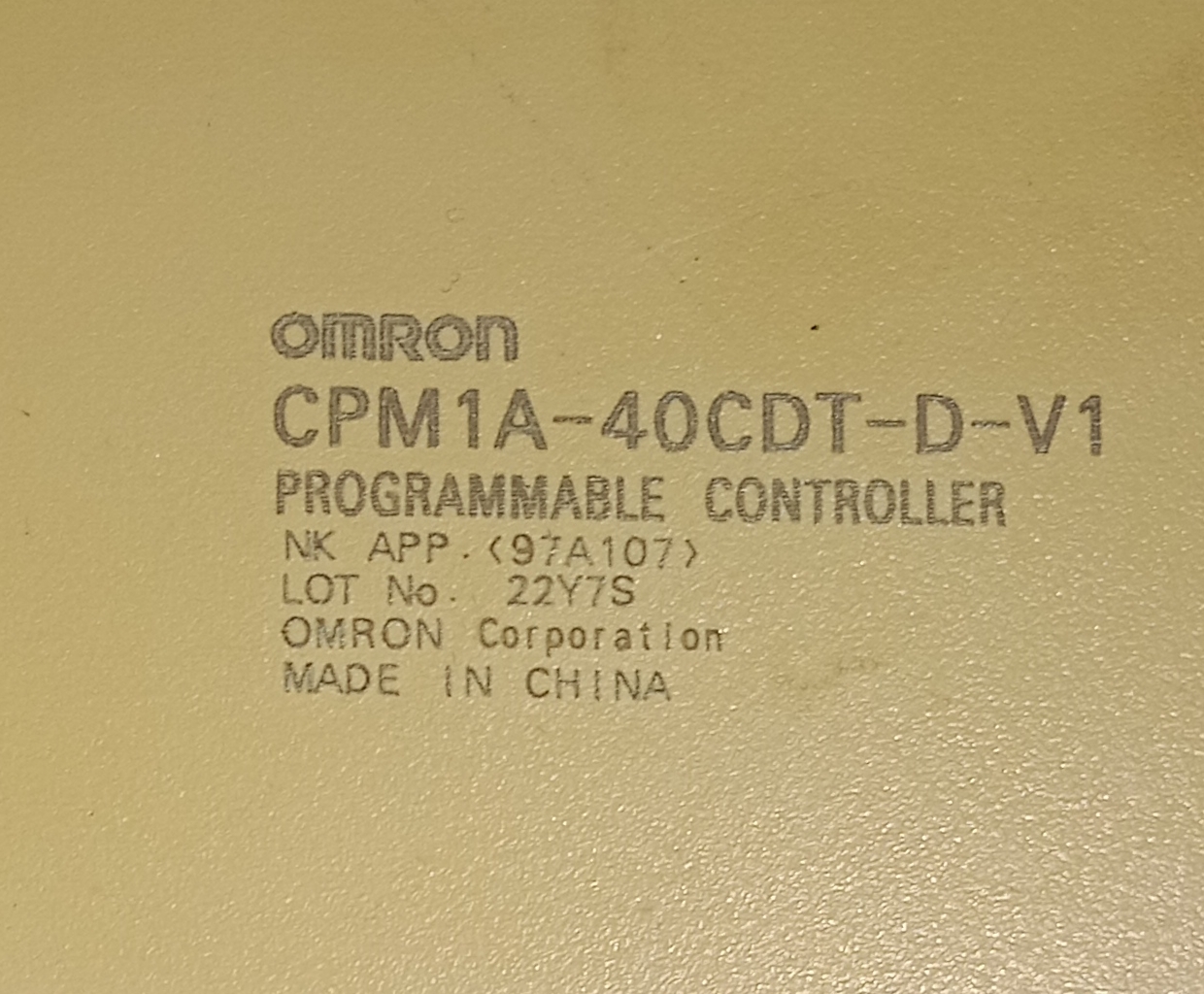

OMRON PROGRAMMABLE CONTROLLER CPM1A-40CDT-D-V1

Send Inquiry

Request To Call Back

OMRON PROGRAMMABLE CONTROLLER CPM1A-40CDT-D-V1

Get a Price/Quote

OMRON PROGRAMMABLE CONTROLLER CPM1A-40CDT-D-V1 Specification

Display
No display (external connection required)

Mounting Type
DIN Rail / Panel Mount

Features
Compact design, high-speed processing, expansion capability

Protection Level
IEC/JIS 60529, IP20

Usage & Applications
Factory automation, process automation, machine control

Phase
Single Phase

Output
16 points (Transistor output, DC: 30V, 0.5A/point)

Connectivity Type
RS-232C or Peripheral port (using suitable adapter)

IP Rating
IP20

Frequency
50/60Hz

Installation Type
DIN Rail Mounting or Screw Mounting

Current
0.7A (at 5VDC)

Product Type
Programmable Logic Controller (PLC)

Operating Temperature
0C to 55C

Working Temperature
0C to 55C

Input
24 points (24VDC, sink/source input)

Application
Industrial automation, machinery control, process control

Supply Voltage
AC 100-240V, 50/60Hz

Accuracy
Depends on application and setup

Dimension (L*W*H)
190mm x 89mm x 50mm

Weight
approx. 600g

Vibration Resistance
10 to 57 Hz, 0.075 mm amplitude

Program Capacity
2K Steps

Shock Resistance
147 m/s, 3 times each in X, Y, Z directions

Number of Inputs
24 (DC)

Expansion Support
Yes (I/O, communications, analog)

Output Type
Transistor (sink type)

Storage Temperature
-20C to 70C

Model Number
CPM1A-40CDT-D-V1

Insulation Resistance
>20 M (at 500 VDC)

Number of Outputs
16 (Transistor)

Data Memory
1K Words

Programming Method
Ladder Diagram

Operating Humidity
10% to 90% RH (non-condensing)

Response Time
Input: 10ms max, Output: 0.1ms (min)

Communication Interface
RS-232C (via CPM1A-CIF01, optional)

Input Voltage Range
20.4 to 26.4 VDC

OMRON PROGRAMMABLE CONTROLLER CPM1A-40CDT-D-V1 About

Experience the elite performance of the new OMRON PROGRAMMABLE CONTROLLER CPM1A-40CDT-D-V1now available at the lowest price. Shop now for a peerless solution in industrial automation, loaded with breathtaking features including 24 DC inputs and 16 transistor outputs, ensuring precise control and flexibility. With rapid program capacity up to 2K steps, high-speed response times, and robust expansion support, this controller stands out for reliability and smart connectivity. Enhance factory and process automation with superior insulation, shock, and vibration resistanceperfect for elite machinery control.

Elite Material Features and Peerless Applications

The CPM1A-40CDT-D-V1 boasts a compact build and high-speed processing, making it ideal for demanding industrial settings. Its robust design ensures durability, while the advanced transistor output suits precision control tasks. Used by factory managers, automation engineers, and machinery operators, this controller excels in machine control, factory, and process automation, offering seamless integration and dynamic expansion for elite operational results.

Payment Terms and Certifications for Breathtaking Valuation

Payment terms for the CPM1A-40CDT-D-V1 align with standard industry practices, ensuring transparent charge structures and reliable transport services to your location. Certified to IEC/JIS 60529, IP20, users can be confident in the products safety and reliability. With primary distribution in Indias main domestic market, you enjoy assured service, robust valuation, and prompt delivery wherever your enterprise operates.

FAQs of OMRON PROGRAMMABLE CONTROLLER CPM1A-40CDT-D-V1:

Q: How does the OMRON CPM1A-40CDT-D-V1 support industrial automation applications?

A: The CPM1A-40CDT-D-V1 provides reliable control with 24 DC inputs, 16 transistor outputs, and expansion options for I/O, communications, and analog. Its compact size and robust performance make it perfect for machinery, process, and factory automation.

Q: What is the installation process for the CPM1A-40CDT-D-V1 controller?

A: Installation is flexible, allowing for DIN rail or panel mounting. Ensure proper electrical connections and secure the unit for shock and vibration resistance. External display connections may be required based on your application.

Q: Where can users connect the CPM1A-40CDT-D-V1 for programming and communication?

A: Users can connect via peripheral port using a suitable adapter or use RS-232C communication (with CPM1A-CIF01), allowing integration with a variety of automation systems and equipment.

Q: When should I consider expanding the CPM1A-40CDT-D-V1s functionality?

A: Expansion is recommended when your automation needs exceed current input/output or when integrating enhanced communications/analog modules is required for advanced machine or process control.

Q: What benefit does the CPM1A-40CDT-D-V1 offer over other programmable controllers?

A: Its peerless combination of compact design, rapid response time, 2K program capacity, and robust environmental tolerance distinguishes it, ensuring elite reliability and performance for critical automation tasks.
