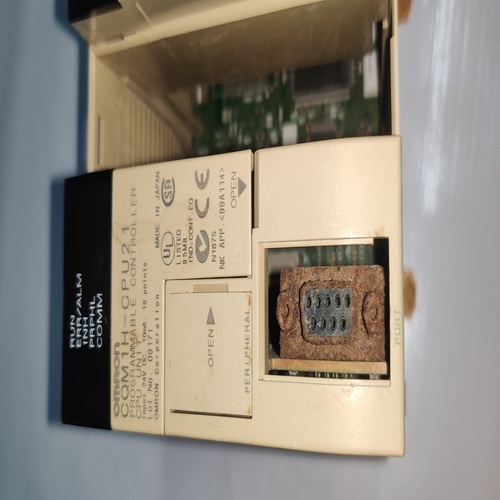

OMRON CQM1H-CPU21 PROGRAMMABLE CONTROLLER UNIT

Send Inquiry

Request To Call Back

OMRON CQM1H-CPU21 PROGRAMMABLE CONTROLLER UNIT

Get a Price/Quote

OMRON CQM1H-CPU21 PROGRAMMABLE CONTROLLER UNIT Specification

Protection Class
Class II

Panel Type
DIN Rail/Panels Mount

Rated Insulation Voltage
500V AC

Protection Level
Standard Industrial

Rated Operation Voltage
24V DC

Thickness
Standard Module Housing ~75mm

Control System
Programmable Logic Controller

Current Rating
0.7A

Cabinet Material
Plastic

Cooling System
Natural Air Cooling

Features
Compact Size, Modular, Fast Processing, High Reliability

Base Material
Plastic

Operating Voltage
24V DC

Cover Material
Plastic

Rated Current
0.7A (CPU Unit)

Way
Modular Expansion

Components
CPU, Inputs, Outputs, Communication Ports

Connectivity Type
Serial (RS-232C/RS-422A), Expansion Ports

Product Type
Programmable Controller Unit (PLC CPU)

Material
Industrial Grade Plastic, Metal Components

Surface Finish
Matte

Standard
IEC

Surface Color
Grey

Rated Voltage
24V DC

Frequency (MHz)
Internal 16 MHz

Maximum Output Current
0.5A (per I/O point)

Dimension (L*W*H)
90mm x 65mm x 80mm

Application
Industrial Automation, Process Control

IP Rating
IP20

Display Type
7-segment LED Indicators

Mounting Method
DIN Rail/Panel Mount

Cycle Time
0.25 ms/Instruction

CPU Memory
4K Words (Program), 2K Words (Data)

Power Consumption
Approx. 8W

Storage Temperature
-20°C to 75°C

Programming Software
CX-Programmer

Communication Interface
RS-232C

Operating Temperature
0°C to 55°C

Backup Memory
Battery Back-up

Model Number
CQM1H-CPU21

Relative Humidity
10% to 90% (non-condensing)

Expansion Capability
Yes, up to 3 Expansion Units

Weight
Approx. 0.5 kg

Number of I/O Points
40 (expandable)

About OMRON CQM1H-CPU21 PROGRAMMABLE CONTROLLER UNIT

Redeem exceptional automation performance with the OMRON CQM1H-CPU21 Programmable Controller Unit, highlighted by its impeccable 4K program and 2K data memory. Special modular expansion supports up to three additional units, decorated with a gorgeous yet rugged matte grey finish. Experience seamless operations with an RS-232C communication interface and fast 0.25 ms instruction cycle. This compact, industrial-grade PLC is DIN rail or panel mountable, offering high reliability for process control. Built for diverse applications, its battery backup, IP20 rating, and modular flexibility make it a superb choice for demanding environments.

Commercial Applications and Advanced Features

Ideally suited for commercial and industrial automation, the OMRON CQM1H-CPU21 addresses a variety of application media such as process control, conveyor systems, and automated assembly lines. Notable extra features include compact modular design, easy-to-read 7-segment LED indicators, and high-speed processing. Smart connectivity is provided via serial RS-232C, and the unit excels in environments requiring dependable, expandable PLC solutions with natural air cooling and convenient DIN rail or panel mounting.

Domestic Market Insights, Samples & Policy

The main domestic market for the OMRON CQM1H-CPU21 includes leading industrial hubs in India, with suppliers and traders ensuring quick arrival and distribution. Sample availability allows businesses to estimate suitability with minimal expenditure before full-scale procurement. The sample policy is designed to provide organizations a risk-free process for evaluation, enhancing confidence in the products performance and features while supporting informed decisions and cost management.

FAQs of OMRON CQM1H-CPU21 PROGRAMMABLE CONTROLLER UNIT:

Q: How does the OMRON CQM1H-CPU21 enhance operational efficiency in automation?

A: With its impeccable cycle time of 0.25 ms per instruction, the OMRON CQM1H-CPU21 delivers rapid and reliable processing, making it ideal for fast-paced automation scenarios. Its expandable modular design further ensures adaptability to evolving operational needs.

Q: What are the key commercial applications for this programmable controller unit?

A: This unit is widely used in industrial automation, process control, material handling systems, and assembly line management due to its robust communication interfaces, high memory, and modular capabilities.

Q: When is a sample of the OMRON CQM1H-CPU21 available for evaluation?

A: Samples are available upon request through authorized suppliers in India, enabling you to assess the products compatibility and features before making a larger expenditure.

Q: Where can the OMRON CQM1H-CPU21 be mounted?

A: The controller unit is designed for versatile mounting on DIN rails or panels, enhancing its applicability across different industrial setups and installation preferences.

Q: What is the process for expanding the I/O capability of the CQM1H-CPU21?

A: Expansion is straightforwardup to three expansion units can be added, allowing you to easily increase the number of I/O points as operational demands grow.

Q: How does the backup memory feature benefit usage?

A: Equipped with a battery backup, the unit preserves critical program and data memory during power disruptions, safeguarding your operations and minimizing potential downtime.
