NORDAC SK 535E-222-340-A INVERTER DRIVES

Send Inquiry

Request To Call Back

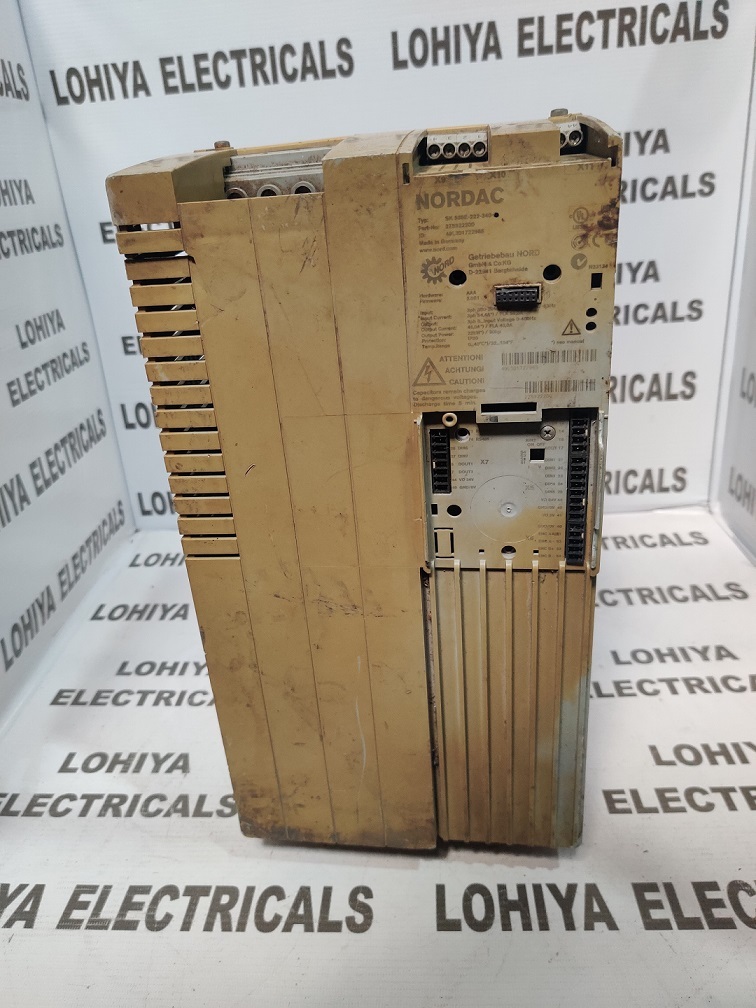

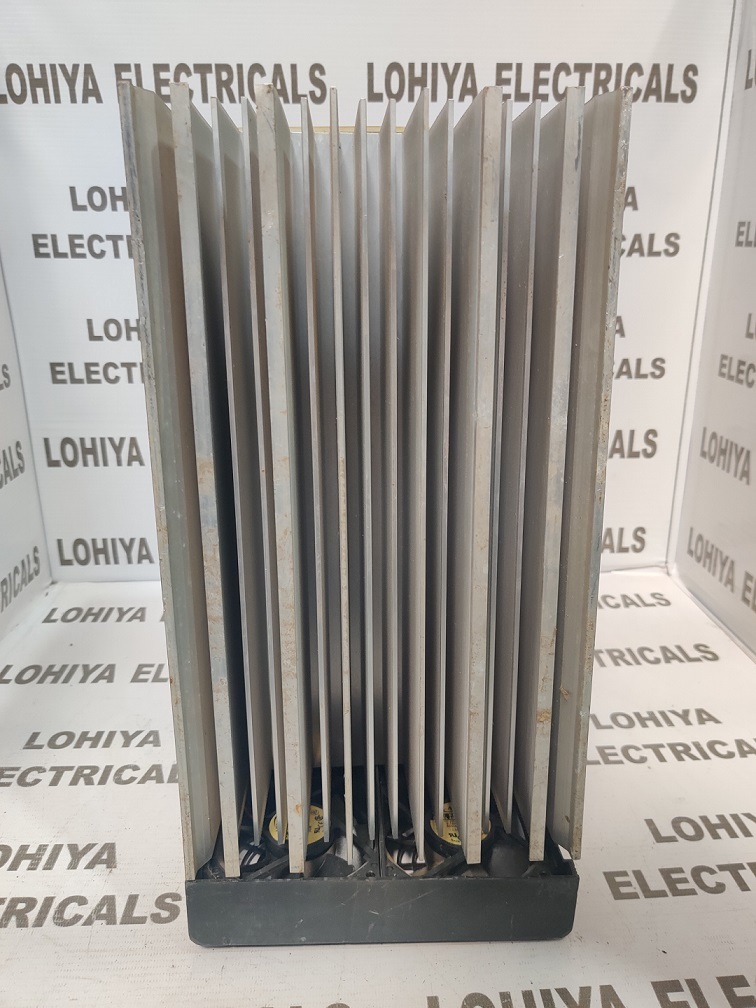

NORDAC SK 535E-222-340-A INVERTER DRIVES

Get a Price/Quote

NORDAC SK 535E-222-340-A INVERTER DRIVES Specification

Power Supply
Three-phase 380-480 V AC

Connector Type
Screw terminal

Output Current
5.4 A

Working Temperature
-10C to +50C

Rated Current
5.4 A

Application
Industrial automation, conveyor systems, pumps, fans

Output Type
Three-phase

Current Range
0.5 7 A

Features
Integrated PLC, USB parameterization, Safe Torque Off, diagnostic options

Cooling Method
Forced air cooling

Noise Level
<55 dB(A)

Operating Temperature
-10C to +50C

Phase
Three-phase

Power Factor
>0.98

Rated Power
2.2 kW

Product Type
INVERTER DRIVES

Output Power
2.2 kW

Output Frequency
0 599 Hz

Input Voltage
380-480 V AC

Voltage Protection
Built-in overvoltage/undervoltage protection

Efficiency
Up to 98%

Material
Industrial grade plastic & metal

Line Regulation
<1%

Storage Temperature
-25C to +60C

Weight
Approx. 4.5 kg

Display Type
LED/LCD for status and diagnostics

Control Method
V/f control, Sensorless vector control

Start/Stop Function
Remote and local

Analog Inputs/Outputs
2 analog inputs, 1 analog output

Humidity Range
5% to 95% non-condensing

Mounting Type
Wall or cabinet mount

Programmable Logic Functions
Available via integrated PLC

Motor Compatibility
IEC/NEMA standard motors

Protection Class
IP20

Firmware Update Capability
Yes, via USB/PC

Communication Interfaces
Ethernet, CANopen, Profibus, Modbus

EMC Compliance
EN 61800-3

Digital Inputs/Outputs
6 digital inputs, 2 digital outputs

Parameterization
Via USB, PC software, or keypad

Service/Diagnostics
Status LEDs, error codes, event log

Safety Functions
Safe Torque Off (STO), motor overload protection

Braking Chopper
Integrated

About NORDAC SK 535E-222-340-A INVERTER DRIVES

Grab the laureate of motor controlthe NORDAC SK 535E-222-340-A Inverter Drive. Procure unrivaled performance with prime adaptability for IEC/NEMA motors and rarefied protection via IP20 rating. Advanced control methods, integrated safety features like Safe Torque Off, and interactive LED/LCD diagnostics mark this drive as the industry gold standard. At an unbeatable price, it features robust Ethernet, CANopen, and Modbus interfaces, all within a durable plastic and metal housing. Wall or cabinet mounting, high efficiency up to 98%, and comprehensive programmability make it the perfect solution for industrial automation, conveyors, pumps, or fans.

Versatility for Specialized and General Applications

The NORDAC SK 535E-222-340-A Inverter Drive is crafted from industrial-grade plastic and metal, ensuring long-lasting durability. Suited for both specific usessuch as conveyor systems, pumps, and fansand general automation, its adaptable design meets diverse industrial needs. The integrated PLC and flexible mounting options allow seamless deployment across various manufacturing environments, while reliable performance guarantees operational continuity in everything from processing plants to logistics hubs.

Certifications and Supply with Reliable Service

Certified with EMC compliance (EN 61800-3) and full voltage protection, the NORDAC SK 535E-222-340-A ensures reliability and safety in the main domestic market and beyond. With a robust supply ability and secure shipping standards, each unit reaches you in pristine condition. The official list price reflects its advanced technology, while exchange options are available through recognized suppliers and traders to guarantee satisfaction in every procurement process.

FAQs of NORDAC SK 535E-222-340-A INVERTER DRIVES:

Q: How can I update the firmware on the NORDAC SK 535E-222-340-A Inverter Drive?

A: Firmware updates for the NORDAC SK 535E-222-340-A are performed via USB using the supplied PC software, ensuring your drive remains current with the latest features and improvements.

Q: What applications are best suited for this inverter drive?

A: This inverter drive is ideal for industrial automation, conveyor systems, pumps, and fans, and is compatible with IEC and NEMA standard motors across various sectors.

Q: When should I use the Safe Torque Off (STO) function?

A: You should activate the Safe Torque Off function when maintenance or emergency stops are required to ensure operator safety and prevent accidental motor startups.

Q: Where can I mount the NORDAC SK 535E-222-340-A drive?

A: The unit is designed for flexible wall or cabinet mounting, providing efficient integration into control panels or standalone installations within your facility.

Q: What is the process for parameterizing and configuring the drive?

A: Parameterization can be completed via USB, PC software, or the keypad, allowing rapid setup, customized configurations, and diagnostics through user-friendly interfaces.
