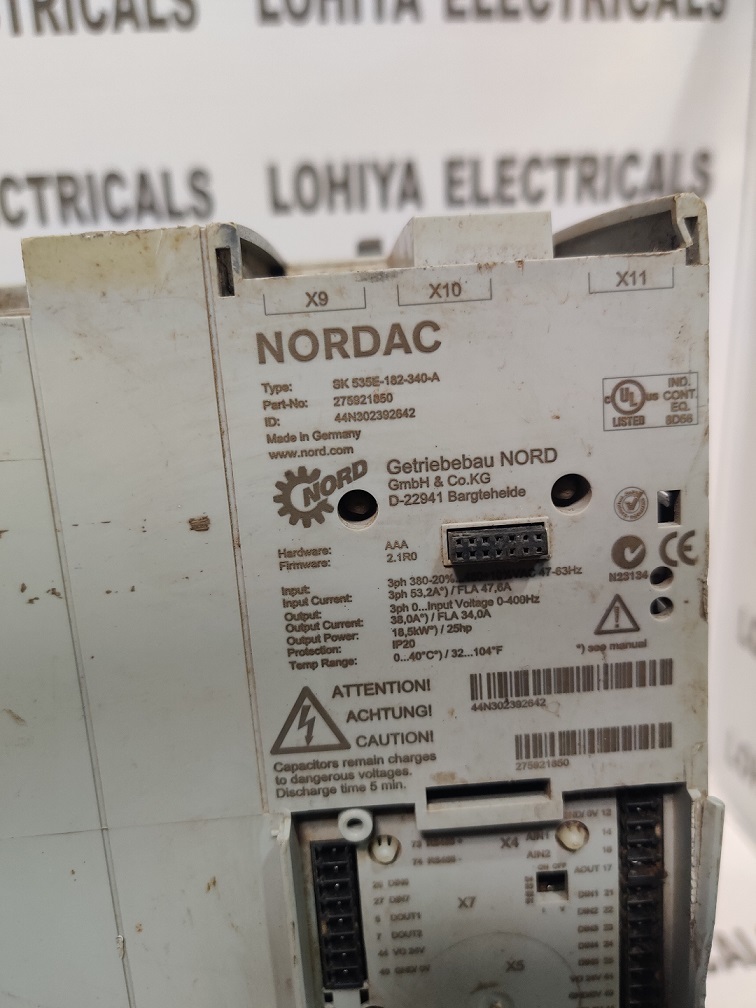

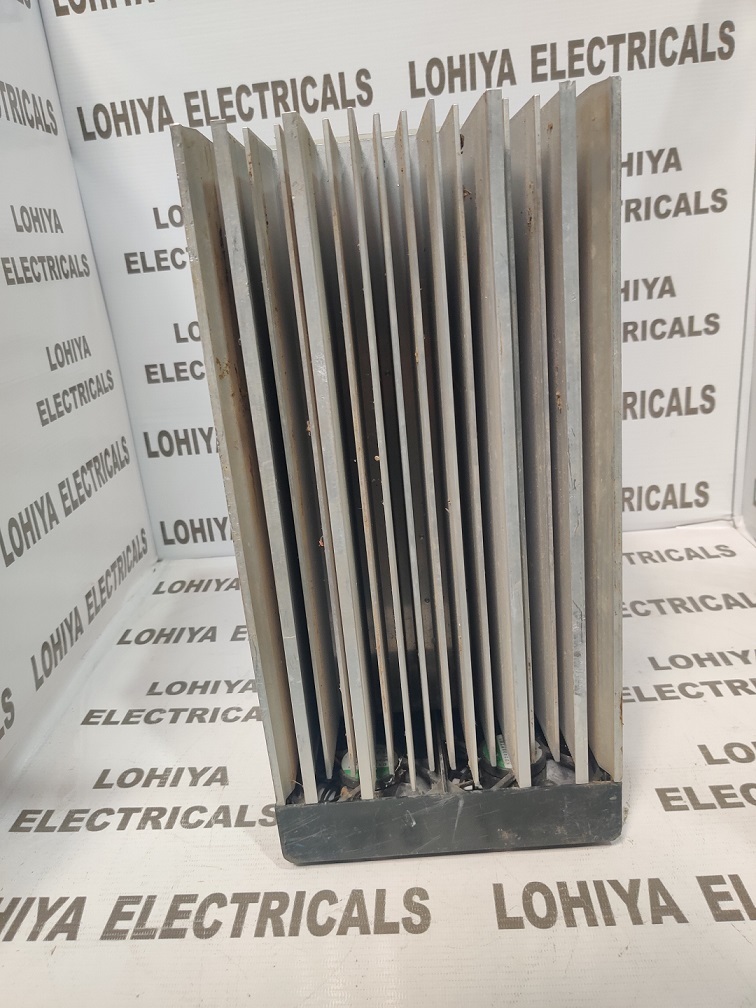

NORDAC SK 535E-182-340-A INVERTER DRIVES

Get a Price/Quote

NORDAC SK 535E-182-340-A INVERTER DRIVES Specification

Rated Power
18.5 kW

Noise Level
<68 dB(A)

Application
Industrial motor control, conveyor systems, pumps, fans

Working Temperature
-10C to +50C

Cooling Method
Forced air cooling

Phase
Three-phase

Power Factor
>0.95

Output Type
Three-phase output

Current Range
0-38 A

Operating Temperature
-10C to +50C

Output Current
38 A

Rated Current
38 A

Features
Integrated PLC, multi-protocol support, extensive parameterization, built-in braking chopper

Connector Type
Screw terminals

Power Supply
AC supply, 340-528 V

Product Type
Inverter Drive

Output Power
18.5 kW

Output Frequency
0-599 Hz

Input Voltage
3~ 340-528 V AC

Voltage Protection
Overvoltage, undervoltage protection integrated

Efficiency
High (up to 98%)

Material
Industrial grade enclosure, metal

Line Regulation
<0.5%

Storage Temperature
-25C to +70C

Weight
Approx. 21 kg

About NORDAC SK 535E-182-340-A INVERTER DRIVES

Experience new possibilities in industrial automation with the NORDAC SK 535E-182-340-A Inverter Drive, offering access to rarefied performance and transcendent control. Engineered for supreme durability, this IP55-protected drive features an integrated LED/LCD display and adaptable fieldbus interfaces, including Ethernet/IP and PROFIBUS. The built-in PLC programming, advanced safety (STO), and multi-protocol connectivity foster ephemeral setup times and seamless integration. Supporting induction, synchronous, and PM motors, it achieves high efficiency (up to 98%) and robust surge, vibration, and voltage protection, making it the definitive choice for rarefied industrial environments.

Extra Features and Versatility Across Applications

The NORDAC SK 535E-182-340-A INVERTER DRIVE is equipped with an integrated PLC, comprehensive braking chopper, and advanced fieldbus connectivity, elevating operational flexibility. Its adjustable acceleration and deceleration time, while supporting multiple digital/analog inputs, suits diverse industrial tasks such as conveyor systems, pumps, and fans. Designed for both specific automation challenges and general industrial use, it excels in providing rare access to efficient control and protection in demanding environments.

Domestic Market Reach, Certifications, and Order Fulfillment

NORDAC SK 535E-182-340-A INVERTER DRIVES offer supreme reliability in domestic markets, backed by EMC compliance (EN 61800-3) and global certifications. Payment terms are flexible, streamlining order processing for seamless transactions. When estimating delivery timelines, suppliers consider the customers application needs to ensure rapid deployment. Clients can confidently order these drives for their projects, knowing stringent quality standards and certifications accompany every unit delivered.

FAQs of NORDAC SK 535E-182-340-A INVERTER DRIVES:

Q: How does the NORDAC SK 535E-182-340-A ensure safety during operation?

A: The drive includes Safe Torque Off (STO) functionality, integrated short-circuit protection, overvoltage and undervoltage safeguards, and compliance with strict EMC and vibration standards to guarantee operator and equipment safety.

Q: What types of motors are compatible with the SK 535E-182-340-A Inverter Drive?

A: This inverter drive accommodates induction motors, synchronous motors, and permanent magnet (PM) motors, making it highly adaptable for a wide range of industrial applications.

Q: When is parameter backup necessary, and how is it achieved?

A: Parameter backup is essential for maintenance and rapid recovery during system changes. The SK 535E-182-340-A offers EEPROM-based parameter storage, allowing secure and quick restoration of critical settings.

Q: Where can the NORDAC SK 535E-182-340-A be installed?

A: The IP55-protected enclosure and wall-mounting support enable installation in harsh or dusty industrial environments, ensuring continued operation across a broad temperature and humidity range.

Q: What benefits does the integrated PLC provide for process optimization?

A: The built-in PLC facilitates advanced machine control and automation, reducing setup times while supporting extensive parameterization, thus boosting process efficiency and real-time responsiveness.

Q: How does order processing and delivery work for this product?

A: Order processing is streamlined through flexible payment options and efficient logistics. After placing an order, the delivery estimate is provided based on current stock and customer location to ensure timely fulfillment.
