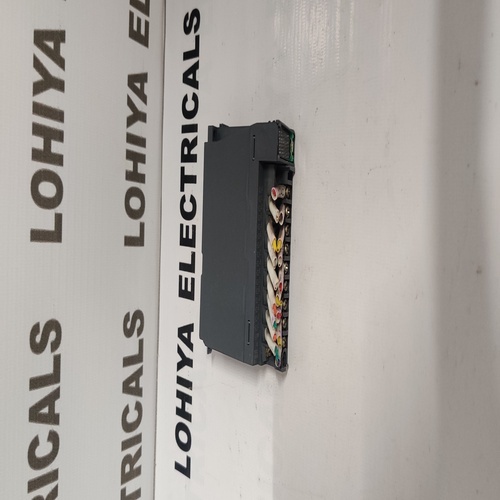

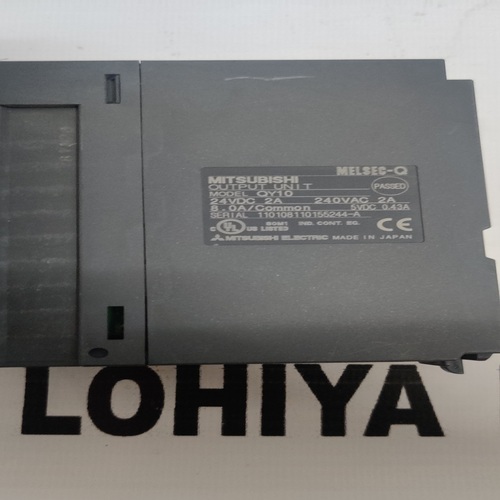

MITSUBISHI QY10 DIGITAL OUTPUT MODULE

Get a Price/Quote

MITSUBISHI QY10 DIGITAL OUTPUT MODULE Specification

Power Supply
From PLC rack bus

Operating Temperature
0C to +55C

Output Type
Source (NPN), 12 Points

Cooling Method
Natural Air Cooling

Connector Type
Screw Terminals

Features
Fast Switching, Fuse Protection, Compact Size

Working Temperature
0C to +55C

Output Current
0.5A per point, 4A common terminal max

Rated Current
0.5A per output

Application
Industrial Automation, PLC Systems

Product Type
Digital Output Module

Input Voltage
Rated 5V DC (from PLC bus)

Voltage Protection
Fuse Protected

Material
Plastic, Metal Components

Storage Temperature
-25C to +75C

Weight
Approx. 170g

Output Points
12 channel outputs

Compatibility
Mitsubishi MELSEC-Q Series PLC

Model
QY10

ON Voltage Drop
1.2V DC or less

Response Time
OFFON: 1.5ms or less, ONOFF: 1.5ms or less

Isolation
Photocoupler Isolation

Mounting Type
DIN Rail or Panel Mount

Dimensions
98mm (H) x 27.4mm (W) x 90mm (D)

Maximum Output Voltage
30V DC

About MITSUBISHI QY10 DIGITAL OUTPUT MODULE

The MITSUBISHI QY10 DIGITAL OUTPUT MODULE stands as an elite, best-seller in the realm of industrial automation. Designed for enviable compatibility with MELSEC-Q Series PLCs, this module features soaring efficiency with 12 channel outputs, rapid 1.5ms switching, and fuse-protected voltage security. Its spectacular DIN rail or panel mounting option and compact size ensure effortless installation. Boasting robust photocoupler isolation, durable plastic and metal construction, and natural air cooling, the QY10 delivers markdown precision and steadfast performance, making it the superior choice for both new and existing PLC systems.

Commercial Use & Application Scope

The MITSUBISHI QY10 DIGITAL OUTPUT MODULE is highly favored for commercial and industrial automation. Commonly used in PLC systems across manufacturing plants, it excels in process control, conveyor management, and robotics. Its robust output and reliable switching make it suitable for power distribution, packaging machines, and assembly lines. Other applications include OEM machinery and facility management systems, where dependable digital output is required for smooth and efficient operations.

Supply Ability & Sample, Payment Terms

With an impressive supply rate, the MITSUBISHI QY10 DIGITAL OUTPUT MODULE is readily available for shipment throughout India. Suppliers ensure customers receive the lowest prices and prompt shipped goods. Sample units are often available for initial assessment before placing bulk orders. Payment terms are flexible, catering to business needs and fostering efficient transactions. Buyers can be confident in the consistent availability and competitive pricing of this module for all their automation projects.

FAQs of MITSUBISHI QY10 DIGITAL OUTPUT MODULE:

Q: How can I mount the Mitsubishi QY10 Digital Output Module in my setup?

A: This module supports both DIN rail and panel mounting, allowing for straightforward integration into standard PLC cabinets or customized control panels.

Q: What are the main benefits of using the QY10 Digital Output Module in industrial automation?

A: The QY10 offers fast response times, robust output protection, compact size, and enviable reliability; ideal for diverse automation applications requiring consistent and efficient digital output.

Q: When should the fuse in the module be checked or replaced?

A: The fuse should be inspected during regular maintenance or in the event of output failures, ensuring ongoing voltage protection and safe operation.

Q: Where is the QY10 module commonly utilized?

A: It is widely used in industrial settings such as manufacturing plants, assembly lines, packaging facilities, and other environments where automation and controlled digital output are essential.

Q: What process is required to connect the QY10 module to a PLC system?

A: Simply connect the module to the Mitsubishi MELSEC-Q series PLC rack bus, secure wiring via screw terminals, and power it directly from the PLC bus to enable rapid commissioning.
