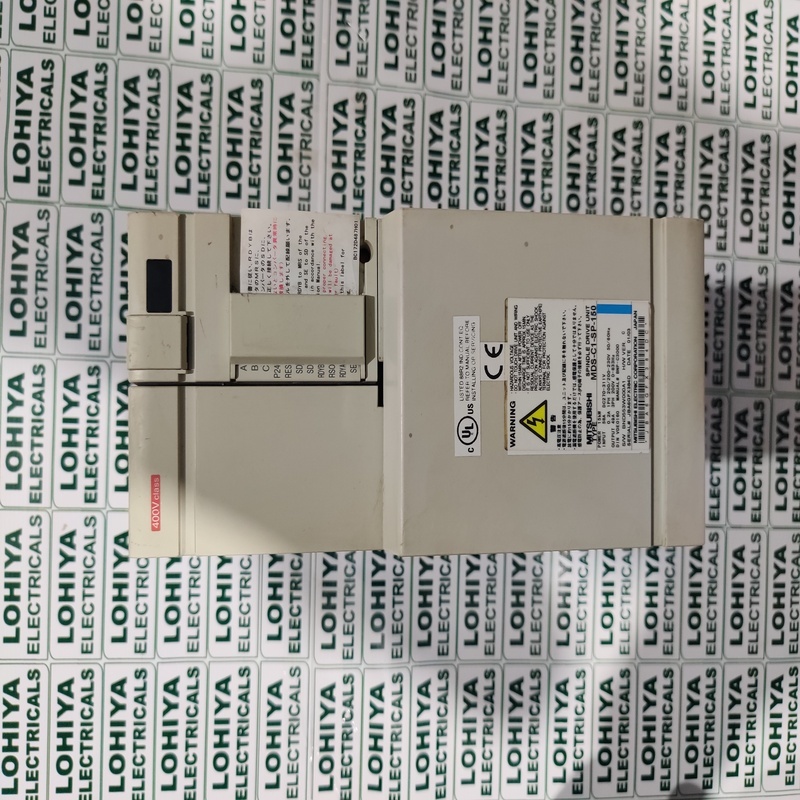

MITSUBISHI MDS-C1-SP-150 SERVO DRIVE

Get a Price/Quote

MITSUBISHI MDS-C1-SP-150 SERVO DRIVE Specification

Output Type
Analog/Pulse

Output Current
Rated 6.0A

Rated Power
150W

Cooling Method
Forced Air Cooling

Power Supply
AC 200-230V

Features
Compact Size, Integrated Protections, Fast Response

Power Factor
>0.95

Noise Level
Low Noise Design

Connector Type
Standard Industrial Terminal

Rated Current
6.0A

Current Range
0-6A

Application
CNC Machines, Automation Systems

Phase
3 Phase

Operating Temperature
0°C to +55°C

Working Temperature
0°C to +55°C

Product Type
Servo Drive

Output Power
150W

Output Frequency
0-400 Hz

Input Voltage
3-phase 200-230V AC

Voltage Protection
Overvoltage/Undervoltage protection integrated

Efficiency
Up to 95%

Material
Industrial Grade Components

Line Regulation
±1% or less

Storage Temperature
-20°C to +65°C

Weight
Approx. 6.8 kg

Compatible Motors
Mitsubishi AC Servo Motors (HF/KF series)

Ambient Humidity
10% to 90% (non-condensing)

Dimensions
355mm (H) x 150mm (W) x 210mm (D)

Response Frequency
Up to 1 kHz

Input Frequency
50/60 Hz

Position Feedback
Encoder Supported

Mounting Type
Panel Mount

Display Type
Status LED Indicators

Control Method
Digital Servo Control

Protection Grade
IP20

Communication Interface
MELSEC Network, RS-232C

Isolation
Optical Isolation for Control Signals

Series
MDS-C1-SP-150

MITSUBISHI MDS-C1-SP-150 SERVO DRIVE About

Utilise the offer on the MITSUBISHI MDS-C1-SP-150 SERVO DRIVEcrafted for the virtuoso seeking immaculate precision in automation. With prime features such as digital servo control, MELSEC and RS-232C communication, and a compact panel mount design, performance is assured. Shop now for a limited time and elevate your operations with 150W output power, robust IP20 protection, fast response, and optical isolation. Suited for CNC machines and automation systems, this industrial-grade component merges reliability with efficiency for seamless integration into your workflow.

Outstanding Features & Versatile Applications

The MITSUBISHI MDS-C1-SP-150 SERVO DRIVE delivers exceptional performance with features like status LED indicators, overvoltage and undervoltage protection, and fast response up to 1 kHz. It is compatible with Mitsubishi AC servo motors, includes both analog and pulse output, and supports encoder feedback for high-precision control. Ideal for CNC machines and diverse automation systems, it excels in applications requiring stable motion and reliable feedback across industrial and manufacturing media.

Supply Ability, Export Markets & Payment Terms

Our supply ability ensures prompt fulfillment of your purchase order, with robust stock to support both small and large-scale needs. The main export markets include Asia, Europe, and the Middle East, ensuring global availability with secure shipping and accurate delivery estimates. Payment terms are flexible, accommodating direct transfer or L/C, making the procurement process smooth and reliable for every client.

FAQs of MITSUBISHI MDS-C1-SP-150 SERVO DRIVE:

Q: How is the MITSUBISHI MDS-C1-SP-150 SERVO DRIVE typically installed?

A: The servo drive is designed for panel mount installation, making integration straightforward for automation professionals and suitable for most control cabinets.

Q: What benefits does the digital servo control method offer?

A: Digital servo control provides high-precision, real-time adjustments, which results in smooth operations, optimum accuracy, and enhanced stability in automation and CNC applications.

Q: When should this servo drive be used in industrial automation systems?

A: This drive is ideal when you require fast response, compact design, and reliable performance in environments such as CNC machines, packaging systems, and automated assembly lines.

Q: What communication interfaces are supported by this servo drive?

A: The unit supports MELSEC Network and RS-232C interfaces, allowing flexible yet robust connectivity with a range of industrial controllers.

Q: Where can the servo drive be applied aside from CNC machinery?

A: Apart from CNC machines, this servo drive fits into robotics, conveyor automation, and automatic inspection equipment requiring precise motor control.

Q: What is the process for placing a purchase order and shipment?

A: Simply submit your purchase order. Once confirmed, secure shipping arrangements are made and you receive a delivery estimate based on your location and order size.
