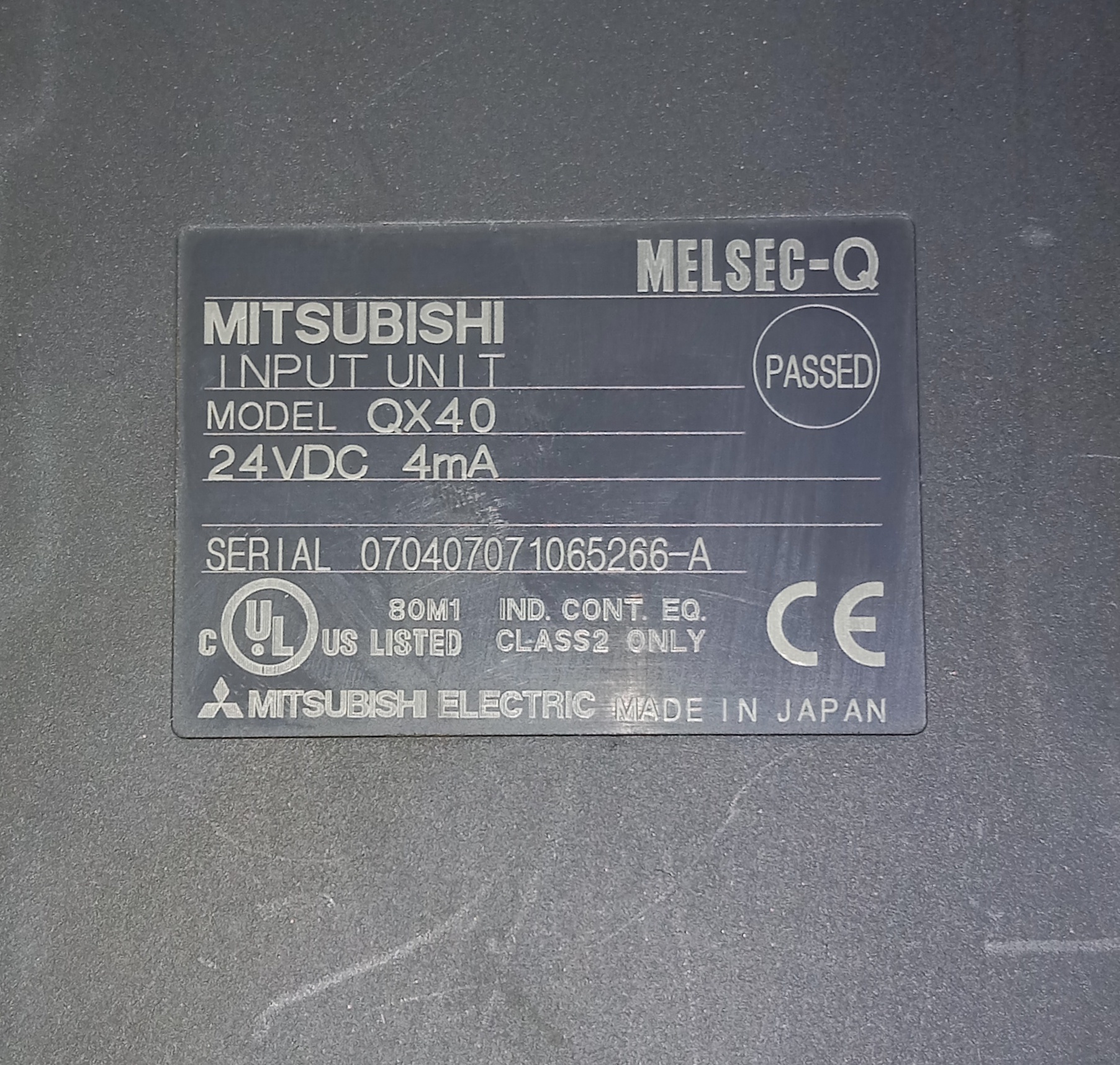

MITSUBISHI INPUT MODULE QX40

Get a Price/Quote

MITSUBISHI INPUT MODULE QX40 Specification

Connector Type
Screw type terminal

Humidity %
5% to 95% RH, non-condensing

Feature
16 isolated input channels, fast response time

Surface Finish
Matte

Mounting Type
DIN Rail Mounting

Operating Temperature
0C to +55C

Efficiency
High efficiency digital input processing

Shape
Rectangular

Insulation Material
Plastic (ABS/Polycarbonate blend)

IP Rating
IP20

Product Type
Digital Input Module

Application
PLC Automation Systems

Protection Level
Basic Circuit Protection

Frequency (MHz)
DC module; NA

Rated Voltage
24 V DC

Energy Consumption
3.8 mA per point (24V DC)

Color
Black & Gray

Dimension (L*W*H)
98 mm x 27.4 mm x 90 mm

Weight
0.08 kg (approx.)

Input Voltage
24V DC, 5mA per point

Size
Compact

Material
High-quality industrial plastic

Connection Type
Screw terminal block

Module Power Supply
Supplied from base unit

Number of Input Points
16

Input Signal Type
Sink/source input

Response Time
ON: 10 ms max, OFF: 10 ms max

Compatible PLC Series
Mitsubishi MELSEC-Q series

Isolation Resistance
DC500V, 50M

Dielectric Strength
560V AC for 1 min between external terminal and module

Current Leakage
1.5mA or less

Applicable Wire Size
0.3 mm to 2.0 mm

Storage Temperature
-25C to +75C

MITSUBISHI INPUT MODULE QX40 About

Introducing the new release MITSUBISHI INPUT MODULE QX40your first-class solution for precise digital input detection in PLC automation systems. Soaring in popularity among industry leaders, this module boasts 16 isolated input channels, a compact and rugged rectangular design, and exceptional electrical protection. With remarkable response times and high efficiency, its crafted from industrial-grade plastic for durability. Order now or add to cart to experience exceptional quality and reliability compatible with Mitsubishi MELSEC-Q seriesideal for modern control architectures.

Application Versatility and Standout Features

The MITSUBISHI INPUT MODULE QX40 excels in factory automation, conveyors, process control, and more, delivering reliable performance wherever precise input management is required. Its primary competitive advantages include high isolation resistance, fast 10ms response times, and robust plastic construction. Application is straightforward: DIN rail mounting with screw terminal connections ensures easy, secure installation. Users benefit from its compact size, efficient energy consumption, and seamless integration with Mitsubishi MELSEC-Q PLCs, setting this module apart as a first-choice industrial input solution.

Domestic Market Focus and Packaging Protocol

The QX40 finds its main domestic market within India, with established suppliers and traders efficiently coordinating delivery nationwide and into export markets. Units are handed over in sturdy packaging designed to safeguard the matte-finished module during transit. Payment terms are flexible, accommodating both immediate and scheduled transactions. Customers appreciate the streamlined process from order placement to receipt, ensuring timely delivery and product integrity for every automation project.

FAQs of MITSUBISHI INPUT MODULE QX40:

Q: How do I install the MITSUBISHI INPUT MODULE QX40 in my automation system?

A: The module is designed for DIN rail mounting and features screw terminal block connections. Simply attach it to your control panels DIN rail and secure wiring as per your system configuration.

Q: What applications are best suited for the QX40 input module?

A: The QX40 is ideal for PLC automation in manufacturing, industrial process control, and logistics systems where reliable, fast digital input collection is required.

Q: When should I choose the QX40 module over other input modules?

A: Choose the QX40 when you need 16 isolated input points, rapid response times, and superior insulation performance, especially when working with Mitsubishi MELSEC-Q series PLCs.

Q: Where can I order the MITSUBISHI QX40 module in India?

A: You can order the QX40 module from authorized Mitsubishi suppliers and traders throughout India or add it to your cart on reputable industrial automation e-commerce websites.

Q: What are the primary benefits of using the QX40 in a PLC setup?

A: The QX40 offers high efficiency, robust circuit protection, compact design, and easy installation, ensuring accurate and stable input management for PLC systems.

Q: How is the MITSUBISHI QX40 packaged for delivery?

A: Each module is handed over in secure, industry-standard packaging to guarantee protection against damage during delivery, both domestically and for export markets.
