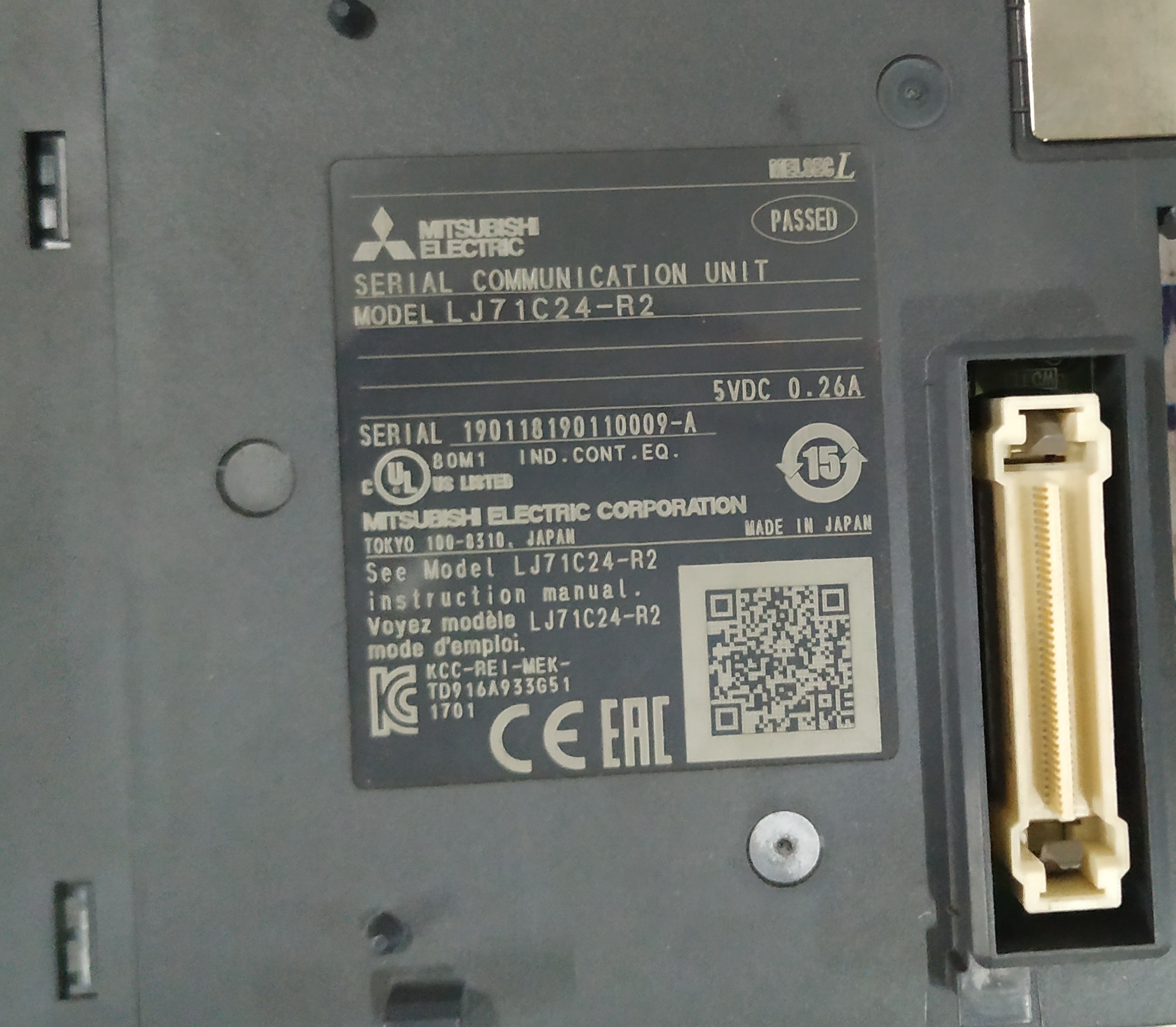

MITSUBISHI COMMUNICATION MODULE LJ71C24-R2

Get a Price/Quote

MITSUBISHI COMMUNICATION MODULE LJ71C24-R2 Specification

Connector Type
D-Sub 9-pin (RS-232C), Terminal block (RS-422)

Shape
Rectangular

Overheating Protection
NO

Feature
Modular, Easy Integration, Multi-protocol

Operating Temperature
0C to 55C

IP Rating
IP20

Mounting Type
DIN Rail Mounting

Surface Finish
Matte

Efficiency
High

Insulation Material
Plastic

Humidity %
5-95% RH (non-condensing)

Product Type
Communication Module

Application
Industrial Automation, PLC Communication

Protection Level
Standard

Rated Voltage
24 V DC

Energy Consumption
Low

Output Type
RS-232C / RS-422 (Selectable)

Color
Black

Dimension (L*W*H)
98 x 27.4 x 90 mm

Weight
0.25 kg

Size
Standard Q series module size

Input Voltage
24 V DC

Material
Plastic, Metal

Connection Type
Screw Terminal

Power Supply Voltage
24 VDC (from base unit)

Model Number
LJ71C24-R2

Baud Rate
Up to 115.2 kbps

Vibration Resistance
IEC 60068-2-6 compliant

Status Indicators
Status LEDs

Supported Protocols
CC-Link, MODBUS, transparent communication

Storage Temperature
-25°C to +75°C

Series
MELSEC-Q Series

Module Type
Communication Module (Serial Interface)

Maximum Power Consumption
5W

Program Capacity
N/A (Depends on PLC)

Serial Interface
RS-232C/RS-422

About MITSUBISHI COMMUNICATION MODULE LJ71C24-R2

Experience gilt-edged industrial automation with the MITSUBISHI COMMUNICATION MODULE LJ71C24-R2, a top-rated module featuring flawless serial interface capabilities via RS-232C/RS-422. Its masterful multi-protocol supportincluding CC-Link, MODBUS, and transparent communicationensures easy integration and outstanding flexibility for your MELSEC-Q Series PLC. With competitive pricing from leading suppliers in India, this highlighted module offers a matte-finished, modular design that ensures low energy consumption and reliable performance. Vibration-resistant and IP20-rated, it is engineered for high efficiency, seamless connectivity, and optimal operation in demanding environments.

Versatile Industrial Applications and Usage Surface

MITSUBISHI COMMUNICATION MODULE LJ71C24-R2 is crafted for diverse industrial automation applications. Its robust design matches standard Q series dimensions and supports PLC communication across manufacturing, process control, and automated production lines. The module efficiently operates on metallic surfaces within control cabinets, thanks to its DIN rail mounting and modular shape. Its sophisticated, flexible usage supports RS-232C and RS-422 protocols, delivering reliable communication tailored for professional, continuous operation in automated industrial settings.

Packaging, Shipping, and Supply Details

Each module undergoes rigorous valuation before secure packaging in anti-static material, ensuring flawless components on arrival. With a steady supply ability and prompt transportation arrangements, your orders are shipped expediently anywhere in India. Sample units can be provided upon request to facilitate preliminary evaluation and integration with your systems. Dependable packaging and well-managed logistics reduce risk, guaranteeing you receive genuine, expertly shipped products ready for immediate deployment in your automation solutions.

FAQs of MITSUBISHI COMMUNICATION MODULE LJ71C24-R2:

Q: How does the LJ71C24-R2 module benefit industrial automation systems?

A: The LJ71C24-R2 module enhances industrial automation by delivering masterful, multi-protocol communication support, enabling seamless PLC data exchange, flexible connectivity, and consistent system integration across varied automation environments.

Q: What protocols are supported by the MITSUBISHI LJ71C24-R2 communication module?

A: This module supports CC-Link, MODBUS, and transparent communication protocols over RS-232C/RS-422 serial interfaces, making it adaptable to a broad range of automation devices and network architectures.

Q: Where can the LJ71C24-R2 module be installed?

A: The module is designed for DIN rail mounting inside control panels, typically within industrial settings that require PLC-based communication. Its compact, modular shape and standard size ensure easy installation in MELSEC-Q Series setups.

Q: What are the key usage scenarios for this communication module?

A: Ideal scenarios include industrial process control, automated manufacturing lines, and integration of various PLC systems that necessitate reliable serial communications. Its dual interface capability maximizes usage flexibility.

Q: How is the transportation and packaging of the LJ71C24-R2 module managed?

A: Modules are securely packaged in anti-static, protective materials and shipped through reliable transportation partners. Each unit undergoes valuation checks to maintain product integrity during delivery.
