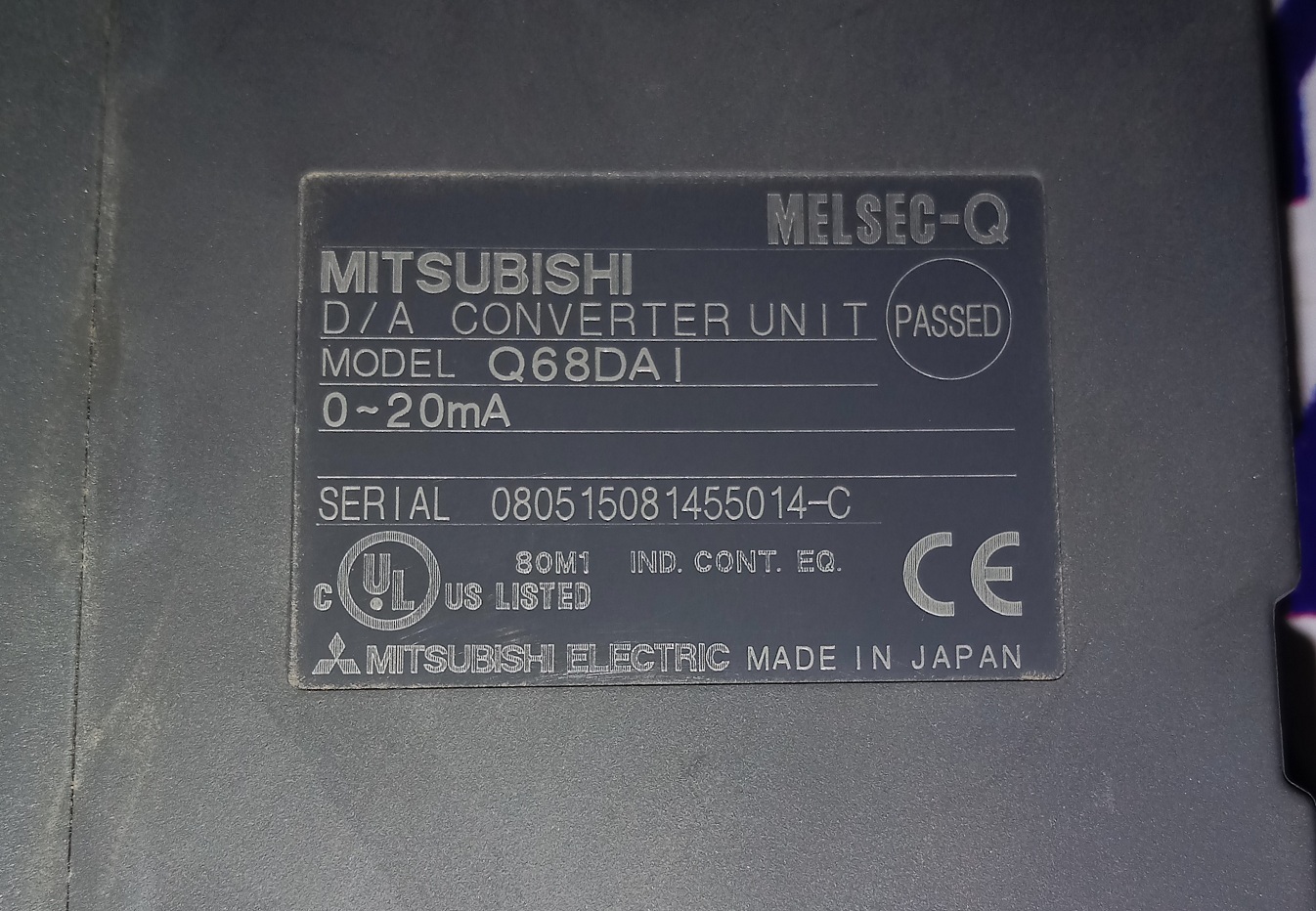

MITSUBISHI ANALOG OUTPUT MODULE Q68DAI

Get a Price/Quote

MITSUBISHI ANALOG OUTPUT MODULE Q68DAI Specification

Surface Finish
Matte

Humidity %
5% to 95% (non-condensing)

IP Rating
IP20

Operating Temperature
0C to +55C

Connector Type
Screw Type

Efficiency
High

Shape
Rectangular

Insulation Material
Polycarbonate

Feature
High Precision, Fast Response

Overheating Protection
YES

Mounting Type
DIN Rail

Product Type
Analog Output Module

Application
Industrial Automation, PLC Systems

Protection Level
Standard

Frequency (MHz)
50/60 Hz

Rated Voltage
24 V DC

Energy Consumption
7 W

Output Type
Analog Current/Voltage

Color
Black

Dimension (L*W*H)
98mm x 27.4mm x 90mm

Weight
0.38 kg

Size
Standard PLC Module

Phase
Single Phase

Input Voltage
24 V DC

Connection Type
Screw Terminal

Material
Industrial Plastic

Module Type
Q Series

Response Time
Fast (optimized for automation)

Cooling Method
Natural air cooling

Device Compatibility
Mitsubishi Q Series PLC

Analog Output Channels
8 channels

Altitude
Max. 2000m above sea level

Storage Temperature
-25C to +75C

Conversion Time
2 ms per channel (max)

Resolution
12 bits

Isolation Method
Photocoupler (between analog and logic circuits)

Output Range
010 V DC, 020 mA

About MITSUBISHI ANALOG OUTPUT MODULE Q68DAI

The MITSUBISHI ANALOG OUTPUT MODULE Q68DAI exemplifies prodigious value for industrial automation, offering an outstanding bargain with its customizable, high-precision analog output. Perfectly compatible with Mitsubishi Q Series PLCs, this module delivers up to 8 analog channels (010 V DC, 020 mA) at a lofty 12-bit resolution. Engineered for reliability, it boasts rapid 2 ms response per channel, robust phototransistor isolation, and efficient natural air cooling. Designed for versatility, it excels in demanding environments, featuring overheating protection, IP20 rating, and seamless DIN rail mounting, making it the ideal choice for cost-conscious automation professionals.

Versatile Application & Usage Methods

The Q68DAI analog output module enables precise process control in various industrial automation environments. Its adaptability makes it suitable for both factory automation lines and specialized machinery, where analog signal processing is paramount. Users can effortlessly integrate this module using a simple screw terminal connection and mount it on DIN rails, enabling streamlined application, reduced downtime, and long-term reliability for diverse automation scenarios.

Main Export Markets, Packaging & Express Delivery

The MITSUBISHI Q68DAI module is highly valued in global export markets, particularly across Asia, Europe, and the Middle East. Each unit is securely packaged for drop-off shipment, ensuring the modules pristine condition upon arrival. Featuring express shipping options and reliable FOB ports in India, customers benefit from timely delivery and detailed valuation, enhancing the overall procurement and supply chain experience for distributors and end users.

FAQs of MITSUBISHI ANALOG OUTPUT MODULE Q68DAI:

Q: How can I install the MITSUBISHI Q68DAI analog output module in my automation system?

A: Installation is straightforward using the screw terminal connector and standard DIN rail mounting. Just align the module with your PLC system, secure it onto the rail, and connect the necessary power and signal wires.

Q: What is the main benefit of using the Q68DAI in industrial automation?

A: The main benefit is its prodigious precision and fast response, ensuring stable and efficient analog output for complex industrial processes, while also offering a customizable and cost-effective solution.

Q: Where can the Q68DAI module be applied besides factory automation?

A: Beyond factory automation, this module performs excellently in process industries, climate control systems, and other advanced PLC-based setups requiring accurate analog signal output.

Q: What type of cooling method does the Q68DAI utilize?

A: The module employs a natural air-cooling method, making it efficient and low-maintenance for continuous industrial use.

Q: When should overheating protection features in the Q68DAI be considered?

A: Overheating protection becomes critical during prolonged operations in environments with fluctuating temperatures or high power usage, ensuring continuous and safe functionality.
