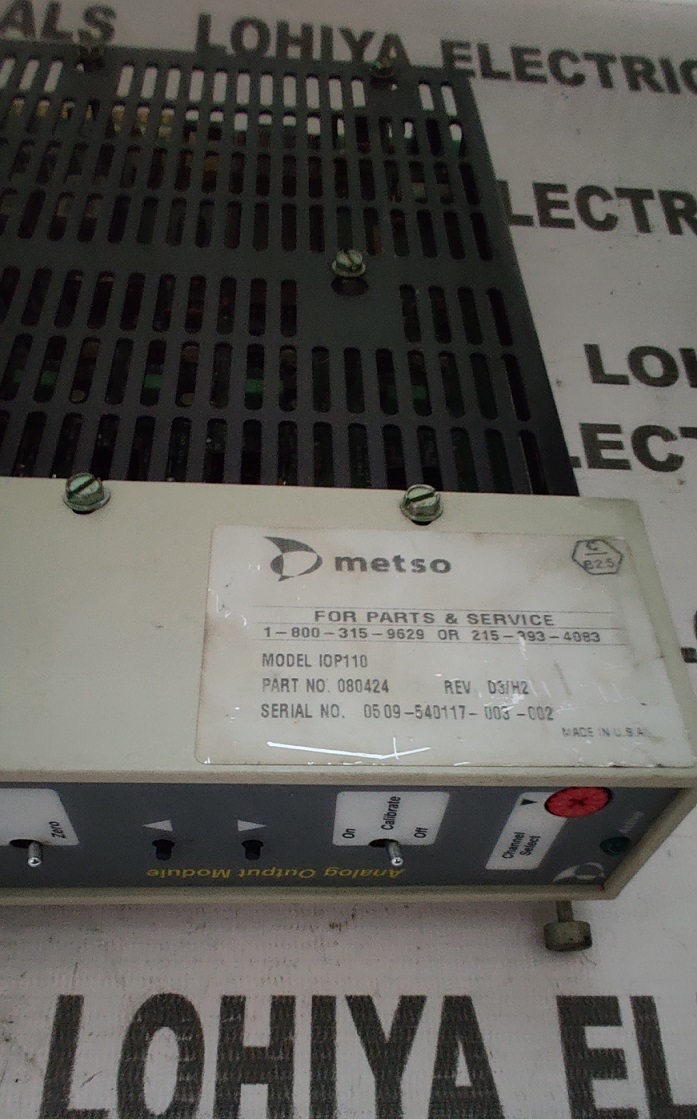

METSO IOP110 HIGH LEVEL ANALOG OUTPUT MODULE

Send Inquiry

Request To Call Back

METSO IOP110 HIGH LEVEL ANALOG OUTPUT MODULE

Get a Price/Quote

METSO IOP110 HIGH LEVEL ANALOG OUTPUT MODULE Specification

Rated Insulation Voltage
500 V

Rated Operation Voltage
24 VDC

Operating Voltage
24 VDC

Components
Printed Circuit Board, Terminal Blocks

Cover Material
Polycarbonate

Cabinet Material
Reinforced Plastic

Connectivity Type
Screw Terminals

Current Rating
0.5 A per channel

Way
Multiple Channel Output

Rated Current
0.5 A

Thickness
Standard Module

Cooling System
Convection

Control System
Distributed Control System Integration

Base Material
Polycarbonate/ABS housing

Panel Type
DIN Rail Mountable

Protection Level
Short Circuit Protection

Protection Class
Class II

Features
High precision, Galvanic isolation, Easy installation

Product Type
High Level Analog Output Module

Material
Industrial Grade Electronic Components

Surface Finish
Matte

Standard
IEC 61131-2

Surface Color
Grey / Metallic

Rated Voltage
24 VDC

Frequency (MHz)
DC Frequency Operation

Maximum Output Current
20 mA per channel

Dimension (L*W*H)
130 mm x 40 mm x 120 mm

Application
Industrial Automation, Process Control

IP Rating
IP20

Display Type
Status LEDs

Operating Temperature Range
0°C to +50°C

Isolation Voltage
500 V (Channel to Logic)

Power Consumption
Less than 2.5 W

Storage Temperature Range
-40°C to +70°C

Output Type
Current / Voltage selectable (0-20 mA or 0-10 V)

Mounting Type
DIN Rail or Panel Mount

Response Time
<1 ms

Signal Conversion
Digital to Analog

Number of Output Channels
8 analog outputs

Relative Humidity
5% to 95% (non-condensing)

About METSO IOP110 HIGH LEVEL ANALOG OUTPUT MODULE

The METSO IOP110 High Level Analog Output Module is a new release that is rapidly gaining popularity among industrial automation professionals for its incomparable performance and favorable reviews. Designed for demanding environments, this prime module features 8 analog outputs with selectable current or voltage types (0-20 mA or 0-10 V), robust short circuit protection, and status LEDs for operational clarity. Its monumental efficiency is highlighted by less than 2.5 W power consumption and a swift <1 ms response time, all within an industrial-grade, DIN rail or panel mountable housing, making it an exceptional choice for advanced control systems worldwide.

Diverse Applications & Key Features

The METSO IOP110 High Level Analog Output Module excels in a variety of applications, including industrial automation, process control, and distributed control system integration. Users benefit from galvanic isolation, high precision, and easy installation. Its modular, DIN rail mountable design is ideal for use in complex installations, ensuring flexibility and safety. With rugged polycarbonate/ABS construction, this module is engineered for reliability in both panel and cabinet setups, making it a standout solution for modern industrial requirements.

Domestic Market Reach, Certifications & Cost Benefits

Targeting the Afghanistan domestic market, the METSO IOP110 is available with verified IEC 61131-2 certification, promising high operational standards. Buyers can take advantage of dependable transport services and the lowest price outlay for their projects. Payment terms are highly flexible, making it accessible for a wide range of suppliers and traders. This module is built for value-driven installations and provides robust protection, supporting large-scale and optimized process control environments.

FAQs of METSO IOP110 HIGH LEVEL ANALOG OUTPUT MODULE:

Q: How does the METSO IOP110 Analog Output Module benefit industrial automation?

A: The module provides high precision analog outputs with selectable current or voltage, fast response time, and reliable galvanic isolation, ensuring accurate and safe operation in complex automation systems.

Q: What features enhance the usage and safety of this module?

A: Key features include short circuit protection, IP20-rated housing, Class II protection, status LEDs, and robust polycarbonate/ABS construction, making it both user-friendly and durable for industrial use.

Q: Where is the METSO IOP110 commonly used?

A: It is widely used in industrial automation, process control, and distributed control system integration across manufacturing and processing facilities in Afghanistan and beyond.

Q: What process is followed for mounting the module?

A: Installation is straightforward, as the module supports DIN rail or panel mounting and uses screw terminals for secure and quick connectivity.

Q: When should you use the current or voltage output modes?

A: Select current mode (0-20 mA) or voltage mode (0-10 V) based on your downstream device requirements, ensuring compatibility and optimal performance in your application.
