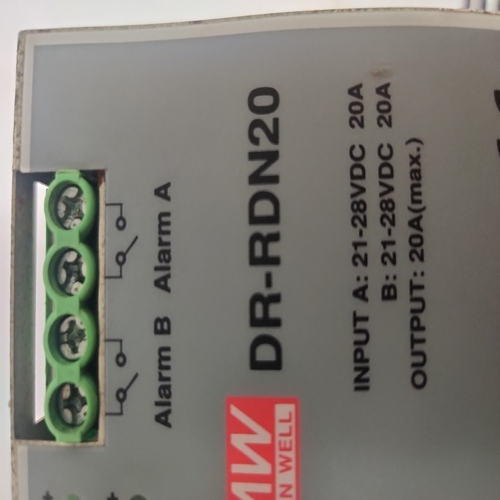

MEAN WELL DR-RDN20 REDUNDANCY MODULE DIN RAIL POWER SUPPLY

Send Inquiry

Request To Call Back

MEAN WELL DR-RDN20 REDUNDANCY MODULE DIN RAIL POWER SUPPLY

Get a Price/Quote

MOQ : 1 Piece

MEAN WELL DR-RDN20 REDUNDANCY MODULE DIN RAIL POWER SUPPLY Specification

Features
Diode ORing, LED Indicators, Compact Size

Current Range
0-20A

Output Current
20A max

Rated Power
480W (max at 24V, 20A)

Power Supply
DC Redundant Source

Rated Current
20A

Working Temperature
-40C to +80C

Output Type
Dual Output

Cooling Method
Natural Air Cooling

Noise Level
<50mVp-p

Connector Type
Screw Terminal Block

Operating Temperature
-40C to +80C

Phase
Single Phase

Power Factor
-- (Not applicable for module)

Application
Industrial Automation, Power Supply Redundancy

Product Type
Redundancy Module DIN Rail Power Supply

Output Power
20A max

Output Frequency
DC (0 Hz)

Input Voltage
24-28V DC

Voltage Protection
Over-voltage protection

Efficiency
Up to 97%

Material
Metal and Plastic Housing

Line Regulation
<1%

Storage Temperature
-40C to +85C

Weight
Approx. 120g

Isolation Voltage
500V DC input/output

Humidity
20%-90% RH non-condensing

LED Indicators
Green: Normal, Red: Fault

Input Connections
2 Inputs (Power Supplies 1/2)

Mounting Type
DIN Rail TS35 / 7.5 or 15

Dimensions (W x H x D)
32 x 90 x 70mm

Parallel Function
Yes, for Redundancy Applications

Output Connections
1 Redundant Output

Case No.
950C

About MEAN WELL DR-RDN20 REDUNDANCY MODULE DIN RAIL POWER SUPPLY

Introducing the MEAN WELL DR-RDN20 Redundancy Module, an elite solution tailored for critical industrial automation needs. Celebrated for its crackerjack efficiency up to 97%, this eminent module ensures stable, redundant DC power with its dual inputs and isolated, highlighted output. Featuring diode ORing, advanced LED indicators (green for normal, red for fault), and natural air cooling, this module stands as a highlighted option for power supply redundancy. Its compact, robust design supports mounting on DIN Rail TS35, and its protected by over-voltage safeguards, making it the preferred choice among top suppliers and traders in India. Avail a premium discount for a limited time!

Application & Usage Directions: Tailored Excellence

The MEAN WELL DR-RDN20 excels in providing reliable redundancy for industrial automation systems, ensuring uninterrupted operations. Utilize its screw terminal block connectors for swift installation on DIN Rail TS35 within electrical panels. Its usage is specifically celebrated for scenarios where failure is not an option, offering double input and a single, highlighted output. Designed for demanding environments, it fits well in factory automation, process control, and every setup requiring eminent power protection and elite continuity.

Sample Policy, Market Value & Certifications: Clear Commitments

Sample requests for the MEAN WELL DR-RDN20 are accommodated based on the outlay and mutual agreement, ensuring you experience its value firsthand before a full commitment. Competitive rate offers are available; the FOB Port is typically Indias major trade gateways, ensuring a seamless supply process. The module is certified to meet international safety standards, thus assuring celebrated quality, reliability, and eminent market acceptance in demanding industrial environments.

FAQs of MEAN WELL DR-RDN20 REDUNDANCY MODULE DIN RAIL POWER SUPPLY:

Q: How does the MEAN WELL DR-RDN20 Redundancy Module enhance system reliability?

A: The DR-RDN20 provides elite redundancy by combining two power sources, ensuring continuous output even if one source fails, which is essential for uninterrupted industrial automation operations.

Q: What specific usage scenarios are ideal for the DR-RDN20?

A: This module is crackerjack for industrial automation, process control, and applications that require highlighted power protection and seamless continuityespecially where a single power failure would be critical.

Q: When should the output indicators be checked during operation?

A: Indicators should be routinely monitored: the green LED signals normal operation, while the red LED highlights a fault, enabling prompt troubleshooting and system stability.

Q: Where is the best location to install the MEAN WELL DR-RDN20?

A: For optimal results, mount the DR-RDN20 on a TS35 DIN rail within a control or distribution panel, ensuring it is in a well-ventilated and easily accessible area for monitoring and maintenance.

Q: What is the process for connecting the input and output terminals?

A: Connect two independent DC power supplies to the input terminals, then link the redundant output to your load device using the screw terminal block, following manufacturer instructions for safety and reliability.

Q: What benefit does the DR-RDN20s diode ORing feature offer?

A: Diode ORing prevents reverse current, further enhancing protection and making sure only the highlighted, best-performing source powers the load, thereby increasing the systems overall integrity.
