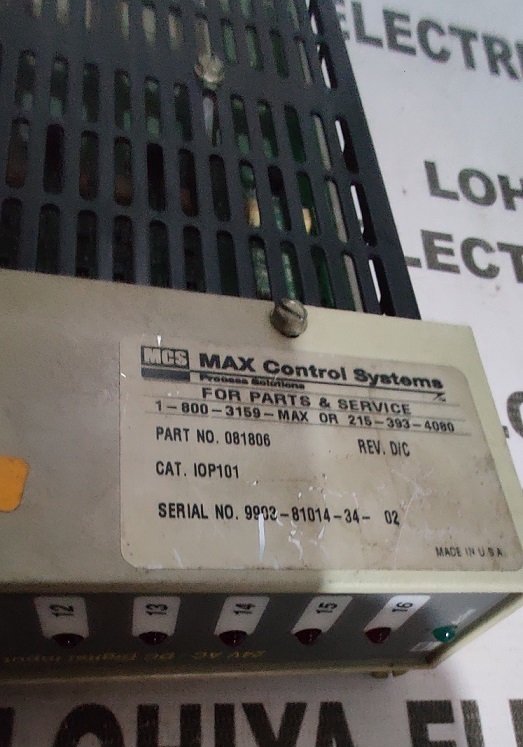

MAX CONTROL SYSTEMS 081806 24V AC DC DIGITAL INPUT MODULE

Send Inquiry

Request To Call Back

MAX CONTROL SYSTEMS 081806 24V AC DC DIGITAL INPUT MODULE

Get a Price/Quote

MAX CONTROL SYSTEMS 081806 24V AC DC DIGITAL INPUT MODULE Specification

Cabinet Material
ABS Plastic

Control System
PLC, SCADA, Automation System Compatible

Base Material
FR4 Epoxy

Way
Multiple Channel

Features
LED Status Indication, Channel Isolation, DIN Rail Mountable

Operating Voltage
24V AC/DC

Thickness
1.5 mm (PCB)

Panel Type
DIN Rail Mount

Current Rating
50mA per input

Protection Level
IP20

Rated Current
50mA (Input Side)

Cover Material
ABS Plastic

Cooling System
Passive

Components
Opto-Isolators, Terminal Blocks, PCB, LED Indicators

Rated Insulation Voltage
500V AC

Protection Class
Class II

Connectivity Type
Screw Terminal Blocks

Rated Operation Voltage
24V AC/DC

Product Type
Digital Input Module

Material
Industrial Grade PCB and Electronic Components

Surface Finish
Matte

Standard
OEM/ODM

Surface Color
Green

Rated Voltage
24V AC/DC

Frequency (MHz)
50/60 Hz

Maximum Output Current
50mA per channel

Dimension (L*W*H)
130 mm x 70 mm x 45 mm

Application
Industrial Automation, PLC Panel, Control Cabinets

IP Rating
IP20

Display Type
LED Channel Indicators

Isolation Voltage
2.5 kV (Input to Logic)

Power Consumption
Less than 2 W

Relative Humidity
5% to 95% (non-condensing)

Input Signal Level
0-5V (Low), 15-30V (High)

Input Type
Potential-Free Dry Contact

Mounting Type
Standard DIN Rail

LED Indicators
Per Channel Status

Storage Temperature
-20°C to +70°C

Response Time
<10 ms

Operating Temperature
0°C to +55°C

About MAX CONTROL SYSTEMS 081806 24V AC DC DIGITAL INPUT MODULE

Spotlight the sterling performance of the MAX CONTROL SYSTEMS 081806 24V AC DC Digital Input Module, perfect for grandiose industrial automation and PLC panel applications. Take advantage of its competitive pricing, industry-standard DIN rail mounting, and opto-isolated inputs ensuring top-notch safety with a 2.5 kV isolation voltage. Each channel boasts LED status indicators, while robust ABS plastic and a matte finish guarantee durability. With a lightning-fast response time of less than 10 ms, this module is the best choice for precise, reliable control in demanding environments.

Versatile Application and Operation

The MAX CONTROL SYSTEMS 081806 Digital Input Module is engineered for integration in industrial automation, SCADA, and PLC panels. Used as a critical interface between control logic and field devices, its application method involves standard DIN rail mounting and simple screw terminal block connectivity. It excels in monitoring, signal acquisition, and process automation, enabling seamless data acquisition and reliable control for automation system integrators and panel builders.

Packaging, Delivery & Availability

Packaging details for the MAX CONTROL SYSTEMS 081806 ensure secure delivery and minimal transit damage, with each unit enclosed in robust protective material. Prompt nationwide delivery is supported, with stock ready for dispatch to major domestic markets. Rate inquiries are welcomed for bulk orders. Samples are available on request, making it easy for potential clients to experience the products excellence before committing to large-scale integration.

FAQs of MAX CONTROL SYSTEMS 081806 24V AC DC DIGITAL INPUT MODULE:

Q: How can the MAX CONTROL SYSTEMS 081806 module be installed?

A: The module is designed for quick and easy installation on a standard DIN rail, allowing seamless integration into control panels and industrial automation systems.

Q: What main applications does this digital input module support?

A: It is primarily used in industrial automation, PLC control cabinets, and SCADA systems where reliable digital signal monitoring and channel isolation are required.

Q: When should the product be used for optimal performance?

A: For optimal performance, use the module in environments with an operating temperature between 0C and +55C and relative humidity of 5% to 95% (non-condensing).

Q: Where is this module most beneficial within an industrial setup?

A: It is most beneficial in control panels, PLC cabinets, and automation racks where reliable, isolated digital inputs are essential for process control.

Q: What are the benefits of the modules isolation voltage of 2.5 kV?

A: The high isolation voltage ensures safety by protecting the logic system from input side electrical surges and potential hazards, extending the lifespan of your control system.

Q: How does the LED channel status indication aid in operation?

A: Each channel features dedicated LED indicators, allowing quick diagnosis and real-time status monitoring for streamlined operation and maintenance.
