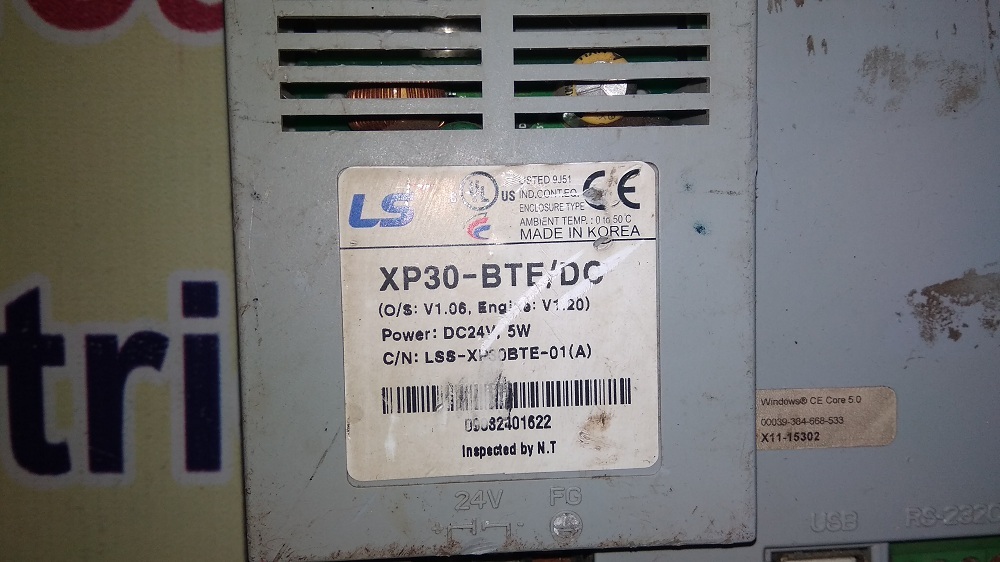

LS HMI

Get a Price/Quote

LS HMI Specification

Working Temperature
0C to 50C

Features
Touch Screen, LED Display, Ethernet/USB/RS232/RS485 Communication, Built-in Memory

Current Range
0.1A to 0.5A (depending on model)

Noise Level
< 40 dB (fanless design)

Connector Type
Terminal Block, USB, Ethernet, Serial Port (model dependent)

Power Factor
> 0.9

Output Current
Typical 0.2A (model dependent)

Phase
Single Phase

Output Type
Digital and Analog Output (model dependent)

Application
Industrial Automation, Control Panel, Machine Interface

Cooling Method
Natural Air Cooling (fanless)

Rated Power
5W (model dependent)

Rated Current
0.2A (typical)

Power Supply
External 24V DC Adapter

Operating Temperature
0C to 50C

Product Type
LS HMI (Human Machine Interface)

Output Power
5W (typical, model dependent)

Output Frequency
50 Hz/60 Hz (as required for backlight/operation)

Input Voltage
24V DC

Voltage Protection
Over-voltage and under-voltage protection

Efficiency
Up to 88%

Material
ABS plastic (front panel); Aluminum (rear housing)

Line Regulation
1%

Storage Temperature
-20C to 60C

Weight
Approx. 0.5-1.2 kg (model dependent)

Display Size
4.3 to 10.4 inches (model specific)

Life Expectancy
> 50,000 hours (backlight/typical)

Ingress Protection
Front Panel IP65 (dust and water jet protected)

Backlight Type
LED

Response Time
< 15 ms

Resolution
480x272 to 1024x768 pixels (model dependent)

Memory Capacity
128 MB Flash, 64 MB RAM (typical model)

Touch Panel Type
4-Wire Resistive or Capacitive (depending on model)

Communication Ports
RS-232C/RS-485, USB Host/Device, Ethernet LAN

Mounting Type
Panel Mounting (Flush Mount)

Programming Software
GMWIN, HMI S/W (depending on series)

Display Type
TFT LCD, 65536 colors

About LS HMI

The LS HMI series boasts distinguished design and stellar performance, highly recommended for industrial automation and control panel applications. Featuring a hot-selling TFT LCD display (4.310.4 inch, model specific) with exquisite clarity and up to 65536 colors, it provides the best price-to-features ratio in its segment. With robust ingress protection (front panel IP65), rapid response time (<15 ms), and efficient 24V DC operation, this interface supports modern connectivity, durable LED backlighting (>50,000 hours), and intuitive touch control. Reliable memory, advanced communication ports, and quality build further distinguish this product as a smart investment for demanding environments.

Key Features & Application Surface of LS HMI

LS HMI units showcase a modern touch-screen LED display, offering both resistive and capacitive touch (based on the model). Highly efficient and versatile, they support RS-232C/RS-485, USB, and Ethernet connectivity. Widely used by professionals in factory automation, control rooms, and machine interfaces, these devices excel across industrial sectors. Their robust IP65 front panel ensures durability, making them perfect for challenging application surfaces and operational environments.

Packing, Delivery, and Certification Details for LS HMI

Each LS HMI is valued for its secure, reliable packaging and swift dispatch. Packing & dispatch procedures adhere to international safety and durability standards, ensuring each product arrives in optimal condition. Typical delivery time is prompt, catering to urgent industrial needs. The devices are certified to comply with relevant quality, electrical, and environmental standards, assuring industrial users of their operational safety, reliability, and long-term valuation.

FAQs of LS HMI:

Q: How does the LS HMI facilitate industrial automation processes?

A: The LS HMI streamlines industrial automation by offering intuitive touch-screen control, broad connectivity options, and fast response times, allowing seamless monitoring and management of machinery and processes on modern factory floors.

Q: What distinguishes the LS HMIs display and durability features?

A: The HMI features a TFT LCD with up to 65536 colors, LED backlighting with a lifespan over 50,000 hours, and an IP65 front panel, providing distinguished clarity and robust protection in harsh industrial environments.

Q: When is the ideal circumstance to use LS HMI in control panels?

A: LS HMI is ideal for control panels when precise interaction, real-time status monitoring, data communication, and long-term reliability are essential, particularly in automation, manufacturing, and machine interface applications.

Q: Where can the LS HMI be installed for best utility?

A: Optimally, LS HMI units are panel mounted (flush mount) in control cabinets, machine interfaces, or centralized control stations, ensuring easy operator access and protection from environmental factors.

Q: What benefits does the fanless, low-noise design of LS HMI offer?

A: With a noise level below 40 dB and natural air cooling, the LS HMI operates quietly and efficiently, minimizing maintenance requirements and ensuring longevity even in continuous-use industrial settings.

Q: How is the LS HMI typically packed and dispatched for delivery?

A: Each LS HMI is securely packaged to prevent transit damage and is promptly dispatched. Packing methods are tailored for electronics, using anti-static and shock-absorbing materials for safe and reliable delivery.
