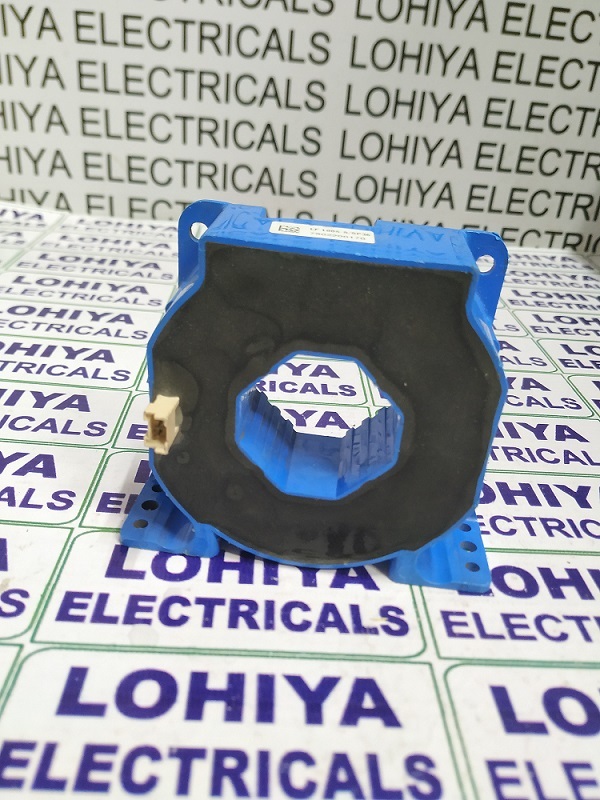

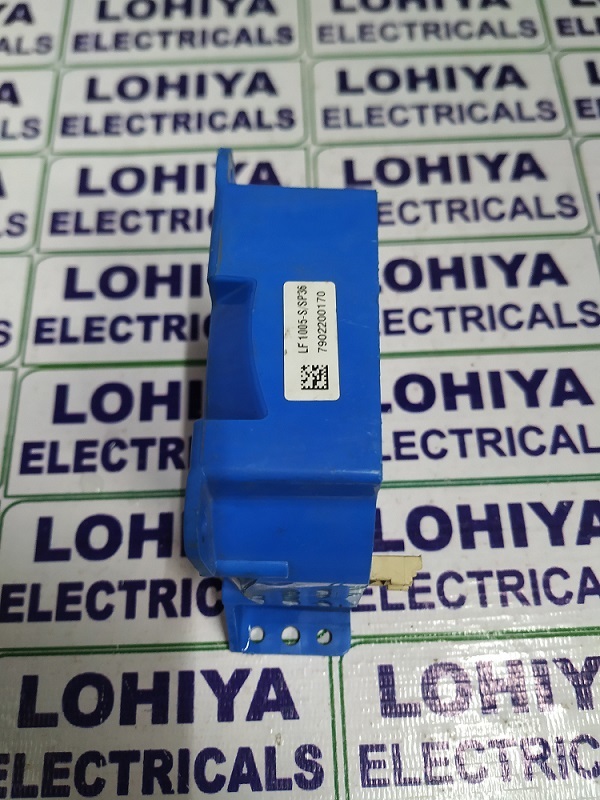

LEM LF 1005-S/SP36 CURRENT TRANSDUCER

Get a Price/Quote

LEM LF 1005-S/SP36 CURRENT TRANSDUCER Specification

Thickness
26 mm

Rated Insulation Voltage
1000 V

Connectivity Type
Pin terminals

Operating Voltage
15 V DC

Protection Level
IP20

Cover Material
Polycarbonate

Rated Current
1000 A

Components
Current measuring core, electronic output stage

Way
Single

Current Rating
1000 A

Protection Class
Class II

Base Material
Engineering grade polymer

Control System
Analog

Features
High accuracy, wide bandwidth, compact size

Rated Operation Voltage
600 V AC/DC

Panel Type
Module

Cooling System
None (passive)

Product Type
Current Transducer

Material
High-quality insulating plastic with precision wound copper conductors

Surface Finish
Matte

Standard
IEC 61010-1 / EN 50178

Surface Color
Blue and Black

Rated Voltage
1000 V

Frequency (MHz)
DC to 100 kHz

Maximum Output Current
12 mA

Dimension (L*W*H)
110 mm x 80 mm x 26 mm

Application
Industrial equipment, power electronics, energy monitoring

IP Rating
IP20

Display Type
None (Analog output)

About LEM LF 1005-S/SP36 CURRENT TRANSDUCER

Try now the unrivaled LEM LF 1005-S/SP36 CURRENT TRANSDUCER, engineered for elite performance in demanding applications. This latest crackerjack model delivers top-tier accuracy with 0.2% nominal current and boasts a lightning-fast <1 s response time. Designed with high-quality insulating plastic and precision copper conductors, it ensures exceptional safety and reliability. With its compact, matte blue and black surface and IP20 protection, the LF 1005-S/SP36 is your ultimate choice for advanced energy monitoring, industrial equipment, and power electronicssetting a new standard in unrivaled current measurement excellence.

Superior Competitive Edge and Broad Application Versatility

The LEM LF 1005-S/SP36 CURRENT TRANSDUCER stands out with its unrivaled linearity and dielectric strength, making it crackerjack for precise control systems. Its robust panel mount and engineering grade polymer ensure reliable use across industrial equipment and energy monitoring surfaces. Ideal for media ranging from power electronics to high-frequency environments, it delivers dependable analog output and seamless integration, driving your applications to elite performance levels every time.

Streamlined Payment, Rapid Delivery, and Logistics Excellence

LEM LF 1005-S/SP36 CURRENT TRANSDUCER is delivered stock-ready, ensuring prompt availability for your projects. Packaging details are focused on secure transit, with modules safely enclosed in protective polycarbonate shells. Our logistics process is designed for efficiency, supporting global delivery networks. Flexible payment terms accommodate your procurement needs. Sample units are available upon request, enabling hands-on evaluation before full-scale integration. Trust us for a seamless order-to-delivery process you can rely on.

FAQs of LEM LF 1005-S/SP36 CURRENT TRANSDUCER:

Q: How does the LEM LF 1005-S/SP36 achieve such high measurement accuracy?

A: The LF 1005-S/SP36 utilizes a closed loop compensated Hall effect method with precision-wound copper conductors and elite analog electronics, providing unrivaled linearity and accuracy at 0.2% of nominal current.

Q: What types of industrial applications are ideal for the LF 1005-S/SP36?

A: This transducer is top-tier for use in industrial equipment, power electronics, energy monitoring, and control systems that require precise current measurement and dependable analog outputs.

Q: When can I expect delivery after placing an order for the LF 1005-S/SP36?

A: Delivery timelines depend on location, but with stock-ready logistics, we ensure prompt shipping; most orders are processed and shipped within standard business days.

Q: Where can the LF 1005-S/SP36 be mounted for optimal performance?

A: It is designed for panel mount (snap-on) installation, offering flexibility and stability on module panels within electrical cabinets or control panels.

Q: What is the process for requesting sample units of the LF 1005-S/SP36?

A: Simply contact your supplier or trader to request a sample; we maintain a streamlined process ensuring quick response and secure logistics for sample deliveries.

Q: How does the LF 1005-S/SP36 benefit energy monitoring systems?

A: Its unrivaled accuracy, wide bandwidth, and fast response time enable crackerjack detection and real-time monitoring of power flows, improving system reliability and performance.
