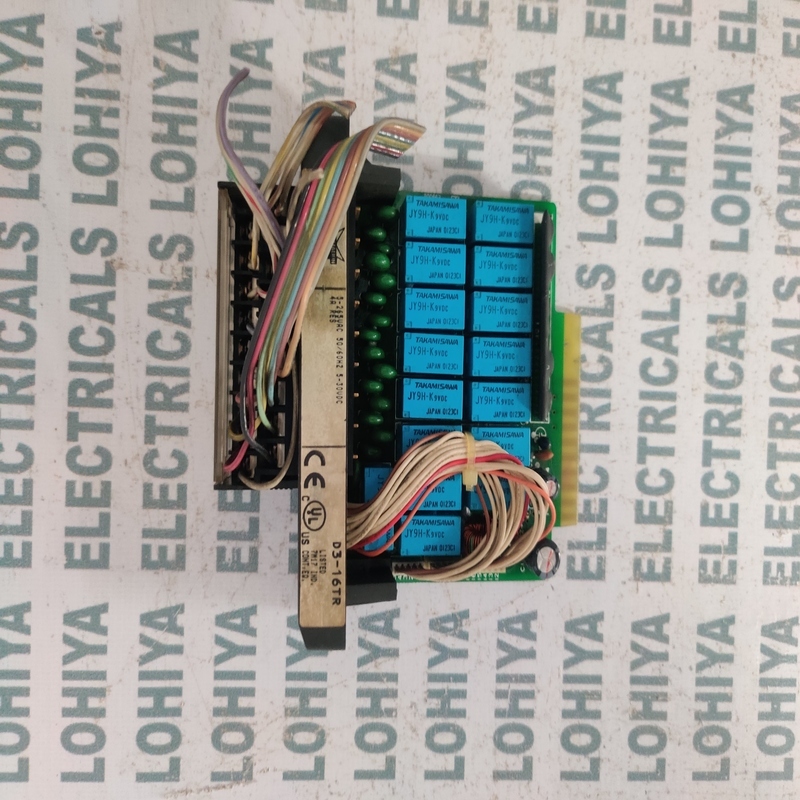

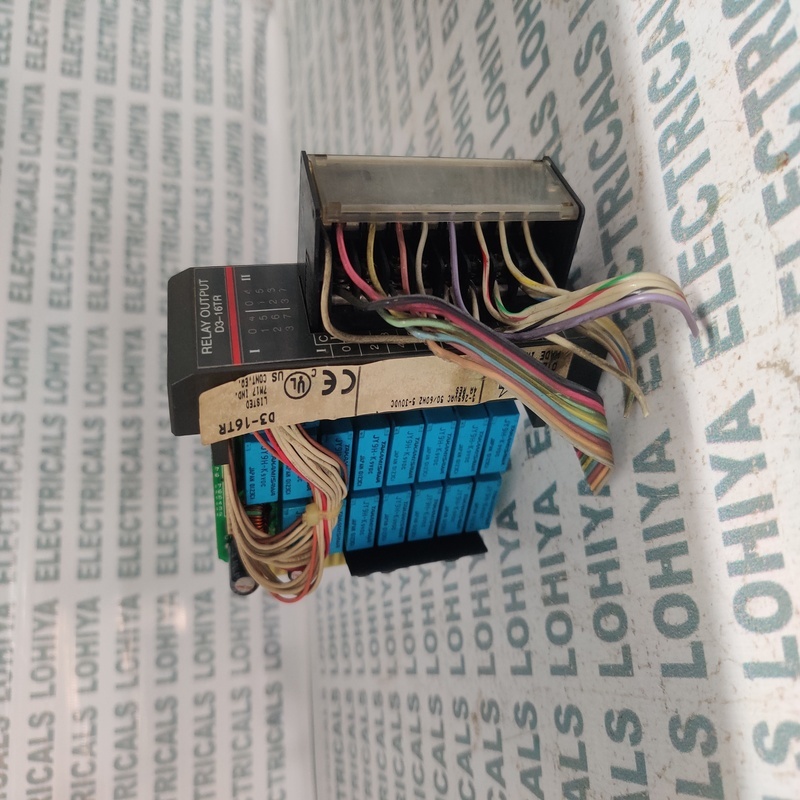

KOYO RELAY D3-16TR OUTPUT MODULE

Get a Price/Quote

KOYO RELAY D3-16TR OUTPUT MODULE Specification

Rated Current
0.5A per channel

Connectivity Type
Screw terminal

Panel Type
DIN Rail Mount

Way
16 Channel (16TR)

Rated Insulation Voltage
500V AC for 1 min

Cooling System
Natural air ventilation

Current Rating
0.5A (each output)

Features
Compact, noise-immune, DIN rail mounting

Thickness
Compact, Standard Module Thickness

Control System
PLC compatible

Cover Material
Transparent polycarbonate

Rated Operation Voltage
24V DC

Protection Level
IP20

Components
Relay, indicator LEDs, terminal blocks

Base Material
Durable Thermoplastic

Cabinet Material
Plastic

Operating Voltage
24V DC

Protection Class
Class II

Product Type
Output Module Relay

Material
Flame-retardant plastic housing

Surface Finish
Matte

Standard
Industrial Automation Standard

Surface Color
Grey

Rated Voltage
24V DC

Frequency (MHz)
50/60 Hz

Maximum Output Current
0.5A per point

Dimension (L*W*H)
130 x 50 x 100 mm (approx.)

Application
PLC automation systems, relay output expansion

IP Rating
IP20

Display Type
LED indicators for output status

Contact Form
SPST-NO (Single Pole Single Throw Normally Open)

Operating Temperature
0C to +55C

Storage Temperature
-25C to +70C

Relay Type
Electromechanical relay

Input Signal Voltage
24V DC signal from PLC

Response Time
< 10 ms

Number of Outputs
16 (Relay output points)

Mounting Method
DIN Rail (35 mm)

Power Consumption
Max 1.5W

Indication
LED for each output channel

Weight
Approx. 250g

About KOYO RELAY D3-16TR OUTPUT MODULE

Discover the champion in relay output modules: the KOYO RELAY D3-16TR. This masterful and customizable device boasts 16 relay output points, utilizing SPST-NO electromechanical relays, expertly engineered for PLC automation systems. With a remarked quick response time under 10 ms, robust flame-retardant housing, and dependable LED indication for each output, it promises superior reliability. Find the best price and optimal performance for your projects. Its DIN Rail mounting, compact design, and IP20 protection elevate this unit to an industry standard for control excellence.

Versatile Application Surface and Direction of Use

The KOYO RELAY D3-16TR OUTPUT MODULE is designed for seamless integration into PLC automation systems. Used as a reliable relay output expansion, it excels in industrial control environments that demand durable, noise-immune, and compact solutions. Simply mount the module on a standard 35mm DIN Rail, connect through easy-access screw terminals, and leverage LED indicators for precise output monitoring. Its matte grey finish and transparent cover ensure clarity and protection during everyday use.

Stock Ready, Quick Dispatch & Reliable Supply

KYOTO RELAY D3-16TR is always stock ready to ensure quick dispatch upon your purchase order. Serving both domestic and select international markets with rapid delivery, this module stands out for its supply abilityperfect for projects requiring swift turnaround. Dedicated suppliers and traders keep inventory current, expediting order processing so your automation needs are met without delay. Enjoy a confident purchasing experience supported by robust logistics and reliable service.

FAQs of KOYO RELAY D3-16TR OUTPUT MODULE:

Q: How is the KOYO RELAY D3-16TR OUTPUT MODULE installed?

A: The module is designed for quick and secure installation on a standard 35mm DIN Rail. Simply attach it to the rail and connect the relay output points and input signal lines using the screw terminal blocks provided.

Q: What applications is the KOYO D3-16TR most suitable for?

A: This output module is ideal for PLC automation systems, especially when additional relay output expansion is needed in industrial environments, process control, or building automation.

Q: Where should the module be used for optimal performance?

A: For best results, deploy the KOYO RELAY D3-16TR in clean, well-ventilated industrial control panels that adhere to the recommended operating temperature range of 0C to +55C.

Q: What are the benefits of the LED indicators on each output channel?

A: Each LED indicator provides real-time status for its respective output channel, aiding in quick diagnostics and efficient maintenance without the need to power down the system.

Q: How does the module ensure safety and protection?

A: Equipped with an IP20 rating, flame-retardant plastic housing, transparent cover, and Class II protection, the module safeguards against accidental contact and environmental factors within its rated limits.
