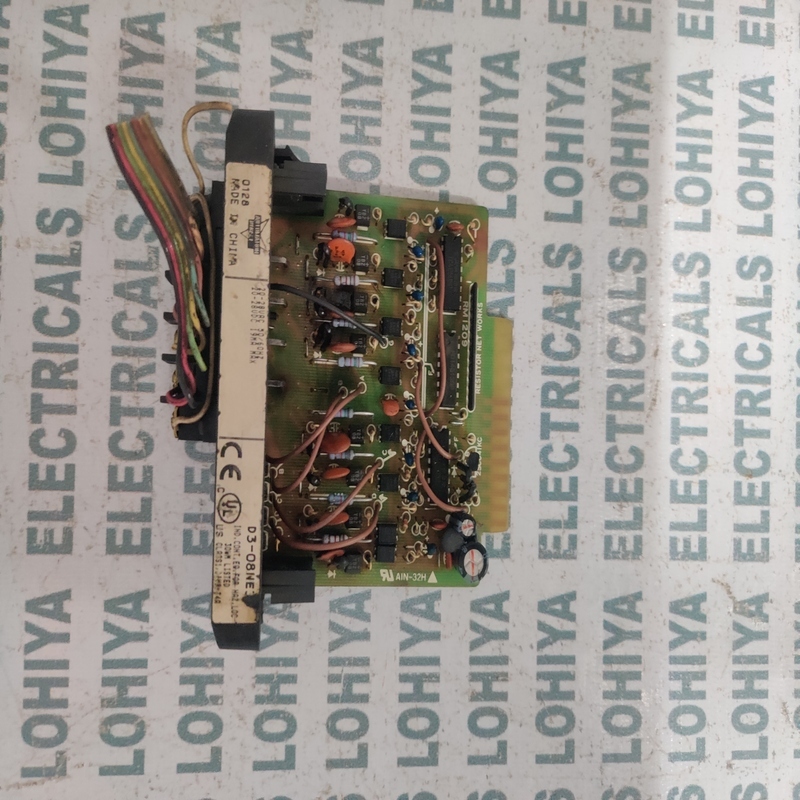

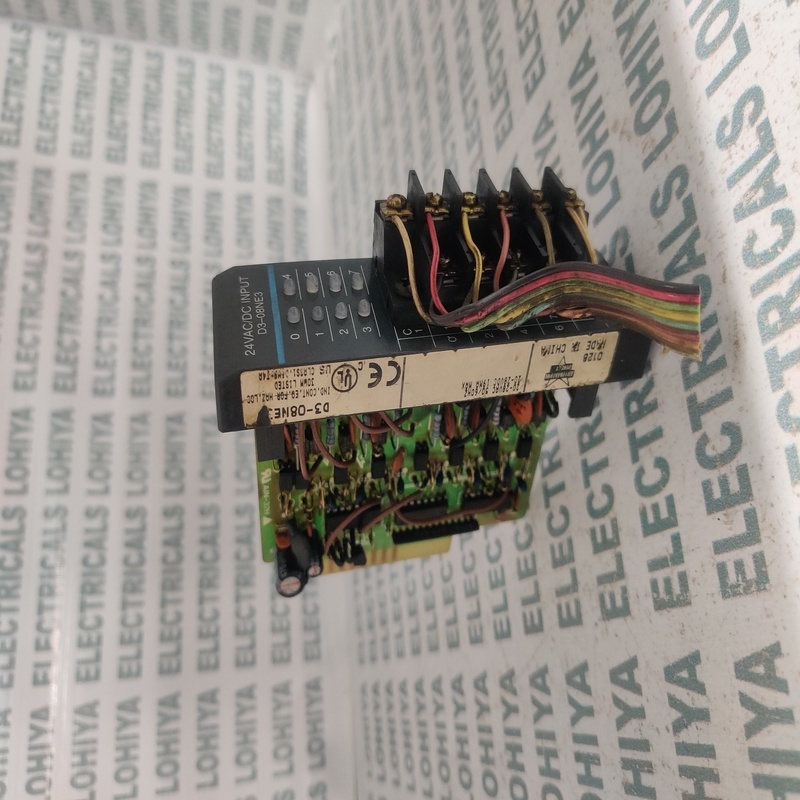

KOYO 24VAC/DC D3-08NE3 INPUT MODULE

Get a Price/Quote

KOYO 24VAC/DC D3-08NE3 INPUT MODULE Specification

Current Rating
8 mA per Input

Cabinet Material
Non-corrosive plastic

Operating Voltage
24 VAC/DC

Cooling System
Passive

Protection Class
Class II

Protection Level
Overvoltage and reverse polarity protection

Connectivity Type
Screw Terminal Block

Control System
DL305 Series PLC

Thickness
Compact profile

Rated Insulation Voltage
500 V

Rated Current
8 mA per channel

Panel Type
DIN Rail Mountable

Base Material
High-durability plastic

Cover Material
Polycarbonate

Way
8 Input Channels

Components
Opto-isolated input channels

Rated Operation Voltage
24 VAC/DC

Features
Hot-swappable, LED indicators, Surge protection

Product Type
Input Module

Material
Industrial grade electronic components

Surface Finish
Matte

Standard
IEC 61131-2

Surface Color
Green/Black

Rated Voltage
24 VAC/DC

Frequency (MHz)
50/60 Hz

Maximum Output Current
Not applicable (Input module)

Dimension (L*W*H)
90mm x 40mm x 60mm (approximate)

Application
Industrial Automation, PLC Systems

IP Rating
IP20

Display Type
LED Input Status Indicators

Storage Temperature Range
-20C to 70C

Input Signal Voltage Range
19-30V AC/DC

Operating Temperature Range
0C to 60C

Response Time
10 ms ON/OFF

Number of Channels
8 digital inputs

Mounting Type
DIN Rail

Input Signal Type
Sinking or Sourcing

Relative Humidity
5% to 95% (non-condensing)

Weight
Approx. 140g

Compatible Series
KOYO DL305 Series

Input Impedance
Approximately 3 k per channel

About KOYO 24VAC/DC D3-08NE3 INPUT MODULE

The KOYO 24VAC/DC D3-08NE3 INPUT MODULE is a must-have for modern industrial automation projects. Its ephemeral yet resplendent design features a robust, compact profile crafted from industrial-grade materials. With eight ravishing digital input channelseach offering both sinking and sourcing signal typesthis module exemplifies extraordinary reliability and flexibility. Advance purchase is wise for integrators seeking IEC 61131-2-standard performance and hot-swappable convenience, complete with surge and overvoltage protection. Experience rapid 10 ms ON/OFF response and effortless DIN rail installation, perfectly compatible with the KOYO DL305 Series PLC for optimized control.

Versatile Industrial Input Solution: Wide Application Reach

Used as a digital input interface, the KOYO 24VAC/DC D3-08NE3 INPUT MODULE is favored by automation engineers and control system integrators. Its main advantage is seamless compatibility with the KOYO DL305 Series, ensuring effortless integration in PLC systems. The eight-channel design streamlines complex industrial processes, delivering reliable, opto-isolated input status monitoring. These features make it ideal for manufacturing lines, process automation, and advanced monitoring applications demanding accuracy and resilient performance.

Efficient Supply: Swift Order Fulfillment and Availability

Stock ready and samples available, the KOYO 24VAC/DC D3-08NE3 INPUT MODULE is promptly delivered for industrial projects. With robust supply ability, your order will be processed efficiently from stock to completion. Main export markets include Asia, Europe, and North America. Each unit undergoes thorough inspection before shipment, ensuring you receive a quality-assured product for immediate deployment upon delivery, meeting urgent timelines and advance purchase requirements with ease.

FAQs of KOYO 24VAC/DC D3-08NE3 INPUT MODULE:

Q: How is the KOYO D3-08NE3 INPUT MODULE installed in control panels?

A: Installation is straightforward using the DIN rail mounting system, allowing quick integration into standard industrial control panels without extensive modifications.

Q: What are the primary benefits of using this module in PLC automation?

A: It offers hot-swappable maintenance, surge and reverse polarity protection, opto-isolated input channels, and rapid response times, delivering reliable and extraordinary control for advanced automation environments.

Q: When should I consider advance purchase of the D3-08NE3 INPUT MODULE?

A: Advance purchase is recommended for large-scale or time-sensitive projects where timely installation and deployment are crucial, especially to meet urgent automation requirements.

Q: Where can the KOYO D3-08NE3 module be applied most effectively?

A: This module excels in industrial automation, particularly with PLC systems in manufacturing plants, process control, and machinery requiring accurate monitoring of digital input signals.

Q: What is the best process for ordering and receiving this module?

A: Place your order through authorized suppliers to ensure stock readiness. Orders are processed promptly, and the module is delivered after thorough quality checks to ensure on-time completion.
