KISTLER 2151B15052001 NC JOINING MODULE NCFH

Send Inquiry

Request To Call Back

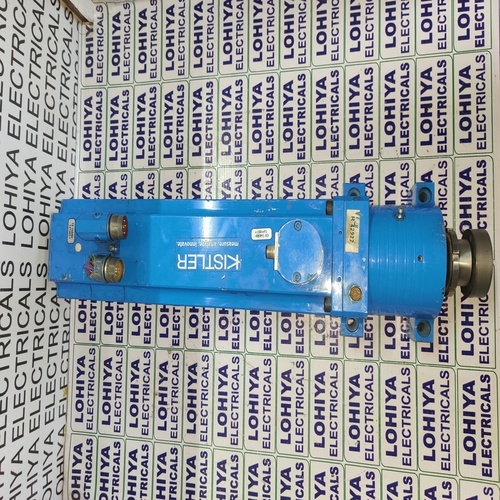

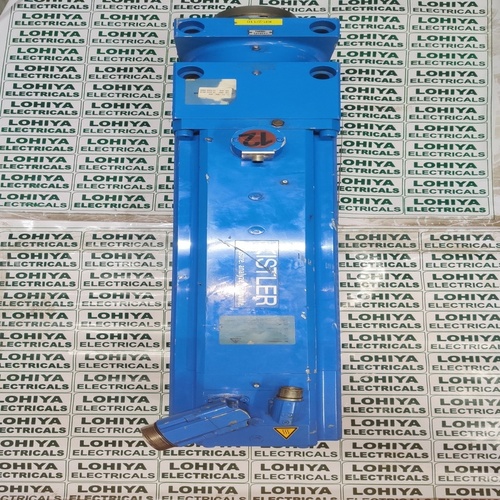

KISTLER 2151B15052001 NC JOINING MODULE NCFH

Get a Price/Quote

KISTLER 2151B15052001 NC JOINING MODULE NCFH Specification

Protection Class
Class I

Operating Voltage
24 V DC

Rated Current
10 A

Rated Operation Voltage
24 V DC

Features
High precision, Compact Design, Integrated Measurement, Robust Construction

Base Material
Steel

Way
Single-Axis

Cover Material
Aluminium

Components
Servo Motor, Piezo Sensor, Control Electronics

Current Rating
10 A

Control System
Servo-Electric

Cabinet Material
Aluminium

Connectivity Type
Digital IO, Communication Interfaces

Cooling System
Integrated Air Cooling

Protection Level
IP54

Thickness
120 mm (cylinder stroke dependent)

Product Type
NC Joining Module NCFH

Material
Steel

Surface Finish
Smooth/Polished

Standard
DIN

Surface Color
Metallic Silver

Rated Voltage
24 V DC

Maximum Output Current
10 A

Dimension (L*W*H)
See datasheet (depends on type)

Application
Press-fit, Assembly, Joining, Pressing, Quality Assurance in Automation

IP Rating
Ip54

Display Type
Not Included

Communication Interfaces
Ethernet, PROFIBUS, Profinet, CANopen

Maintenance
Low Maintenance, Oil-free Operation

Mounting Type
Flange/Horizontal Mount

Measuring Range
0.05 60 kN (depends on model)

Resolution
0.01 mm

Repeatability
< 1 m

Safety
Complies with Machinery Directive 2006/42/EC

Stroke Length
Up to 400 mm (depends on model)

Model Number
2151B15052001

Force Sensor
Piezoelectric, integrated (strain gauge option)

Temperature Range
0 C to +60 C

About KISTLER 2151B15052001 NC JOINING MODULE NCFH

Unlock superior performance with the KISTLER 2151B15052001 NC Joining Module NCFHa must-have solution for precision assembly and joining tasks in demanding automation environments. Engineered with a famed piezoelectric force sensor, this module offers a pivotal measuring range up to 60 kN and boasts a repeatability of less than 1 m, making it ideal for high-level quality assurance. With oil-free, low-maintenance operation, advanced connectivity, and compliance with DIN and machinery safety standards, this steel-constructed, metallic silver module is a promotion-ready purchase for forward-thinking industries seeking robust, reliable automation solutions.

Superior Application Versatility and Advanced Features

The KISTLER 2151B15052001 NC JOINING MODULE NCFH delivers unrivaled versatility for pressing, assembly, and quality assurance in automation settings. Featuring a robust steel base with a smooth, polished metallic finish, it integrates superior surface contact for optimal performance across various media, including metals and composites. Precision engineering ensures reliable operation under fluctuating temperatures, while the piezoelectric sensor and servo-electronics provide high measurement accuracy, making it suitable for industries demanding meticulous force control and repeatable processes.

Immediate Availability and Flexible Purchase Options

Stock is ready for dispatch, with express shipping and attractive offers available for our domestic market customers. KISTLER 2151B15052001 modules arrive securely packaged to ensure safe transit. Payment terms are flexible, tailored to meet diverse purchasing needs across different sectors. Our superior after-sales support and prompt delivery further reinforce our commitment to customer satisfaction, making the acquisition process straightforward and convenient for professionals seeking high-end automation equipment.

FAQs of KISTLER 2151B15052001 NC JOINING MODULE NCFH:

Q: How does the KISTLER 2151B15052001 ensure precise joining and assembly?

A: The module utilizes an integrated piezoelectric force sensor, achieving high force measurement accuracy with a repeatability of less than 1 m, and a resolution of 0.01 mm, ensuring precision in applications such as press-fit and assembly.

Q: What mounting options are available for this joining module?

A: The KISTLER 2151B15052001 offers versatile mounting options, including flange and horizontal configurations, allowing flexible installation in various automation setups.

Q: When is the KISTLER 2151B15052001 recommended for use?

A: It is recommended for quality assurance in demanding applications involving press-fitting, assembly, joining, and any operation requiring high force accuracy and repeatable, oil-free performance.

Q: Where can this module be applied in industrial settings?

A: It is ideal for integration in automated production lines, robotics work cells, and specialized machinery in sectors such as automotive, aerospace, and electronics manufacturing.

Q: What benefits do users gain from its digital connectivity and safety standards?

A: With interfaces like Ethernet, PROFIBUS, Profinet, and CANopen, users benefit from seamless integration into digital production environments. Compliance with Machinery Directive 2006/42/EC ensures heightened safety during operation.
