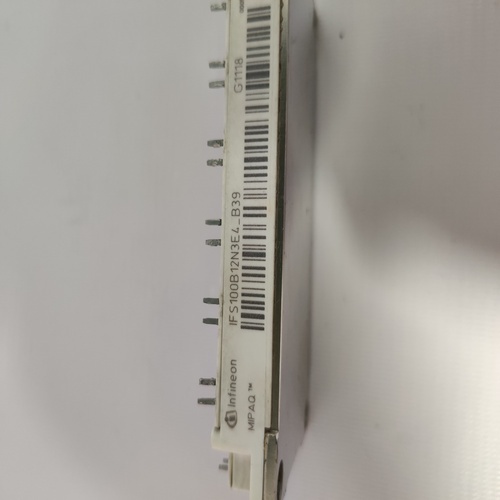

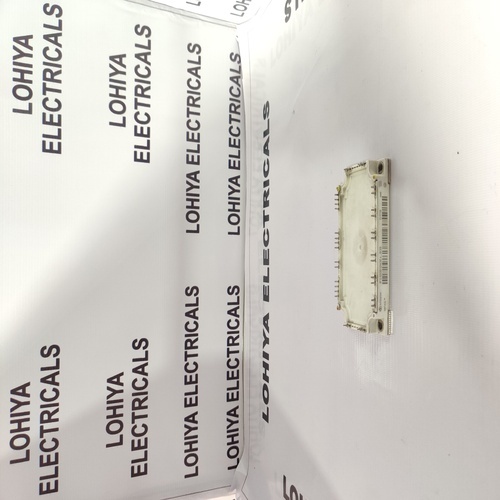

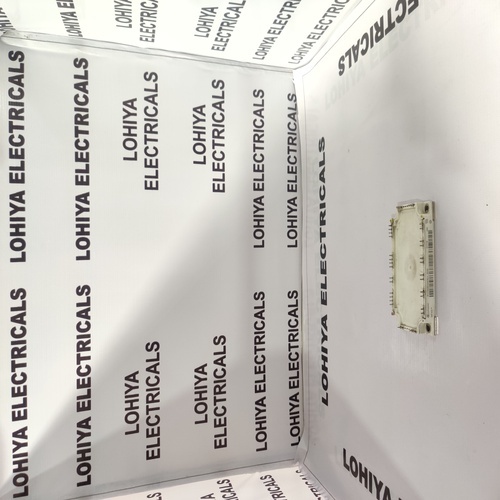

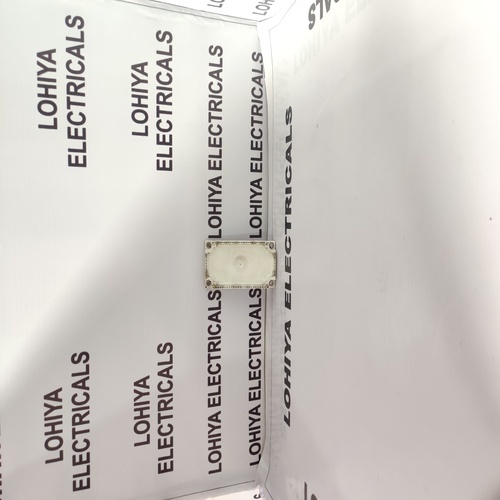

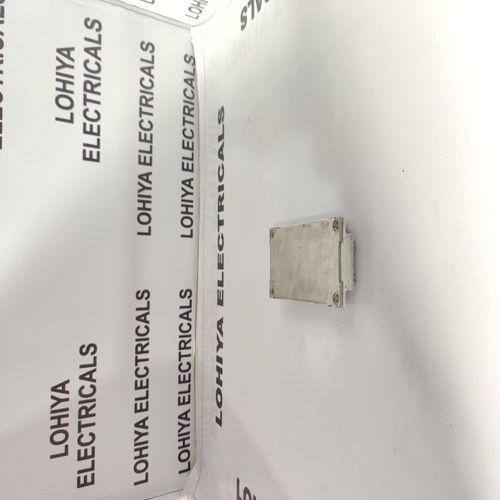

INFINEON IFS100B12N3E4-B39 IGBT MODULE

Get a Price/Quote

MOQ : 1 Piece

INFINEON IFS100B12N3E4-B39 IGBT MODULE Specification

Components
IGBT, Fast Diode, Temperature Sensor

Current Rating
100A

Features
Low Saturation Voltage, High Short Circuit Withstand, Fast Switching, Integrated NTC

Protection Class
Class I

Way
3-Phase

Thickness
38 mm (Overall Height)

Rated Insulation Voltage
2500V AC

Operating Voltage
1200V

Panel Type
Encapsulated Power Module

Connectivity Type
Screw Terminal

Protection Level
IP00

Rated Operation Voltage
1200V

Base Material
Copper Baseplate

Rated Current
100A

Cooling System
Baseplate (Conduction or Forced Air) Cooling

Control System
External Gate Drive

Cover Material
Plastic (High-Temperature Resistant)

Product Type
IGBT Power Module

Material
Plastic and Metal Composite

Surface Finish
Matte

Standard
IEC 60747-9

Surface Color
Black

Rated Voltage
1200V

Frequency (MHz)
DC to 20 kHz

Maximum Output Current
100A

Dimension (L*W*H)
134 mm x 55 mm x 38 mm

Application
Industrial Motor Drives, Power Inverters, UPS Systems

IP Rating
IP00

Mounting Type
Chassis Mount

Gate-Emitter Voltage
±20V (max)

Collector-Emitter Saturation Voltage (Vce(sat))
1.85V at 100A

Isolation Voltage
2500V AC (1 min)

Module Configuration
Half-Bridge

Package/Case
B39 Module

Power Dissipation
535W (Maximum)

Temperature Range
-40°C to +150°C (Junction)

Model Number
IFS100B12N3E4-B39

About INFINEON IFS100B12N3E4-B39 IGBT MODULE

Introducing the INFINEON IFS100B12N3E4-B39 IGBT MODULEa sizzling, top-rated solution engineered for high-performance industrial needs. Laureate in efficiency, this champion half-bridge module delivers transcendent switching capability with a robust 1200V rating and 100A output. Its advanced copper baseplate and composite shell ensure remarkable durability, while integrated features like low Vce(sat) and high short-circuit withstand power secure its place among industry leaders. Now available at a sharp discount for select traders and suppliers in Indiasecure your edge in power control!

Versatile Applications & Extra Features

The INFINEON IFS100B12N3E4-B39 IGBT MODULE is meticulously crafted for flexible chassis mounting, thanks to screw terminal connectivity and conduction or forced air cooling options. Ideal for use in industrial motor drives, power inverters, and UPS systems, it stands out with integrated NTC temperature sensing, low saturation voltage, and fast switching. Its encapsulated design and matte finish further guarantee robust performance in demanding operational environments.

Payment Terms, Sample Policy & Export Markets

Our stock-ready INFINEON IFS100B12N3E4-B39 modules are available with flexible outlay options, catering to both domestic mar and international traders. Sampling is available upon genuine inquiry, fostering customer confidence before bulk orders. The main export markets encompass Asia, Europe, and Africa, ensuring reliable supply for global requirements. Reach out now to discover competitive pricing and advantageous payment policies for your industrial projects.

FAQs of INFINEON IFS100B12N3E4-B39 IGBT MODULE:

Q: How is the INFINEON IFS100B12N3E4-B39 IGBT MODULE typically installed in industrial setups?

A: The IFS100B12N3E4-B39 module is designed for chassis mounting via screw terminals, ensuring a secure and adaptable installation for diverse industrial applications.

Q: What are the main application areas for this IGBT module?

A: This module excels in industrial motor drives, power inverters, and UPS systems, offering exceptional performance in environments that demand power efficiency and reliability.

Q: What benefits does the integrated NTC temperature sensor provide?

A: The integrated NTC sensor enables precise temperature monitoring, enhancing module safety and enabling efficient thermal management during operation.

Q: When is the best time to use this IGBT module in a project?

A: Consider the IFS100B12N3E4-B39 when you require high power, rapid switching, and robust protection features in your industrial electronics projects.

Q: Where can I purchase the IFS100B12N3E4-B39 module and are samples available?

A: This module is in stock and available from authorized suppliers and traders in India, with sample units provided upon request for qualified inquiries.

Q: What is the process for securing export orders or bulk shipments?

A: Contact the suppliers sales team to initiate orderspayment terms are flexible, and prompt shipping is guaranteed to both domestic and main export markets.
