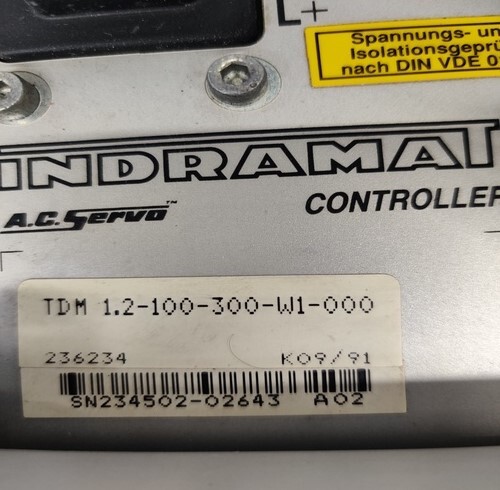

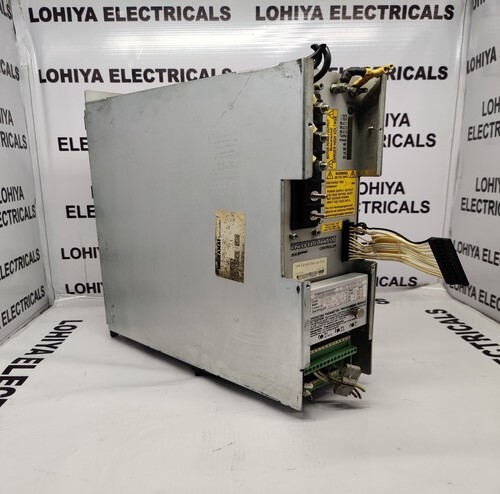

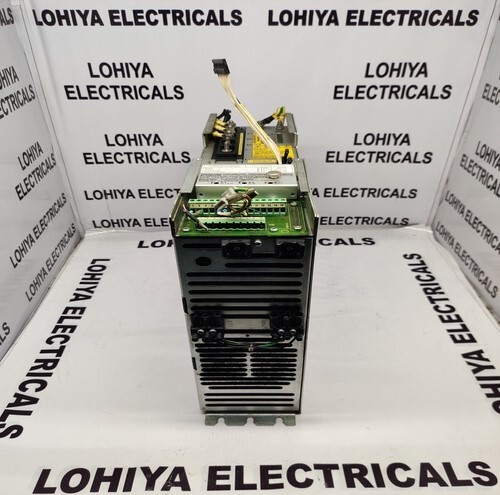

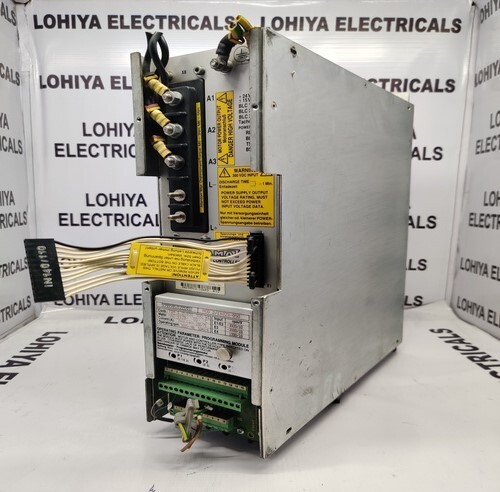

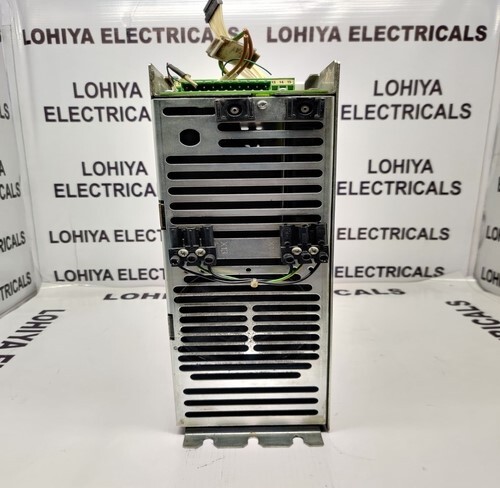

INDRAMAT TDM1.2-100-300-W1-000 SERVO DRIVE

Get a Price/Quote

MOQ : 1 Piece

INDRAMAT TDM1.2-100-300-W1-000 SERVO DRIVE Specification

Connectivity Type
Terminal Connectors

Way
Single Channel

Cooling System
Forced Air (Integrated Fan)

Cover Material
Metal

Components
Power Supply, Control Board, Terminal Blocks

Current Rating
40 A Continuous / 100 A Peak

Protection Level
IP20

Panel Type
Enclosed Mounting Panel

Rated Current
40 A Continuous

Operating Voltage
3 x 230/380 V AC

Control System
Closed Loop Servo Control

Base Material
Metal

Rated Insulation Voltage
Up to 380 V AC

Cabinet Material
Metal

Thickness
Standard Drive Depth

Protection Class
Class I

Rated Operation Voltage
230/380 V AC

Features
Overcurrent, Overload, and Thermal Protection; Modular Design; Robust Construction

Product Type
Servo Drive

Material
Industrial-Grade Metal Housing

Surface Finish
Powder Coated

Standard
INDRAMAT Factory Standard

Surface Color
Gray

Rated Voltage
3 x 230/380 V AC

Frequency (MHz)
50/60 Hz

Maximum Output Current
100 A Peak

Dimension (L*W*H)
Approx. 450 x 340 x 120 mm

Application
Industrial CNC & Automation Systems

IP Rating
IP20

Display Type
LED Status Display

Response Time
High Dynamic Response (<1 ms)

Weight
Approx. 7.5 kg

Firmware Version
Dependent on batch/production

Relative Humidity
< 95%, non-condensing

Safety Approvals
CE Marked (where applicable)

Storage Temperature Range
-25°C to +70°C

Operating Temperature Range
0°C to +45°C

Mounting Style
Panel Mount

Compatible Motor Types
AC Servo Motors, INDRAMAT MAC Series

Feedback Supported
Tacho/Resolver Feedback

Regenerative Braking
Integrated

About INDRAMAT TDM1.2-100-300-W1-000 SERVO DRIVE

Spotlight your automation setup with the INDRAMAT TDM1.2-100-300-W1-000 SERVO DRIVE, a sizzling best-seller renowned for its matchless performance. Built with outstanding industrial-grade metal housing and finished in grand powder-coated gray, this servo drive supports Tacho and Resolver feedback and works flawlessly with AC servo motors from the INDRAMAT MAC series. The rugged construction, integrated regenerative braking, and high dynamic response (<1 ms) ensure superb control and efficiency. Designed for single-channel, enclosed panel mounting, this IP20rated drive delivers up to 100 A peak current at 3 x 230/380 V AC. An unmatched choice for CNC and advanced automation applications.

Versatile Usage and Application Areas

The INDRAMAT TDM1.2-100-300-W1-000 SERVO DRIVE sets a benchmark for excellence in industrial environments. Ideally utilized in CNC machinery and automation systems, this grand drive thrives in manufacturing plants and precision motion control operations. Its robust closed-loop system, high current handling, and rapid response times make it indispensable for facilities requiring faultless performance. This matchless servo drive caters to diverse sectors, delivering reliable productivity in demanding plant applications across Indias industrial landscape.

Packaging, Shipping, and Certifications

Each INDRAMAT TDM1.2-100-300-W1-000 SERVO DRIVE is securely packaged to ensure outstanding protection during transit. Dispatching is swift, with express shipping options available for urgent requirements. Supplied across India, it meets the grandest safety and quality standards, including CE marking where applicable. Every shipment includes factory-standard certifications, verifying authenticity and compliance. Our efficient packaging and reliable logistics guarantee your product arrives quickly and in matchless condition, ready for immediate installation and use.

FAQs of INDRAMAT TDM1.2-100-300-W1-000 SERVO DRIVE:

Q: How does the INDRAMAT TDM1.2-100-300-W1-000 Servo Drive enhance performance in CNC systems?

A: The servo drive delivers high dynamic response and precise motion control, optimizing speed and accuracy in CNC and automation systems. Its integrated feedback options ensure detailed position and velocity management, essential for advanced industrial machinery.

Q: What are the main application areas for the INDRAMAT TDM1.2-100-300-W1-000 Servo Drive?

A: This drive excels in industrial automation and CNC applications, including manufacturing plants, robotics, assembly lines, and other environments where precise motor control is critical.

Q: When should I consider using this servo drive in my plant?

A: Choose this drive if your application demands robust closed-loop servo control, high peak currents, integrated protection features, and compatibility with INDRAMAT MAC series AC servo motors.

Q: Where does the INDRAMAT TDM1.2-100-300-W1-000 Servo Drive receive its main certifications?

A: The drive is CE marked where applicable, meeting rigorous European safety and quality standards. Each product is dispatched with relevant factory certifications ensuring compliance and reliability.

Q: What protection features are included in this servo drive?

A: It features built-in overcurrent, overload, and thermal protection to safeguard equipment and ensure consistent, long-term operation even in challenging industrial conditions.

Q: How is the device packaged and shipped within India?

A: Each unit is carefully packaged using industrial-grade materials and is dispatched through express shipping services. Packaging ensures the servo drive remains protected and ready for installation upon arrival.
