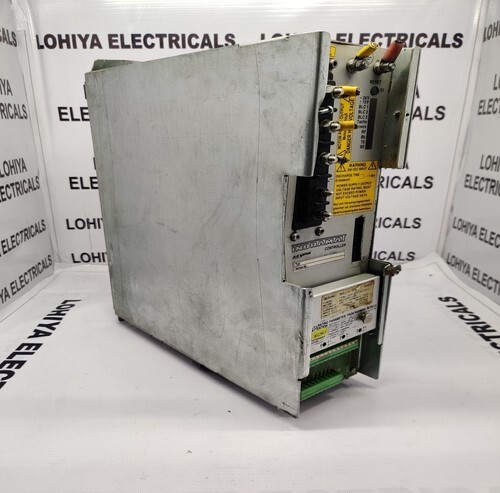

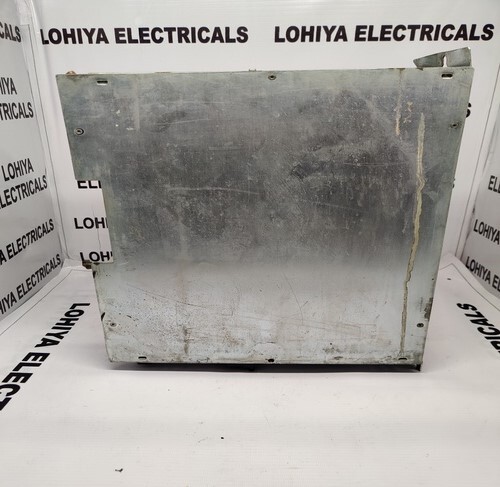

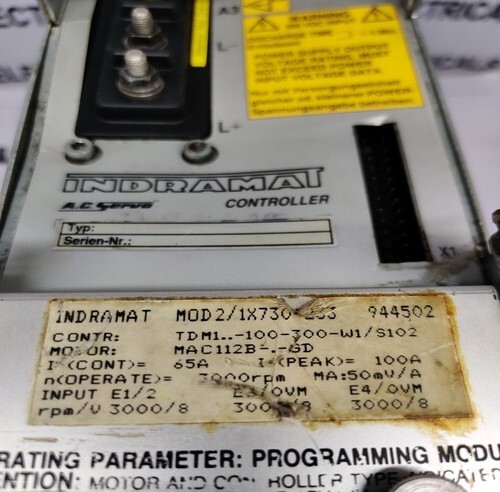

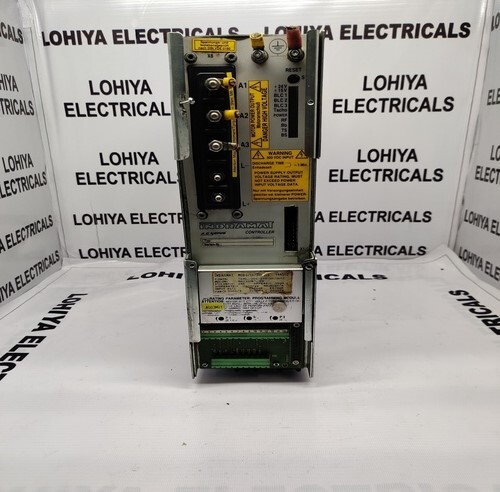

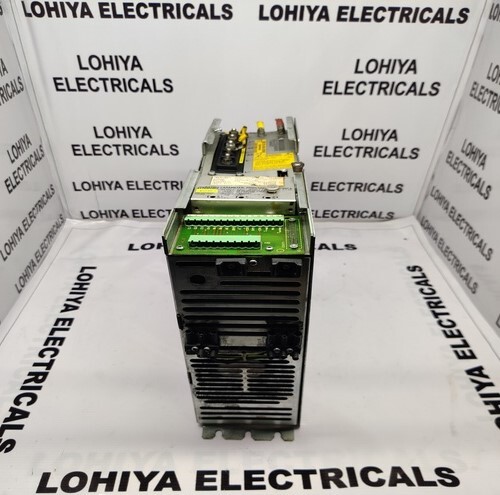

INDRAMAT TDM1..-100-300-W1/S102 SERVO DRIVE

Get a Price/Quote

MOQ : 1 Piece

INDRAMAT TDM1..-100-300-W1/S102 SERVO DRIVE Specification

Operating Voltage
230 - 300 V AC

Features
Overload Protection, Fault Diagnostics, Modular Construction

Current Rating
100 A

Components
Power Module, Control Board, Heatsink

Thickness
Standard Compact Form Factor

Cabinet Material
Metal with Powder Coat

Base Material
Heat Resistant Alloy

Panel Type
Control Cabinet Mounted

Connectivity Type
Terminal Block Connection

Way
Single

Cooling System
Forced Air Cooling

Protection Level
IP20

Cover Material
Polycarbonate

Rated Current
100 A

Rated Insulation Voltage
500 V

Protection Class
Class I

Rated Operation Voltage
300 V AC

Control System
Closed Loop (with Resolver Feedback)

Product Type
Servo Drive Module

Material
Industrial Grade Electronic Components

Surface Finish
Matte

Standard
IEC/EN 61800-5-1

Surface Color
Grey / Black

Rated Voltage
300 V

Frequency (MHz)
50/60 Hz

Maximum Output Current
100 A

Dimension (L*W*H)
395 mm x 105 mm x 285 mm

Application
CNC Machines, Automation Systems, Robotics

IP Rating
IP20

Display Type
Status LED Indicators

Environmental Compliance
RoHS Compliant

Response Time
< 1 ms

Regeneration Capability
Internal Resistor Provided

Mounting Type
Vertical Panel Mount

Series
TDM1 100/300-W1/S102

Encoder Interface
Suitable for Analog Resolver

Operating Temperature Range
0°C to +45°C

Storage Temperature Range
-25°C to +85°C

Relative Humidity
Max 85% (non-condensing)

Weight
10 kg (approx.)

Output Phases
3-Phase

Protection Features
Overtemperature, Overcurrent, Short-Circuit

About INDRAMAT TDM1..-100-300-W1/S102 SERVO DRIVE

Unlock unmatchable precision and reliability with the top-rated INDRAMAT TDM1..-100-300-W1/S102 SERVO DRIVE. Designed to ace demanding applications in CNC machines, automation systems, and robotics, this vertically panel-mounted drive offers superior control and unyielding safety. Reserve peak performance with robust overtemperature, overcurrent, and short-circuit protection. Its internal resistor ensures effective energy regeneration. Engineered from industrial-grade electronic components and housed in a heat-resistant, matte-finished alloy, this RoHS-compliant drive combines modular construction, rapid response (<1 ms), and advanced fault diagnostics for a truly superior automation solution.

Performance & Versatile Applications

The INDRAMAT TDM1..-100-300-W1/S102 SERVO DRIVE is extensively used in CNC machinery, robotics, and diverse automation systems. It excels in environments requiring three-phase, closed-loop operations, and guarantees rapid, reliable motor response. Notable features include built-in overload protection, diagnostic LED indicators, and compliance with IP20 and IEC/EN 61800-5-1 standards. With its modular, space-saving form, its ideal for modern control cabinets, ensuring efficient panel integration and uncompromising precision in dynamic industrial tasks.

Efficient Sample Policy & Order Fulfillment

Samples of the INDRAMAT TDM1..-100-300-W1/S102 SERVO DRIVE are available to support customer evaluation prior to full-scale deployment. We ensure seamless order completion, prompt dispatch from the designated FOB port in India, and timely arrival of the product at your facility. This process ensures you receive reliable equipment with assured quality. With a customer-centric approach, we expedite requests to align with your project timelines and operational demands.

FAQs of INDRAMAT TDM1..-100-300-W1/S102 SERVO DRIVE:

Q: How does the INDRAMAT TDM1..-100-300-W1/S102 SERVO DRIVE enhance automation systems?

A: This servo drive delivers precise motor control, rapid response times (under 1 ms), and advanced fault diagnostics, making it ideal for optimizing performance in CNC, robotics, and complex automation systems.

Q: What levels of protection are integrated into the servo drive?

A: The TDM1..-100-300-W1/S102 is equipped with overtemperature, overcurrent, and short-circuit protection, as well as internal regeneration resistance to ensure operational safety and durability.

Q: When can I expect my sample order to be dispatched after order completion?

A: Upon order completion, your sample is promptly dispatched from our Indian FOB port, with delivery timelines communicated for a smooth arrival process.

Q: Where is the INDRAMAT TDM1..-100-300-W1/S102 SERVO DRIVE typically installed?

A: Its designed for vertical panel mounting in control cabinets, making it well-suited for industrial automation setups and demanding machine environments.

Q: What are the main benefits of the drives modular construction?

A: The modular design simplifies installation, maintenance, and upgrades, improving system flexibility and reducing equipment downtime in industrial applications.
