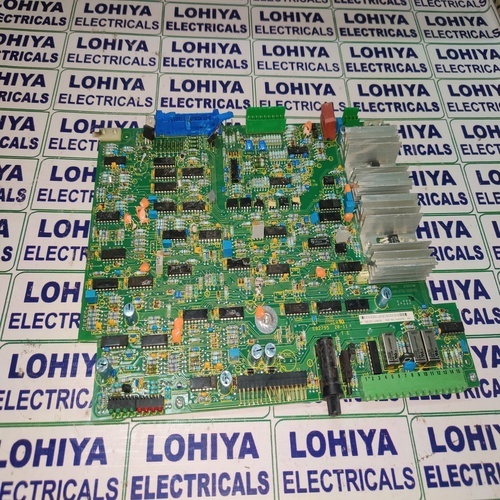

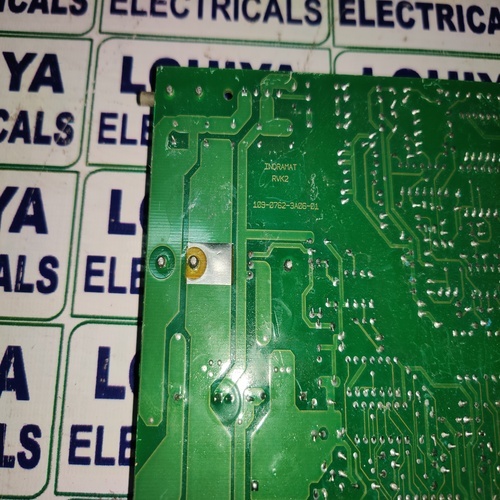

INDRAMAT RVK2 109-0762-3A06-01 109-0762-3B06-01 PCB CARD

Get a Price/Quote

INDRAMAT RVK2 109-0762-3A06-01 109-0762-3B06-01 PCB CARD Specification

Cover Material
No Cover

Protection Level
IP20

Current Rating
6A

Base Material
FR4 Epoxy

Rated Insulation Voltage
250V

Panel Type
PCB Panel

Control System
Motion Control

Protection Class
Class I

Connectivity Type
Edge Connector

Rated Current
6A

Rated Operation Voltage
24V DC

Cooling System
Passive

Components
SMD and Through-Hole

Features
High reliability, Industrial grade, Easy replacement

Thickness
1.6 mm

Way
2 Way

Operating Voltage
24V DC

Product Type
Control PCB Card

Material
Epoxy Resin Copper-Clad Laminate

Surface Finish
HASL (Hot Air Solder Leveling)

Standard
INDRAMAT OEM

Surface Color
Green

Rated Voltage
24V DC

Frequency (MHz)
50/60 Hz

Maximum Output Current
6A

Dimension (L*W*H)
180 x 110 x 20 mm

Application
Industrial Automation Drives

IP Rating
IP20

Condition
Used/Refurbished

Input/Output Interface
Multiple pin-edge connectors and signal interface

Manufacturer Compatibility
Bosch Rexroth Indramat

Storage Temperature
-20C to +70C

Mounting Type
Plug-in/Slot mount

Weight
Approx. 210g

PCB Layers
4-layer

Compatible Devices
INDRAMAT Drive Controllers

Operating Temperature Range
0C to +55C

Signal Type
Analog/Digital

Board Code
RVK2 109-0762-3A06-01 / 109-0762-3B06-01

About INDRAMAT RVK2 109-0762-3A06-01 109-0762-3B06-01 PCB CARD

Jump on this gilt-edged opportunity to secure the matchless INDRAMAT RVK2 109-0762-3A06-01 / 109-0762-3B06-01 PCB CARD at the lowest price. Built for Bosch Rexroth Indramat drive controllers, this ultimate industrial-grade PCB card ensures high reliability in motion control applications. Freshly refurbished and tested for peak performance, it features a robust epoxy resin copper-clad laminate construction, 4-layer circuitry, and HASL finish. With plug-in slot mounting, multiple pin-edge connectors, and a broad operating temperature range, this PCB delivers seamless, easy replacement and superior connectivity for automation systems.

Key Advantages and Application Uses

The INDRAMAT RVK2 109-0762-3A06-01 / 109-0762-3B06-01 PCB CARD stands out for its high reliability and robust construction, providing gilt-edged performance in industrial automation. Its epoxy resin copper-clad laminate surface makes it ideal for demanding environments. Used extensively by system integrators and maintenance engineers, it excels in motion control for Bosch Rexroth Indramat drive controllers, ensuring continuous operation at the heart of manufacturing, assembly, and automation sectors.

Sample Policy and Export Logistics

Expenditure-conscious buyers are welcome to request samples under our fair sample policy. With stock ready, we expedite dispatching from your preferred FOB port for global exports. The primary export markets include Europe, Asia, and North America, serving the automation industry worldwide. We ensure the ultimate in preparation and packing, so your replacement PCB card reaches you in pristine, ready-to-install condition, supporting your industrial operations with minimal downtime.

FAQs of INDRAMAT RVK2 109-0762-3A06-01 109-0762-3B06-01 PCB CARD:

Q: How do I install the INDRAMAT RVK2 109-0762-3A06-01 PCB CARD in my drive controller?

A: Installation is simple due to its plug-in/slot mount design. Slide the PCB card carefully into the designated slot on compatible Bosch Rexroth Indramat drive controllers, ensuring proper alignment and connection with the edge connectors.

Q: What operating conditions are suitable for this PCB card?

A: This matchless PCB card operates optimally between 0C and +55C, and can be safely stored between -20C and +70C. It provides reliable performance in industrial environments with an IP20 protection level.

Q: When should I consider replacing my current PCB card with this model?

A: Replace your existing PCB card if you observe frequent malfunctions, degraded performance, or compatibility issues with Bosch Rexroth Indramat drive controllers. This fresh, refurbished unit offers enhanced reliability and easy replacement.

Q: Where can I use the INDRAMAT RVK2 PCB Card in industrial automation?

A: This PCB card is specifically designed for use in Bosch Rexroth Indramat drive controllers applied across various industrial automation systems, including manufacturing lines, assembly robots, and motion control equipment.

Q: What makes this PCB card advantageous for automation projects?

A: Its industrial-grade build, ultimate reliability, and ease of replacement make it invaluable for automation projects. The card ensures matchless performance, reduces downtime, and supports both analog and digital signals for versatile control.
