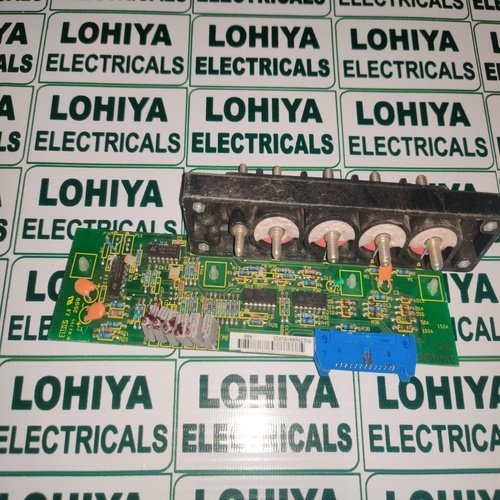

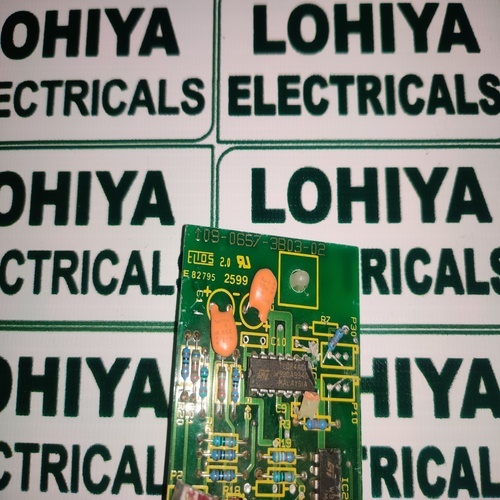

INDRAMAT 109-0657-3B03-02 109-0657-3A03-02 SM6 PCB CARD

Get a Price/Quote

INDRAMAT 109-0657-3B03-02 109-0657-3A03-02 SM6 PCB CARD Specification

Components
Precision Electronic Components and Connectors

Rated Insulation Voltage
500V

Connectivity Type
Edge Connector

Protection Class
Class I

Rated Current
5A

Cooling System
Convection (Open Air)

Base Material
FR4 Epoxy Glass

Control System
Bosch Rexroth Indramat Drive System

Rated Operation Voltage
24V DC

Current Rating
5A

Way
Multi-Layer

Operating Voltage
24V DC

Protection Level
Standard industrial protection

Cover Material
None (Open Card)

Features
High reliability, Quick installation, OEM compatible

Thickness
1.6 mm

Product Type
PCB Card

Material
High-grade Printed Circuit Board (PCB)

Surface Finish
HASL (Hot Air Solder Leveling)

Standard
OEM (Original Equipment Manufacturer)

Surface Color
Green

Rated Voltage
24V DC

Frequency (MHz)
50/60

Maximum Output Current
5A

Dimension (L*W*H)
235mm x 70mm x 18mm

Application
Industrial Automation, CNC Control Systems

IP Rating
IP20

Compliance
RoHS Compliant

Operating Temperature Range
0°C to +50°C

Mounting Type
Plug-in/Slide-in Card

Weight
Approx. 180 grams

Part Number Compatibility
109-0657-3B03-02, 109-0657-3A03-02, SM6

Storage Temperature Range
-20°C to +70°C

About INDRAMAT 109-0657-3B03-02 109-0657-3A03-02 SM6 PCB CARD

Highlighted as a premier choice for industrial automation, the INDRAMAT 109-0657-3B03-02 / 109-0657-3A03-02 SM6 PCB Card is a trending, hot deal for professionals seeking prodigious quality. Engineered from high-grade FR4 epoxy glass, this renowned OEM-compatible card ensures robust connectivity and high reliability within Bosch Rexroth Indramat Drive Systems. With plug-in/slide-in mounting, multi-layer design, and RoHS compliance, it stands out in both performance and safety. Ideal for industrial and CNC control systems, this PCB card promises fast installation, superior efficiency, and seamless integration for demanding electrical environments.

Exceptional Advantages and Versatile Usage

The INDRAMAT 109-0657-3B03-02 / 109-0657-3A03-02 SM6 PCB CARD delivers a distinct advantage in industrial applications with its high reliability and OEM compatibility. Suitable for rigorous usage as part of CNC control and automation systems, it supports a variety of demanding operations. Its quick-install plug-in design and robust electronic components make it ideal for both replacement and system integration, ensuring smooth, uninterrupted industrial processes for intensive use.

Global Export Markets and Convenient Transactions

Dispatched to major export markets, the INDRAMAT 109-0657-3B03-02 / 109-0657-3A03-02 SM6 PCB CARD is offered with flexible payment terms tailored for global clients. Prompt dispatching guarantees swift delivery worldwide, whether for procurement or sampling. Sample availability ensures clients can evaluate the product before bulk orders. The supplier leverages efficient export logistics to deliver solutions to industries worldwide, offering quality and convenience at every stage of the transaction.

FAQs of INDRAMAT 109-0657-3B03-02 109-0657-3A03-02 SM6 PCB CARD:

Q: How is the INDRAMAT SM6 PCB CARD typically used in industrial environments?

A: The SM6 PCB CARD is primarily used in industrial automation and CNC control systems, integrating seamlessly with Bosch Rexroth Indramat Drive Systems to provide precise and reliable electronic control.

Q: What features distinguish this PCB card as a hot deal in automation?

A: Key features include high reliability, OEM compatibility, quick plug-in installation, multi-layered construction, and compliance with industrial safety standards, making it a trending and valuable choice for professionals.

Q: When should I consider replacing my existing drive control PCB with this model?

A: Its recommended to replace your current PCB card when you notice system instability or failures, or during routine maintenance, to ensure optimal performance and prevent costly downtime.

Q: Where can this PCB card be installed?

A: This card is designed for use in compatible Bosch Rexroth Indramat Drive System units, making it suitable for a variety of industrial automation and CNC control system applications.

Q: What is the process for ordering and receiving a sample?

A: To obtain a sample, simply contact the supplier or trader. Once your request is processed and payment terms are agreed upon, the sample is dispatched swiftly for evaluation.

Q: How does the PCB cards protection level benefit industrial applications?

A: With its standard industrial protection (IP20, Class I), the card reliably shields sensitive components from dust and accidental contact, while the open design allows effective cooling.
