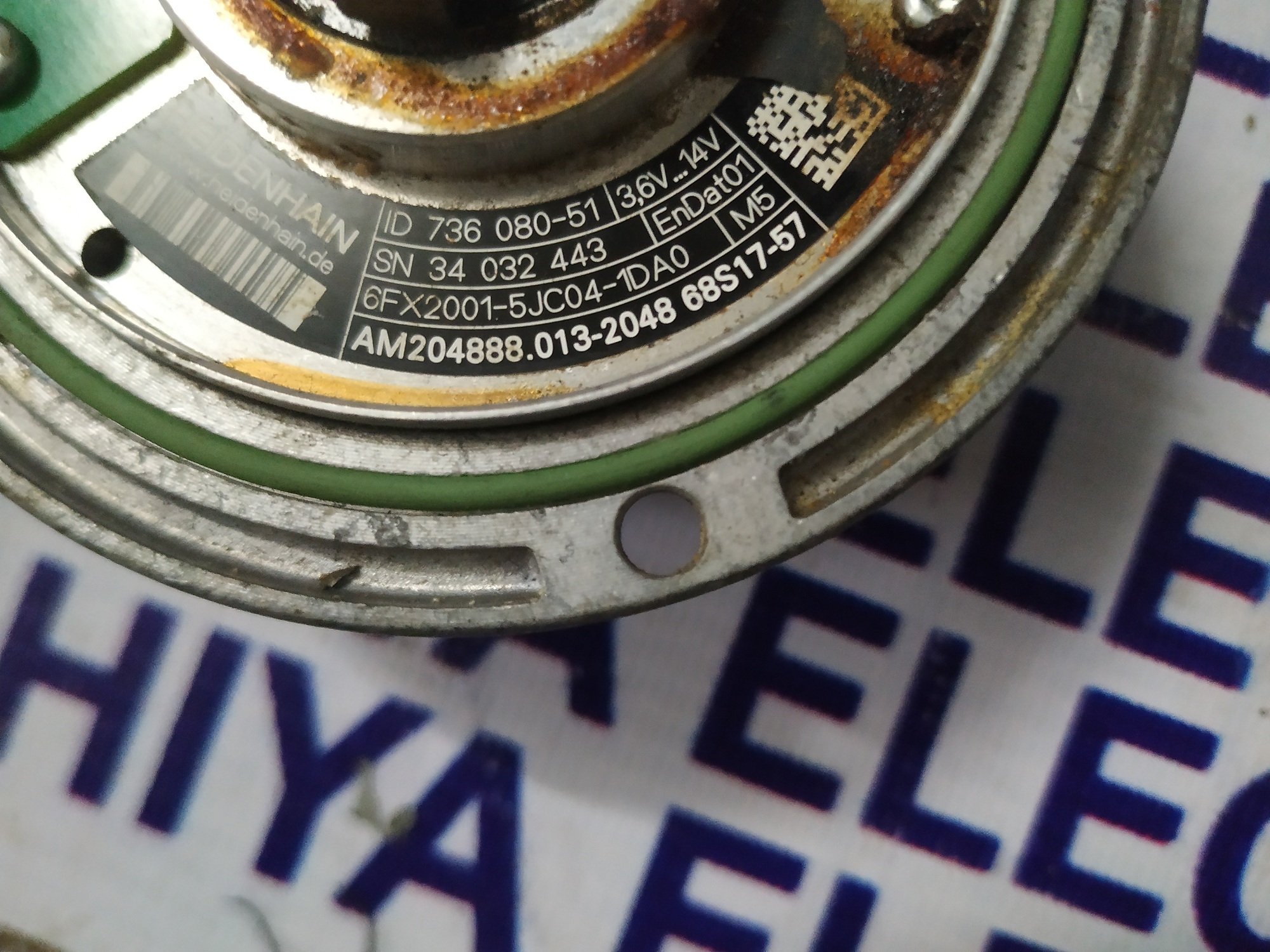

HEIDENHAIN ENCODER 736 080-51

Get a Price/Quote

HEIDENHAIN ENCODER 736 080-51 Specification

Features
High accuracy, Robust construction, Compact size

Protection Class
Class I

Rated Current
35 mA

Cover Material
Aluminium

Rated Insulation Voltage
500 V

Control System
Position Feedback

Way
Single

Current Rating
35 mA

Components
Optical Disc, Signal Circuit, Housing

Cooling System
Passive

Thickness
25 mm

Protection Level
IP64

Operating Voltage
5 V DC

Base Material
Aluminium

Connectivity Type
Cable, 12-pin Connector

Cabinet Material
Metal

Rated Operation Voltage
5 V DC

Product Type
Rotary Encoder

Material
Aluminium Alloy

Surface Finish
Anodized

Standard
HEIDENHAIN Manufacturing Standard

Surface Color
Silver

Rated Voltage
5 V DC (+/- 10%)

Frequency (MHz)
2.5 MHz

Maximum Output Current
50 mA

Dimension (L*W*H)
58 mm x 25 mm

Application
CNC Machines, Robotics, Automation systems

IP Rating
IP64

Display Type
Incremental Digital Output

Resolution
2500 pulses per revolution

Maximum Speed
6000 RPM

Vibration Resistance
Up to 100 m/s² (10...2000 Hz)

Cable Length
2 m standard

Weight
Approx. 0.15 kg

Shock Resistance
Up to 1000 m/s² (6 ms)

Temperature Range
-10°C to +70°C

Shaft Diameter
10 mm

Mounting Type
Clamping flange

Shaft Type
Solid

Connector Type
M23, 12-pin

Output Signal Format
TTL/RS422 (differential)

About HEIDENHAIN ENCODER 736 080-51

The HEIDENHAIN ENCODER 736 080-51 stands as a preeminent solution for precision motion control, sought-after in demanding industries. Featuring a robust solid shaft (10 mm), this incremental encoder delivers highly accurate 2500 pulses per revolution with TTL/RS422 output and withstands up to 6000 RPM. Engineered for inestimable reliability, it offers excellent shock and vibration resistance, IP64 protection, and operates across -10C to +70C. With an anodized aluminium alloy build and M23 12-pin connectivity, this compact, silver-finished unit is highly recommended for CNC machines, robotics, and automation systems. Try NowOrder to experience superior quality from an industry-leading supplier and trader in India.

Versatile Application Method and Areas

The HEIDENHAIN ENCODER 736 080-51 is integrated using its compact clamping flange for stable mounting and optimal signal transmission via the 12-pin M23 connector and included 2 m cable. Ideally utilized in CNC machines and robotics, its precise position feedback excels in automation systems, conveyor technology, and smart manufacturing lines. Its robust construction enables other applications in packaging machinery and material handling, ensuring consistent and accurate incremental digital output in harsh industrial environments.

Reliable Supply, Competitive Rate, and Packaging Solutions

We maintain a strong supply ability for the HEIDENHAIN ENCODER 736 080-51 to meet urgent orders at a competitive sale price. Each encoder is carefully packaged for safe transport to ensure it arrives in pristine condition. We offer flexible payment terms and favorable exchange options for bulk or repeat requirements. Our favorable rate structures make this high-quality product accessible for diverse industry needs, supporting seamless upgrade or replacement processes in your systems.

FAQs of HEIDENHAIN ENCODER 736 080-51:

Q: How is the HEIDENHAIN ENCODER 736 080-51 typically installed?

A: The encoder is installed using its clamping flange, ensuring secure attachment to machinery. The M23, 12-pin connector allows for reliable connectivity with control systems, and the 2-meter standard cable simplifies integration into existing setups.

Q: What industries benefit the most from this encoder model?

A: Industries such as CNC machining, robotics, automation, packaging, and material handling benefit greatly due to the encoders high precision, reliability, and resistance to vibration and shock.

Q: When should I consider using this encoder in my application?

A: You should opt for this encoder when your application demands high accuracy, robust construction, and reliable position feedback in challenging environments where mechanical stresses and temperature fluctuations are present.

Q: Where can this encoder be purchased in India?

A: The HEIDENHAIN ENCODER 736 080-51 can be ordered from authorized suppliers and traders across India. Contacting recognized distributors ensures you receive genuine products at the sale price with warranty support.

Q: What is the process for customizing cable length or connector options?

A: For specialized needs, discuss your requirements with the supplier at the ordering stage. They can advise on available customization options and guide you through any additional process for tailored cable lengths or connector changes.

Q: What are the primary benefits of using this encoder in automation systems?

A: This encoder provides precise incremental digital output, robust protection (IP64), and shock resistance, which enable reliable position feedback and control, enhancing overall system performance and minimizing downtime.
