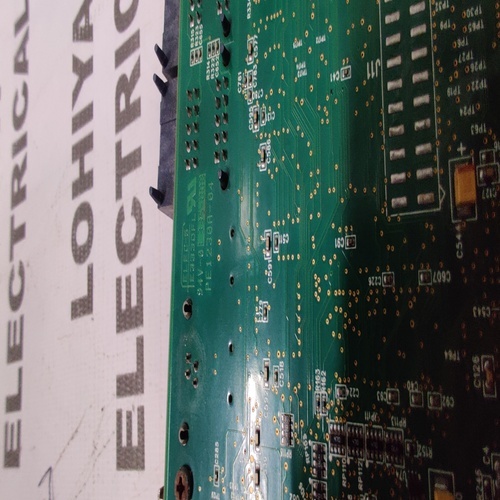

HAAS PE1230A04 PCB CARD

Get a Price/Quote

HAAS PE1230A04 PCB CARD Specification

Working Temperature
0C to 60C

Output Current
1.5 A

Operating Temperature
0C to 60C

Phase
Single Phase

Rated Current
1.5 A

Output Type
Digital

Features
High Reliability, Compatible with HAAS CNC Controller, LED Status Indication

Current Range
0.1 A to 1.5 A

Power Supply
24 V DC External Supply

Power Factor
>0.95

Noise Level
<50 dB

Connector Type
Edge Card Connector

Cooling Method
Passive

Rated Power
35 W

Application
Industrial Automation, CNC Machine Controller

Product Type
PCB Card

Output Power
35 W

Output Frequency
50 Hz

Input Voltage
24 V DC

Voltage Protection
Overvoltage and Reverse Polarity Protection

Efficiency
>90%

Material
PCB Fiber Glass (FR4)

Line Regulation
< 0.1%

Storage Temperature
-40C to 85C

Weight
150 g

Status Indicator
Integrated LED

Switching Device Type
Solid State Relays

Minimum Insulation Resistance
>100 M

Isolation Voltage
1500 V AC

Protection Class
IP20

Communication Interface
Serial/Parallel (per model)

Mounting Type
Plug-in Slot

Firmware
Upgradeable

Compliance
RoHS, CE

Dimensions
160 mm x 100 mm x 12 mm

Relay Contact Rating
5A at 250V AC (where applicable per sub-model)

PCB Layers
4 Layers

About HAAS PE1230A04 PCB CARD

Find the magnificent HAAS PE1230A04 PCB CARD and unlock inestimable value for your industrial automation needs. This top-ranking solution features a plug-in slot mounting type, robust FR4 PCB construction, and a price cut that ensures remarkable savings. Delivering high efficiency (>90%) and solid-state relay switching, this card supports 35 W output and operates at 24 V DC with IP20 protection. Built for CNC machine controllers, it boasts advanced safety features like overvoltage and reverse polarity protectionall certified RoHS and CE. Compatible with HAAS controllers, offering firmware upgrades and integrated LED indicators for superior usability.

Versatile Usage & Advanced Features of the HAAS PE1230A04 PCB CARD

Perfect for industrial automation and CNC machine controllers, the HAAS PE1230A04 PCB CARD offers unmatched functionality. Features include high reliability, excellent efficiency, digital outputs, and passive cooling. Its extra features, such as integrated LED status indication and upgradable firmware, enhance system monitoring and future-proofing. With four PCB layers and edge card connector, it integrates seamlessly, delivering solid performance and outstanding longevity for critical applications.

Certifications, Supply, and Secure Transactions

The HAAS PE1230A04 PCB CARD meets rigorous RoHS and CE certifications, ensuring compliance and safety. Shipped goods are handled by trusted suppliers throughout India, guaranteeing timely and reliable delivery. With substantial supply ability, you can rest assured about market value stability and prompt order fulfillment. Flexible payment terms make the outlay process smooth and accessible, catering to diverse procurement needs and establishing trust with buyers.

FAQs of HAAS PE1230A04 PCB CARD:

Q: How does the HAAS PE1230A04 PCB CARD benefit industrial automation systems?

A: The card provides high reliability, excellent switching efficiency, and digital output control, making it ideal for automating CNC machines and similar applications where precision and safety are essential.

Q: What features ensure the safety and longevity of the PCB card during operation?

A: Overvoltage and reverse polarity protection, IP20-rated enclosure, and robust FR4 fiber glass material ensure safe and durable performance even in demanding environments.

Q: When should I consider upgrading the firmware on the HAAS PE1230A04 PCB CARD?

A: Firmware upgrades are recommended when new updates become available for enhanced functionality or system compatibility, ensuring your system remains up-to-date and robust.

Q: Where can I use this PCB card within industrial settings?

A: It is designed for application in CNC machine controllers, factory automation, and other industrial equipment needing digital output control and high-current relay switching.

Q: What is the process for verifying the authenticity and compliance of the product?

A: Each unit is RoHS and CE certified, fully documented, and supplied through reputable Indian traders, ensuring compliance, authentic sourcing, and market-standard quality.
