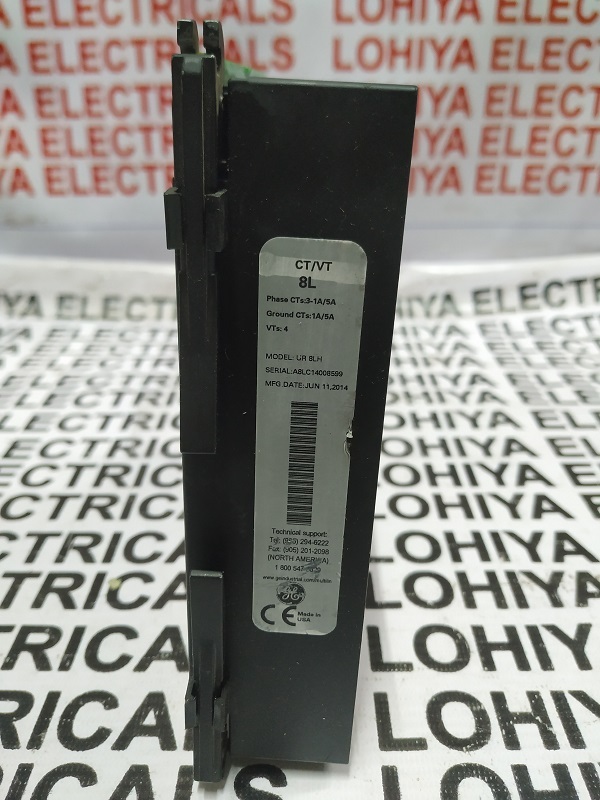

GE Multilin UR 8LH CT/VT 8L MODULE

Get a Price/Quote

GE Multilin UR 8LH CT/VT 8L MODULE Specification

Connectivity Type
Plug-in Modular

Components
8-Channel CT/VT Input Terminals

Rated Current
5A

Way
8 Way

Rated Operation Voltage
100-250V AC

Protection Level
Module Level Insulation, Overcurrent Protection

Panel Type
Universal Relay Module

Rated Insulation Voltage
300V

Base Material
Industrial Plastic

Operating Voltage
110-250V AC/DC

Cover Material
Plastic

Control System
Microprocessor-Based Control

Features
Reliable measurement, Modular installation, High isolation, Hot-swap capability

Current Rating
1A to 5A

Thickness
40mm

Protection Class
Class I

Cooling System
Passive

Product Type
GE Multilin UR 8LH CT/VT Module

Material
High-grade Industrial Plastic

Surface Finish
Matte

Standard
IEC 60688 / ANSI

Surface Color
Black

Rated Voltage
250 V AC

Frequency (MHz)
50/60 Hz

Maximum Output Current
5A

Dimension (L*W*H)
110mm x 35mm x 190mm

Application
Protection, Monitoring and Control - Substations & Electrical Panels

IP Rating
IP20

Display Type
No Integrated Display (Controlled via UR Main Chassis)

Input Type
CT & VT Analog Signal

Device Function
Isolation, Protection, Analog Signal Conditioning

Voltage Isolation
2500V RMS

Mounting Type
Plug-In Module for GE UR Chassis

Operating Temperature
-40 to +70C

Humidity
0-95% Non-condensing

Installation
Tool-less Modular Installation

Compatibility
UR Series Relays (B30, C90, D60, F35, G30, L90, etc.)

Hot Swap Capability
Yes

Response Time
< 5 ms

Weight
0.5 kg

Storage Temperature
-40 to +85C

Channels
8 Analog Channels

Insulation Resistance
>100 M at 500V DC

GE Multilin UR 8LH CT/VT 8L MODULE About

Pick Yours from our exclusive stock of GE Multilin UR 8LH CT/VT 8L Modulesan exquisite, highly recommended choice for advanced substation monitoring and control. Noble in design with a lavish matte black finish, this plug-in module boasts hot-swap capability, eight analog channels, and robust isolation exceeding 2500V RMS. Installation is effortlessly tool-less, and performance reliability is enhanced by IEC/ANSI compliance and high-grade industrial plastic. Now on Clearancesecure highest protection, modular scalability, and trusted measurement accuracy for UR Series Relays at unbeatable value.

How to Use & Application of the GE Multilin UR 8LH CT/VT 8L Module

The GE Multilin UR 8LH CT/VT 8L Module is designed for seamless plug-in installation in UR Series Relays. Direction of use is straightforwardsimply insert into the UR chassis for immediate integration. Used for protection, monitoring, and control, this noble module acts as an analog signal conditioner and isolator. Primarily used as a core component in substations and electrical panels, it ensures the highest level of operational safety and measurement accuracy.

Sample Availability, Certifications & Delivery of the GE Multilin UR 8LH CT/VT 8L Module

Samples are available upon request to validate suitability and performance, with each module adhering to IEC 60688 and ANSI standards for assured certification. Goods transport is carried out with secure shipping partners, ensuring your clearance item arrives safely and on schedule. Typically, delivery time ranges from 2 to 7 working days, depending on destination and shipping method. Rest assuredtimely arrival and safety of your product are our priorities.

FAQs of GE Multilin UR 8LH CT/VT 8L MODULE:

Q: How do I install the GE Multilin UR 8LH CT/VT 8L Module in my UR Series chassis?

A: Installation is tool-less and modular. Simply plug the module into its designated slot on the UR Series chassisno tools or complex procedures required. The hot-swap feature allows for easy replacement even while the system is operational.

Q: What applications is the GE Multilin UR 8LH CT/VT 8L Module most suitable for?

A: This module is ideal for protection, monitoring, and control within electrical substations and panels. It is specifically designed to handle CT and VT analog signals for UR Series Relays like B30, C90, D60, and more.

Q: Where can I obtain sample units for testing?

A: Sample units can be requested directly from your trusted supplier or trader in India. This allows users to assess the products compatibility and performance before making a bulk purchase.

Q: What benefits does the modules hot-swap capability offer?

A: Hot-swap capability allows for the module to be replaced or upgraded without powering down the system, ensuring continuous operation and minimal downtime in critical settings.

Q: What certifications does the GE Multilin UR 8LH CT/VT 8L Module carry?

A: The module complies with IEC 60688 and ANSI standards, confirming its safety, durability, and performance for industrial use.

Q: How long does delivery take once I place an order?

A: Standard delivery times range from 2 to 7 working days, depending on your location and the chosen goods transport method. Secure shipping processes guarantee your orders swift and safe arrival.
