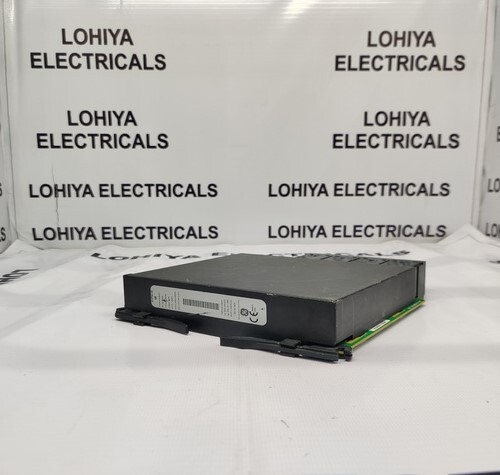

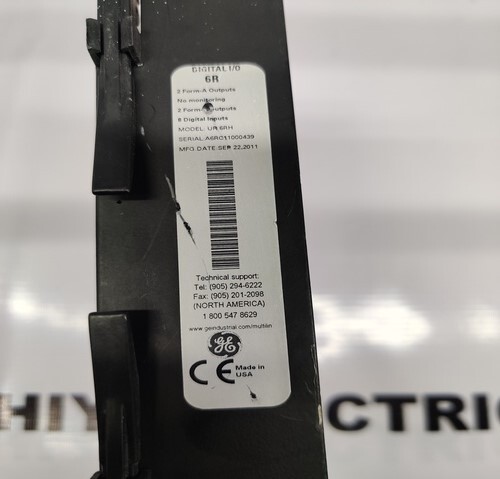

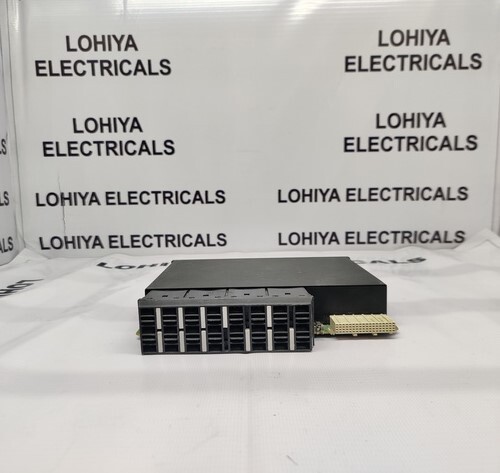

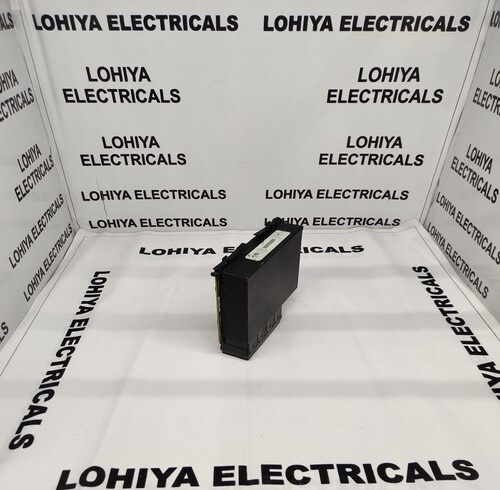

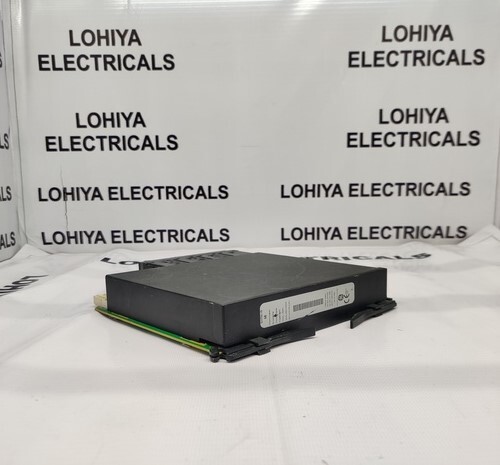

GE MULTILIN UR 6RH DIGITAL I/O MODULE

Get a Price/Quote

MOQ : 1 Piece

GE MULTILIN UR 6RH DIGITAL I/O MODULE Specification

Connectivity Type
Pluggable connectors, rear terminal blocks

Current Rating
5A per output relay contact

Way
8 Digital Inputs / 8 Digital Outputs

Protection Level
Pluggable front connectors with rear termination, conformal coated

Protection Class
Class I

Base Material
High-quality FR4 PCB

Cover Material
Composite/polycarbonate (protective shroud)

Rated Insulation Voltage
2 kV RMS (for 1 min)

Rated Current
5A (per output relay)

Panel Type
Module-mount (rack-mounted in UR series)

Features
8 digital inputs, 8 digital outputs, Status indication LEDs, Hot-pluggable, Modular design

Components
Solid-state input circuitry, dry contact or wetted, relay output contacts

Control System
Universal Relay (UR) Series compatible

Operating Voltage
24V / 48V / 125V / 250V (AC/DC, model dependent)

Rated Operation Voltage
250V AC / 150V DC

Thickness
Approx. 2 cm (PCB/module only)

Cabinet Material
N/A (module-based, fits in standard relay chassis)

Cooling System
Passive (fanless)

Product Type
Digital I/O Module

Material
Industrial-grade PCB, electronic components

Surface Finish
Matte with protective coating

Standard
IEC 60255 / IEEE standards

Surface Color
Multicolored (as per GE Multilin design)

Rated Voltage
250V AC/150V DC (max), depending on configuration

Frequency (MHz)
50/60 Hz compatible

Maximum Output Current
5A @ 250VAC or 30VDC

Dimension (L*W*H)
180 mm x 40 mm x 130 mm (typical)

Application
Industrial electrical protection, control, and automation

IP Rating
IP20 (when mounted in chassis)

Display Type
Status LEDs per channel

Communication
Module signals via UR rack backplane

Maximum Switching Voltage
250VAC / 30VDC

Hot Swap Support
Supported in UR Series racks

Isolation
Optically isolated channels

Weight
0.3 kg (approximate)

Operating Temperature Range
-40°C to +70°C

Humidity
5% to 95% non-condensing

Model
UR-6RH

Mounting Type
Plug-in module for UR chassis

Response Time
<5 ms (typical relay actuation)

Environmental Ratings
Conformal coating for harsh environments

Storage Temperature Range
-40°C to +85°C

Relay Type
Electromechanical, Form C contacts

Approvals and Certifications
CE, UL, cUL

About GE MULTILIN UR 6RH DIGITAL I/O MODULE

Discover the distinguished new release in industrial automation with the GE Multilin UR 6RH Digital I/O Module. Engineered for exceptional performance, this plug-in module champions reliability and precise control for UR chassis environments. Enjoy instant savings and unparalleled protection with optically isolated channels, robust electromechanical relays, and universal compatibility. Conformal coating ensures durability in harsh settings, while hot-swap support maximizes uptime. Grab yours now and experience unmatched safety, rapid response, and seamless integration in your industrial control and protection systems.

Versatile Industrial Applications for the UR 6RH Module

The GE Multilin UR 6RH Digital I/O Module is expertly designed for demanding commercial and industrial environments. This advanced device finds ideal usage in power system protection, process automation, and electrical control. Suitable for industries such as utilities, oil & gas, manufacturing, and large infrastructure, it supports universal relay (UR) series compatibility. With its modular design, the 6RH module seamlessly integrates into commercial spaces, providing secure, high-speed digital signaling and status indication for critical applications.

Sample Arrivals, Policy, and Delivery Terms for the UR 6RH

Samples for the GE Multilin UR 6RH Digital I/O Module are available to prospective customers under a clear sample policy. To facilitate project planning, an estimated arrival date will be communicated once sample requests are processed. The handover occurs via a designated FOB port to ensure smooth international logistics. Buyers are encouraged to contact us regarding sample availability, policy specifics, and port options to streamline the evaluation and procurement process.

FAQs of GE MULTILIN UR 6RH DIGITAL I/O MODULE:

Q: How is the GE Multilin UR 6RH Digital I/O Module typically used?

A: The UR 6RH module is commonly used in industrial environments for monitoring and controlling electrical systems, providing digital input and output functions in relay-based protection and automation systems.

Q: What are the commercial benefits of choosing the UR 6RH module?

A: Users benefit from robust reliability, rapid relay actuation (<5 ms), hot-pluggable installation, and optically isolated channels, reducing downtime and enhancing operational safety in harsh environments.

Q: When can I expect arrival of a sample for evaluation?

A: Upon processing your request, an estimated sample arrival date will be provided. Handover is arranged at your selected FOB port to ensure timely and secure delivery.

Q: Where is the UR 6RH module usually installed?

A: The module is installed as a plug-in unit within UR series chassis, making it suitable for rack-mounted relay panels in substations and control rooms.

Q: What is the process for integrating this module into an existing UR control system?

A: Integration involves plugging the module into the UR series chassis, securing rear terminal block connectivity, and using the control system to configure and monitor channel status via status LEDs.

Q: How does the 6RH module benefit industrial automation and protection applications?

A: Its exceptional switching capabilities, modular hot-swap design, and rugged build ensure dependable control and real-time system protection across diverse industrial applications.
