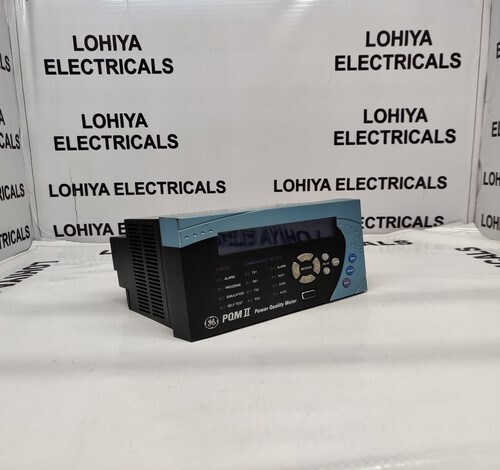

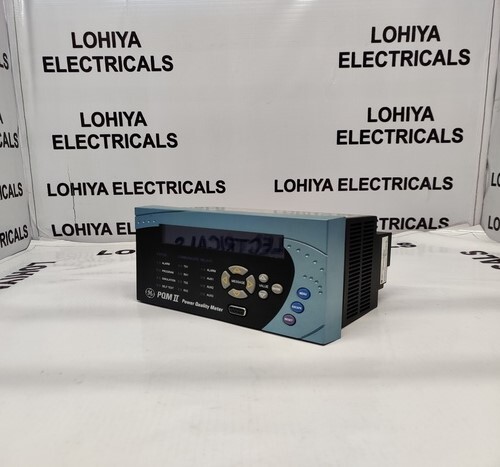

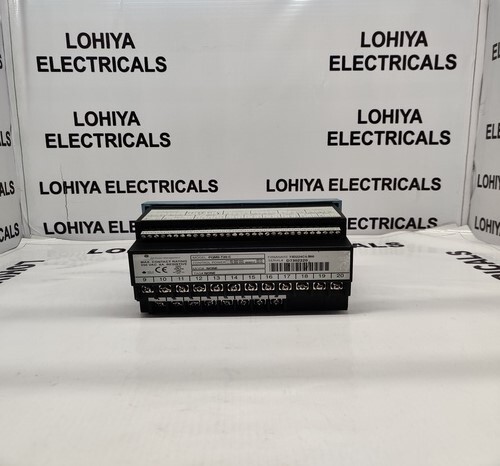

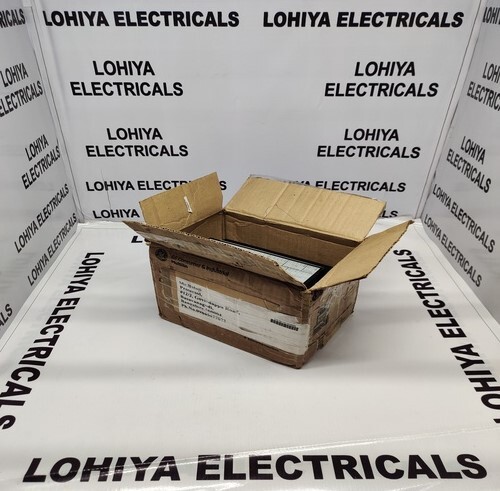

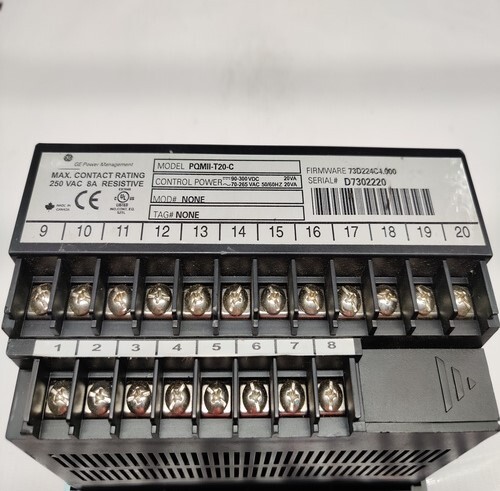

GE MULTILIN PQMII-T20-C POWER QUALITY METER ( NEW OPEN B0X )

Get a Price/Quote

MOQ : 1 Piece

GE MULTILIN PQMII-T20-C POWER QUALITY METER ( NEW OPEN B0X ) Specification

Rated Current
1A/5A (Selectable via CT)

Current Rating
1A/5A (Selectable)

Thickness
Approx. 140 mm depth

Rated Insulation Voltage
2kV RMS (Between inputs and enclosure)

Cooling System
Passive Air Cooled

Way
Multiple Input Channels

Control System
Programmable Microcontroller Based

Protection Level
Front panel IP54

Protection Class
II

Operating Voltage
90-250 VAC/DC

Cover Material
Polycarbonate

Panel Type
Flush Mount Panel Meter

Components
Microprocessor, LCD Display, Power supply module

Base Material
ABS / Polycarbonate

Features
Disturbance recording, harmonic analysis, waveform capture, real-time event/alarm reporting, memory backup

Connectivity Type
RS485 Serial, Modbus RTU, Optional Ethernet

Cabinet Material
ABS/Polycarbonate

Rated Operation Voltage
90-250 VAC/DC

Product Type
Power Quality Meter

Material
Industrial Grade ABS/Polycarbonate Enclosure

Surface Finish
Textured

Standard
IEC 61000, UL Listed

Surface Color
Black / Grey

Rated Voltage
90-250 VAC/DC

Frequency (MHz)
45-65Hz (Power Frequency)

Maximum Output Current
5A (Input Sensing)

Dimension (L*W*H)
144 x 144 x 140 mm (approx.)

Application
Power Quality Monitoring, Event & Fault Logging, Utility and Industrial Power Systems

IP Rating
IP54 (front)

Display Type
Backlit LCD Graphical Display

About GE MULTILIN PQMII-T20-C POWER QUALITY METER ( NEW OPEN B0X )

Discover the ephemeral excellence of the GE Multilin PQMII-T20-C Power Quality Meter (NEW OPEN BOX), where pristine data insights meet robust industrial design. Explore power quality monitoring with this panel-mounted meter, equipped for universal input voltage (90250 VAC/VDC) and offering compatibility with both 1A and 5A CT/PT types. The device offers best-in-class measurement of voltage, current, frequency, harmonics, and THDcapturing transient waveforms for thorough analysis. Designed in premium ABS/polycarbonate with IP54-rated protection, find unmatched reliability and advanced communication via Modbus RTU and optional Ethernet.

Directions, Placement, and Application Highlights

Mount the GE Multilin PQMII-T20-C on flush panel surfaces using screw flanges for secure attachment. Ideal for utility and industrial power system environments, its textured ABS/polycarbonate enclosure ensures durability. Apply the meter on front-panel installations where real-time power quality analysis is critical, covering voltage, current, and harmonic demands. Use for event logging, disturbance recording, and waveform capture, benefitting both operations and maintenance teams.

Export Markets, Dispatch Process, and Shipping Policies

Shipped goods from India are promptly dispatched from premium FOB ports, ensuring safety and swift delivery to main export markets worldwide. The sample policy accommodates supplier and trader requests for inspection. Goods are securely packaged and ready for international transit, reflecting quality assurance through excellent exporting standards, meticulous documentation, and compliance with IEC 61000 and UL protocols.

FAQs of GE MULTILIN PQMII-T20-C POWER QUALITY METER ( NEW OPEN B0X ):

Q: How is the GE Multilin PQMII-T20-C Power Quality Meter installed for best performance?

A: The meter should be panel-mounted using screw flanges for secure fitting on flush surfaces, ensuring optimal operation and protection against dust and moisture as per IP54 rating.

Q: What measurement parameters can users explore with this device?

A: Users can monitor voltage, current, power, frequency, harmonics (up to 63rd), THD, energy consumption, power factor, and demand, while also benefiting from waveform capture and event/fault logging features.

Q: Where is this power quality meter typically used?

A: It is commonly applied in utility and industrial power systems, especially in areas requiring precise power monitoring, event recording, disturbance analysis, and reliable communication protocols.

Q: Which processes does the GE Multilin PQMII-T20-C support for data communication and time synchronization?

A: The meter supports Modbus RTU and optional DNP 3.0/Ethernet TCP/IP for communication, while time synchronization is managed via the communication port, guaranteeing accurate event and fault logging.

Q: What benefit does onboard event recording provide?

A: The onboard memory enables comprehensive event and fault logging, allowing users to diagnose disturbances quickly and enhance system reliability by reviewing historical power quality data.
