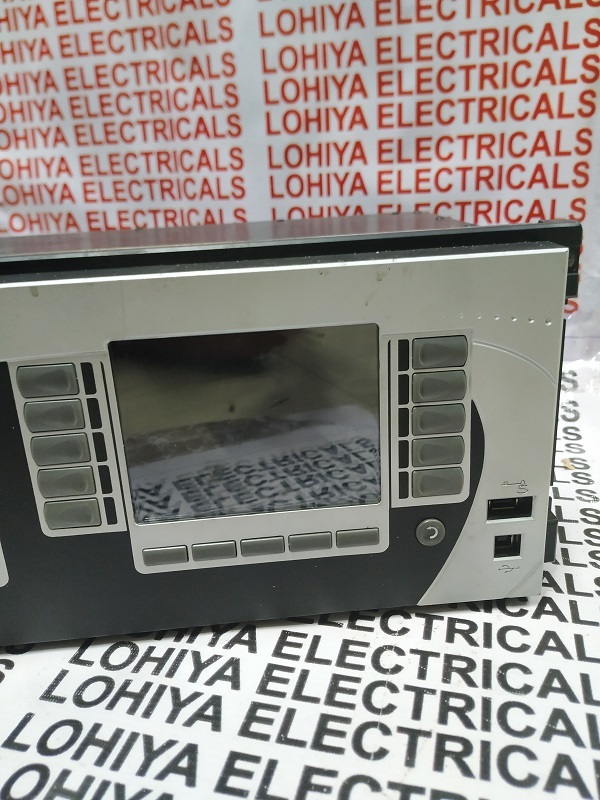

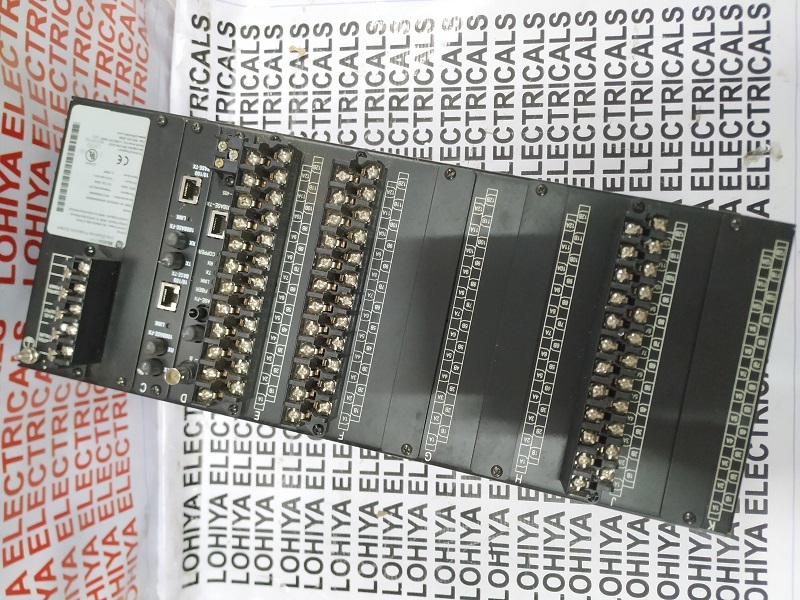

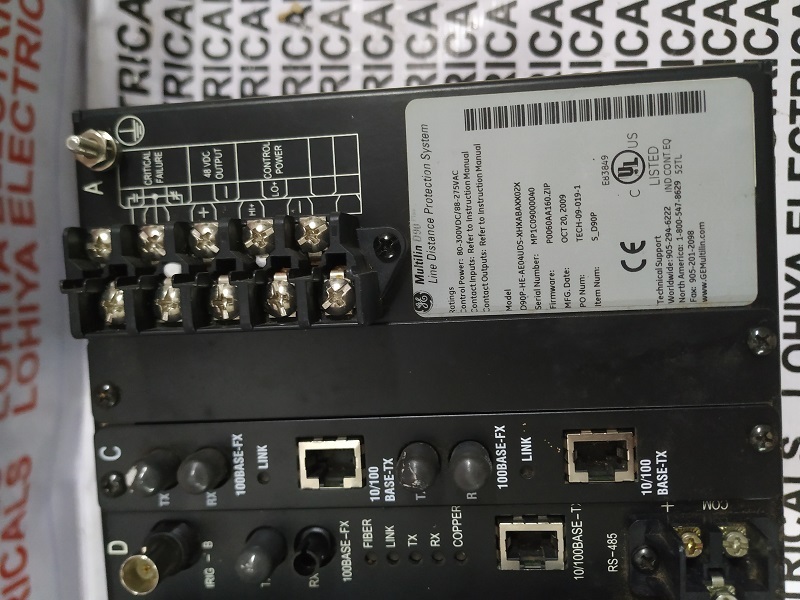

GE MULTILIN D90 PLUS LINE DISTANCE PROTECTION SYSTEM D90P-HE-AE04UDS-XHXABAXX02X

Send Inquiry

Request To Call Back

GE MULTILIN D90 PLUS LINE DISTANCE PROTECTION SYSTEM D90P-HE-AE04UDS-XHXABAXX02X

Get a Price/Quote

GE MULTILIN D90 PLUS LINE DISTANCE PROTECTION SYSTEM D90P-HE-AE04UDS-XHXABAXX02X Specification

Application
Transmission line protection and automation

Rated Current
5A continuous, 30A for 3s

Phase
Three Phase

Cooling Method
Natural convection

Current Range
1A / 5A nominal

Operating Temperature
-25C to +70C

Output Current
Up to 5A relay contacts

Power Factor
>0.95

Connector Type
Detachable terminal blocks

Output Type
Digital and relay outputs

Working Temperature
-25C to +70C

Features
Distance protection, Differential protection, Auto-reclosing, Breaker failure, Internal recording and diagnostics, IEC 61850/103, DNP 3.0, Modbus, Event and waveform recording, Programmable logic

Noise Level
Low (industrial grade)

Power Supply
Universal power supply 24250 VDC / 48240 VAC

Product Type
Line Distance Protection System

Output Frequency
50 Hz / 60 Hz

Input Voltage
24250 V DC / 48240 V AC

Voltage Protection
Integrated

Efficiency
Up to 98%

Material
High-grade industrial steel enclosure

Line Regulation
Automatic digital regulation

Storage Temperature
-40C to +85C

Weight
Approx. 5.5 kg

Communication Protocols
IEC 61850, IEC 60870-5-103, Modbus, DNP3.0, Serial, Ethernet

Time Synchronization
IRIG-B, SNTP, GPS compatible

User Interface
Front panel keypad and HMI

Mounting Type
Flush/Panel Mounting

Fault Recorder
Oscillography, Waveform Capture

Event Recorder
Up to 1024 events

Redundancy
Dual communication ports, redundant power supply (optional)

Protection Elements
Distance (21), Overcurrent (50/51), Earth Fault (50N/51N), VT/PT Failure, Breaker Failure, Auto Reclose, Teleprotection

Firmware Upgrade
Field upgradable

Display
Large LCD and LED indicators

Model Number
D90P-HE-AE04UDS-XHXABAXX02X

About GE MULTILIN D90 PLUS LINE DISTANCE PROTECTION SYSTEM D90P-HE-AE04UDS-XHXABAXX02X

Unlock unprecedented savings and sublime performance with the GE Multilin D90 Plus Line Distance Protection System D90P-HE-AE04UDS-XHXABAXX02X. Ephemeral faults are swiftly handled via advanced protection elements like Distance, Overcurrent, Earth Fault, and more, delivering ravishing reliability for transmission line automation. Personalise your interface through a large LCD, LED indicators, and front panel keypad. With multi-protocol communication, dual redundancy options, automatic digital regulation, and sturdy industrial steel protection, this industrial marvel ensures seamless integration, field upgradability, and supreme operational efficiency.

Versatile Usage & Application

GE Multilin D90 Plus is designed for critical transmission line protection and automation, suiting utility substations, power plants, and industrial networks. Its usage type centers on fault detection, quick isolation, and grid reliability, making it a sublime choice for high-demand three-phase network protection. Its unique configurable logic functions allow unprecedented flexibility in adapting to specific system requirements, making it indispensable for engineers seeking stable operation in the most challenging environments.

Swift Delivery & Sample Policy

Experience the advantage of the lowest price alongside efficient Packing & Dispatch operations. Delivery times are optimized for rapid transportation across India, with packaging details meticulously tailored to prevent transit damage. Flexible sample policies are available for select clients, ensuring hands-on product evaluation before bulk purchase. Each system is safely boxed with protective internal padding, guaranteeing that your GE Multilin D90 Plus arrives intact, every time.

FAQs of GE MULTILIN D90 PLUS LINE DISTANCE PROTECTION SYSTEM D90P-HE-AE04UDS-XHXABAXX02X:

Q: How can the GE Multilin D90 Plus be personalised to fit unique protection requirements?

A: The GE Multilin D90 Plus offers programmable logic and a versatile user interface, enabling tailored configuration of protection schemes and operator controls, suitable for a variety of power system specifics.

Q: What benefits arise from integrating this system into a transmission line setup?

A: Integrating the D90 Plus ensures swift fault detection, minimal downtime, enhanced security against line disturbances, and improved automation, all at an attractive cost of ownership.

Q: Where is the GE Multilin D90 Plus commonly installed?

A: The system is typically deployed in utility substations, industrial plants, and high-voltage transmission networks where dependable automation and protective relaying are prerequisites.

Q: How does the D90 Plus handle event recording and diagnostics?

A: It provides event logs for up to 1024 events, detailed oscillography of faults, and waveform captures, allowing utilities to analyze disturbances and maintain system health with ease.

Q: What is the sample policy for the GE Multilin D90 Plus?

A: Sample policies are client-specific and may include demonstration or evaluation units, enabling thorough pre-purchase assessment for qualifying customers.
