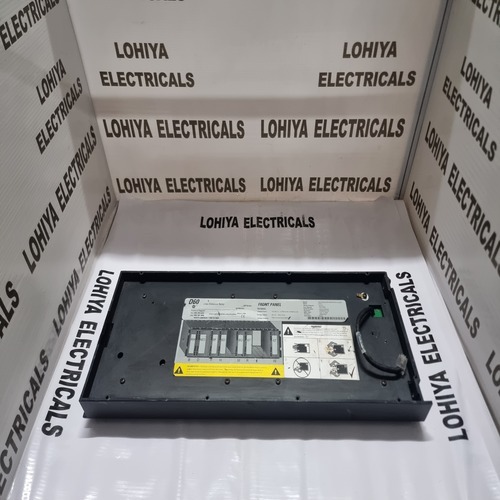

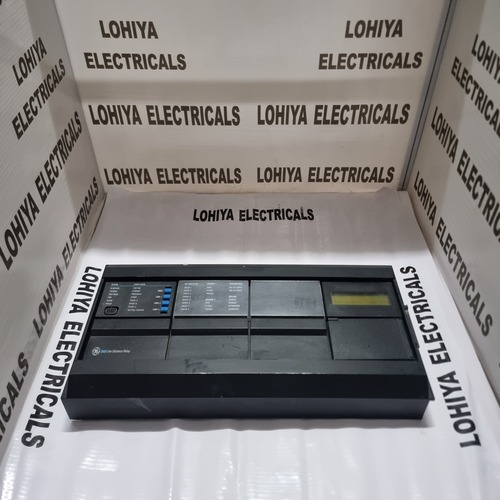

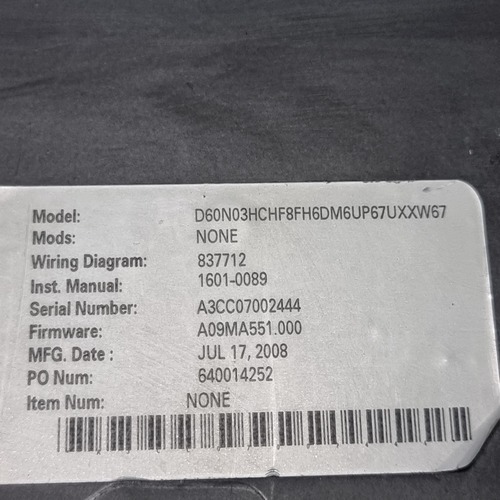

GE MULTILIN D60 D60N03HCHF8FH6DM6UP67UXXW67 HMI FRONT PANEL

Get a Price/Quote

MOQ : 1 Piece

GE MULTILIN D60 D60N03HCHF8FH6DM6UP67UXXW67 HMI FRONT PANEL Specification

Working Temperature
-10C to +60C

Operating Temperature
-10C to +60C

Features
Programmable display, LED indicators, navigation keypad, rugged front face

Output Type
Display/Control Interface

Noise Level
Silent Operation

Application
Generator and Transmission Line Protection Systems

Cooling Method
Passive (natural convection)

Power Supply
Internal from host relay

Connector Type
Flat flex or ribbon cable interface

Product Type
Protection Relay HMI Front Panel

Output Power
N/A (Display Unit)

Input Voltage
24V DC (via device system supply)

Voltage Protection
Integrated surge protection for signal interfaces

Efficiency
N/A (User interface component)

Material
Ruggedized Polycarbonate/ABS plastic

Storage Temperature
-40C to +85C

Weight
Approx. 0.85 kg

Display Resolution
128 x 64 pixels

Dimensions
Approx. 178 mm x 100 mm x 40 mm

Communication Interface
Menu keys interface with relay mainboard

Firmware Update
Upgradable via main relay (requires relay connection)

Ingress Protection
IP54 (front panel only)

User Interface
Keypad for navigation, alarm acknowledgment, and parameter viewing

Display Type
Graphical LCD with multi-color LED indicators

Compatibility
Compatible with GE Multilin D60 relay series

Mounting Type
Panel Mount (Front-panel snap-fit)

Compliance Standards
IEC 60255, IEEE C37.90

About GE MULTILIN D60 D60N03HCHF8FH6DM6UP67UXXW67 HMI FRONT PANEL

Access the paragon of user interfaces with the GE MULTILIN D60 HMI Front Panel, engineered for generator and transmission line protection systems. This outstanding component features a lofty graphical LCD display with multi-color LED indicators, ensuring intuitive monitoring and control. Its robust panel-mount design and IP54 ingress protection provide reliability in demanding environments. Grab yours todayadd to cart and elevate operational efficiency. Seamlessly compatible with GE Multilin D60 relay series, it delivers silent operation, surge protection, and programmable display, all within a ruggedized polycarbonate and ABS housing.

Versatile Application and User Interface

The GE MULTILIN D60 HMI Front Panel is designed for front-panel snap-fit mounting, ensuring secure attachment with minimal effort. Suited for both generator and transmission line protection systems, its interactive keypad enables direct menu navigation, alarm acknowledgment, and parameter viewing. Used as a display and control interface, it provides real-time information on critical system functions, making it an ideal solution for industrial environments requiring reliable and responsive monitoring surfaces.

Certifications and Delivery Information

Certified under IEC 60255 and IEEE C37.90 standards, this outstanding panel meets global benchmarks for safety and performance. The domestic market benefits from reliable FOB port sourcing and cost-effective expenditure for procurement and installation. Expect prompt delivery within standard transport service timelines, ensuring your panel arrives safely and efficiently, ready for immediate integration into existing setups.

FAQs of GE MULTILIN D60 D60N03HCHF8FH6DM6UP67UXXW67 HMI FRONT PANEL:

Q: How is the GE MULTILIN D60 HMI Front Panel installed on protection systems?

A: The panel features panel mount snap-fit installation, making it simple to attach securely to generator or transmission line protection systems, optimizing both access and stability.

Q: What are the major benefits of using this HMI Front Panel with the GE Multilin D60 relay series?

A: Using this panel provides intuitive graphical and LED display, direct keypad navigation, programmable settings, and robust constructionall enhancing reliability, monitoring, and control efficiency.

Q: When should the firmware of the front panel be updated?

A: Firmware updates are necessary when new features or security improvements are released. Updates are performed via the main relay and require a relay connection for process execution.

Q: Where is the GE MULTILIN D60 HMI Front Panel most commonly applied?

A: This outstanding panel is primarily used in generator and transmission line protection systems within industrial or utility-grade electrical installations.

Q: What certifications has the device acquired for domestic market applications?

A: The panel complies with IEC 60255 and IEEE C37.90 standards, ensuring safety and reliable operation across domestic market installations and transport services.

Q: How does the voltage protection safeguard the panel during usage?

A: Integrated surge protection within the signal interfaces prevents voltage spikes from damaging sensitive electronic components, maintaining optimal panel performance in all conditions.
