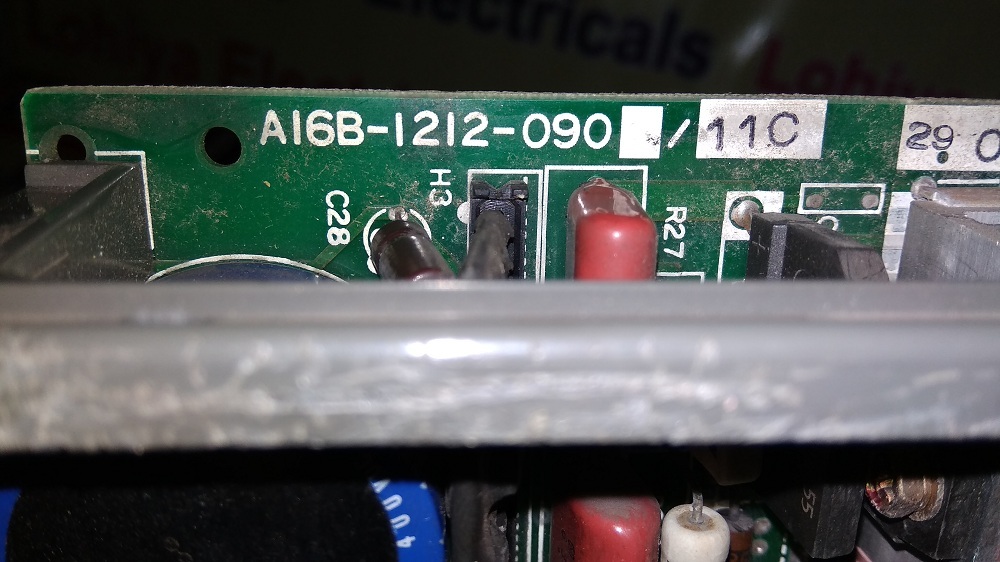

FANUC ALPHA SERIES DRIVE CARD

Get a Price/Quote

FANUC ALPHA SERIES DRIVE CARD Specification

Output Type
AC Servo Output

Connector Type
Multipin Edge Connector

Power Factor
>=0.95

Power Supply
AC Supply

Noise Level
<50 dB

Working Temperature
0C to 60C

Rated Current
12A

Features
High Reliability, Quick Response, Integrated Protection, Compact Design

Application
FANUC CNC Machines, Servo Motor Drives

Phase
3 Phase

Operating Temperature
0C to 60C

Current Range
0-15A

Cooling Method
Forced Air Cooling

Rated Power
2.2 kW

Output Current
Up to 15A

Product Type
Drive Card

Output Power
2.2 kW

Output Frequency
0-400 Hz

Input Voltage
200-240V AC

Voltage Protection
Overvoltage/Undervoltage Protection

Efficiency
Over 90%

Material
High-grade PCB with electronic components

Line Regulation
1%

Storage Temperature
-20C to 85C

Weight
Approx. 1.2 kg

Alarm Output
Yes

Insulation Resistance
>100M

Response Time
1 ms

Digital Interface
RS-232/485

Color
Green/Yellow PCB

Control Method
PWM (Pulse Width Modulation)

Protection Feature
Short Circuit, Overload, Overtemperature

Model Compatibility
FANUC Alpha Series Servo and Spindle Modules

Dimensions
235mm x 120mm x 35mm

Mounting Type
Panel Mount

About FANUC ALPHA SERIES DRIVE CARD

The FANUC Alpha Series Drive Card is a scarce and noteworthy component designed to champion the performance of FANUC Alpha Series Servo and Spindle Modules. Built with high-grade green/yellow PCB materials, this radiant drive card boasts an output power of 2.2 kW and versatile panel mount installation. With advanced PWM control, quick response time, and integrated short circuit, overload, and overtemperature protection, this card delivers exceptional reliability. Its efficient RS-232/485 digital interface and impressive line regulation make it a champion for high-precision automation. Shop now to procure this essential part and elevate your CNC machinery.

Uses and Applications of FANUC Alpha Series Drive Card

The FANUC Alpha Series Drive Card is specifically engineered for use in FANUC CNC machines and Servo Motor Drives, where precision and reliability are paramount. Beyond this, its versatility allows for deployment in various industrial automation systems and other compatible control environments. Manufacturing companies, skilled technicians, and industrial maintenance teams routinely procure this drive card to ensure optimal operation and minimal downtime in their critical machinery.

Sample, Delivery, and Supply for FANUC Alpha Series Drive Card

Prospective clients can request a sample of the FANUC Alpha Series Drive Card, with quotations available upon proposal amount submitted. Our supply ability remains robust, ensuring steady availability even for urgent requirements. After confirming your order, handover and delivery are typically managed within a short timeframe, guaranteeing minimized lead times. Reach out to discuss your requirements and secure a PROMPT procurement process, tailored to your project needs.

FAQs of FANUC ALPHA SERIES DRIVE CARD:

Q: How does the FANUC Alpha Series Drive Card ensure high reliability in CNC machines?

A: The FANUC Alpha Series Drive Card integrates multiple protection features, including short circuit, overload, and overtemperature safeguards, ensuring your CNC machines operate reliably even in demanding environments.

Q: What is the process for procuring a sample of this drive card?

A: To obtain a sample, submit your proposal amount or request a quotation. Once approved, we coordinate the handover process and set a delivery schedule tailored to your needs.

Q: When should this drive card be used in industrial applications?

A: This drive card is ideal for use when high performance and precision are necessary, particularly in FANUC Servo and Spindle Modules within CNC machinery or other compatible automation systems.

Q: Where can the FANUC Alpha Series Drive Card be mounted?

A: The card is designed for easy panel mount installation, making it suitable for integration within most control cabinets and industrial machinery setups.

Q: What are the benefits of selecting this drive card over other models?

A: This card offers over 90% efficiency, rapid response time 1 ms, RS-232/485 digital interface, robust protection mechanisms, and a compact form factor, making it a radiant choice for modern automation.

Q: How does the drive card handle voltage fluctuations?

A: The FANUC Alpha Series Drive Card includes overvoltage and undervoltage protection, effectively managing voltage anomalies to prevent operational disruptions.
