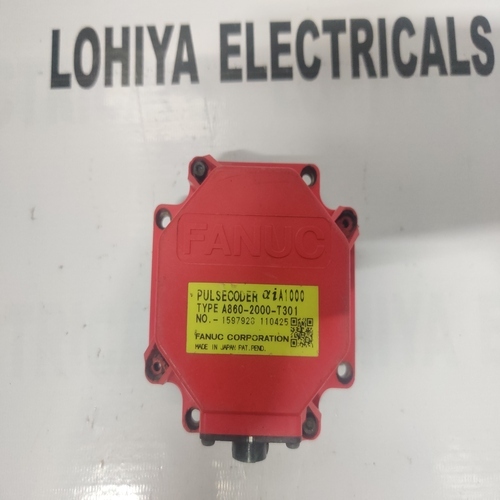

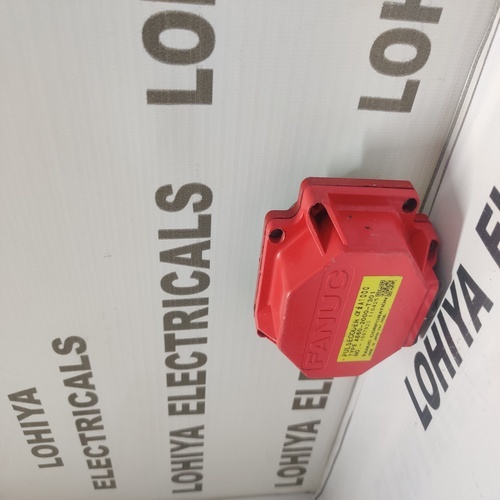

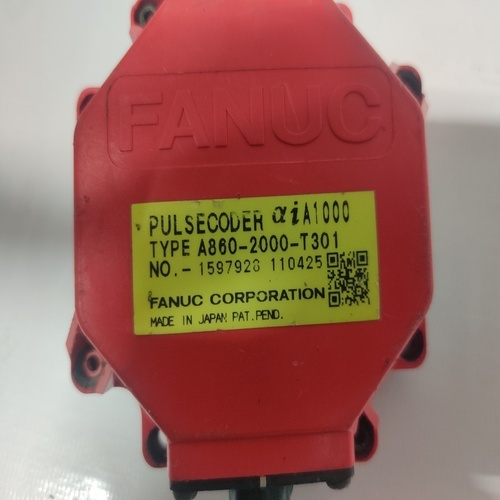

FANUC A860-2000-T301 ALPHA A1000I PULSE CODER ABSOLUTE PULSE CODER WITH OLDHAM COUPLING

Get a Price/Quote

MOQ : 1 Piece

FANUC A860-2000-T301 ALPHA A1000I PULSE CODER ABSOLUTE PULSE CODER WITH OLDHAM COUPLING Specification

Efficiency
High

Connector Type
Circular Multi-pin DIN Connector

Insulation Material
Engineering Plastic

Operating Temperature
0C to +40C

Feature
Absolute Position Feedback, High Accuracy

Humidity %
0 to 90% (Non-Condensing)

Surface Finish
Anodized / Plastic Housing

Overheating Protection
NO

Mounting Type
Flange Mount with Oldham Coupling

Shape
Round

IP Rating
IP65

Product Type
Absolute Pulse Coder Encoder

Application
CNC Machine Tools, FANUC Servo Motor Feedback

Protection Level
IP65

Frequency (MHz)
2.5 MHz (Signal Output)

Rated Voltage
5V DC

Energy Consumption
Low Power Consumption (<200 mA)

Output Type
TTL, Differential Line Driver

Color
Yellow/Black

Dimension (L*W*H)
Approx. 80 mm Diameter x 45 mm Height

Weight
Approx. 0.6 kg

Input Voltage
5V DC

Size
A1000i Model

Phase
Single Phase Compatible

Connection Type
Connector Plug

Material
Aluminium Alloy, Engineering Plastic

No Of Poles
Multi-pole (Incremental/Absolute) Encoder Type

About FANUC A860-2000-T301 ALPHA A1000I PULSE CODER ABSOLUTE PULSE CODER WITH OLDHAM COUPLING

Capitalise on the elite engineering of the FANUC A860-2000-T301 ALPHA A1000I Pulse Coderan enviable solution for demanding CNC machine tools. Grab optimum position feedback with commanding accuracy of 256000 counts/rev resolution and robust hollow shaft design with Oldham coupling. Designed for seamless integration with FANUC Alpha ii Series Servo Motors, this absolute pulse coder is built with superior aluminium alloy and high-grade engineering plastic. Rated IP65, it withstands harsh industrial environments, offering high vibration and shock resistance. Secure absolute feedback, low energy consumption, and premium reliability, all in a compact, anodized housing.

Who Uses It and What Makes It Stand Out

The FANUC A860-2000-T301 ALPHA A1000I Pulse Coder is widely used by elite manufacturers and technical professionals engaged in precision CNC machine tools. Its enviable compatibility with FANUC Alpha ii Series Servo Motors ensures asynchronous application across diverse industrial sectors. Primary competitive advantages include commanding accuracy, absolute position feedback, and rugged build to deliver optimum performance in high-demand environments. Application media encompass automated assembly lines, robotics, and computer-controlled machining centers.

Domestic Market Reach, Packaging & Payment Flexibility

This product commands a strong presence in Indias high-end manufacturing domain and is also in demand for export markets. Goods transport is executed with careful packaging using anti-static protective materials, ensuring safe and unblemished delivery. The pulse coder is delivered through trusted logistics networks. Payment terms are flexible, supporting advance payment, bank transfer, and other secure payment modes for a seamless procurement experience.

FAQs of FANUC A860-2000-T301 ALPHA A1000I PULSE CODER ABSOLUTE PULSE CODER WITH OLDHAM COUPLING:

Q: How does the FANUC A860-2000-T301 ALPHA A1000I Pulse Coder benefit CNC machine tool operations?

A: This pulse coder provides absolute position feedback with enviable accuracy, ensuring optimum performance and reducing the risk of positional errors in CNC applications.

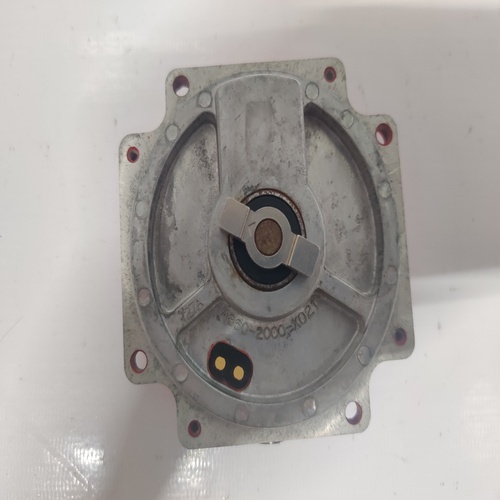

Q: What makes the Oldham coupling significant in this pulse coder?

A: The Oldham coupling ensures smooth, misalignment-tolerant connection between the encoder and servo motor, enhancing operational reliability and minimising wear.

Q: Where can the FANUC A860-2000-T301 be used most effectively?

A: It is ideal for integration in CNC machine tools and FANUC Alpha ii Series Servo Motor feedback systems across industrial automation and robotics.

Q: When should users verify product availability for the A860-2000-T301 model?

A: Verification is essential before order placement as this model is classified obsolete/discontinued, and availability may be limited with suppliers or traders.

Q: What is the process for connecting this pulse coder to existing systems?

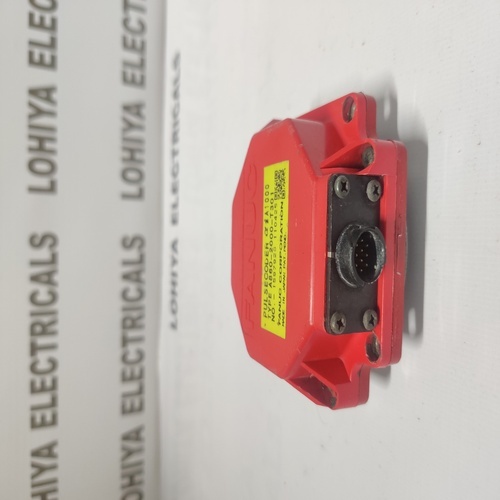

A: Installation involves mounting via the flange mount and Oldham coupling, then connecting using the circular multi-pin DIN connector to compatible FANUC systems.
