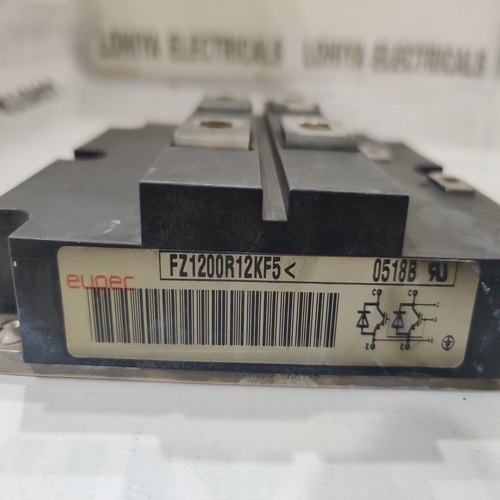

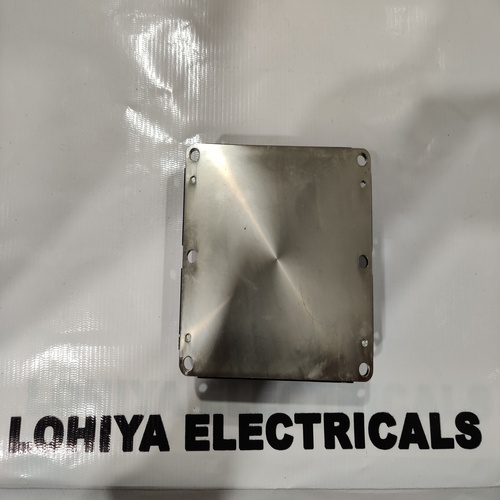

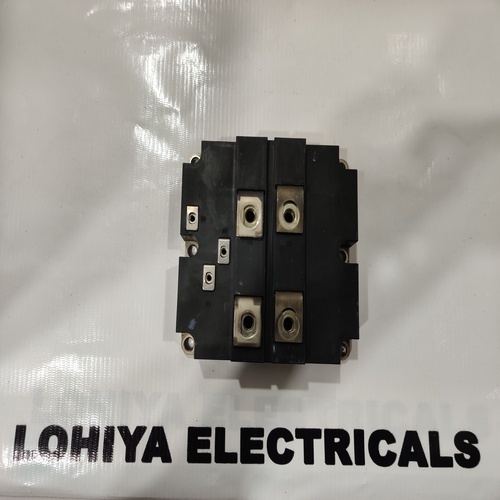

EUPEC FZ1200R12KF5 IGBT MODULE

Get a Price/Quote

MOQ : 1 Piece

EUPEC FZ1200R12KF5 IGBT MODULE Specification

Power Factor
>0.95

IP Rating
IP20

Overheating Protection
Integrated Thermal Sensor

Mounting Type
Panel Mount

Connector Type
Bolt Type Terminals

Efficiency
Up to 98%

Operating Temperature
-40°C to +150°C

Humidity %
Max 90% RH

Insulation Material
Epoxy Resin

Shape
Rectangular

Feature
Fast Switching, Low Losses, Robust Design

Surface Finish
Matte/Gloss Combination

Product Type
Power IGBT Module

Application
Industrial Inverter, Motor Drives, Power Control Units

Protection Level
High

Frequency (MHz)
DC to 20 kHz Switching Frequency

Rated Voltage
1200 V

Energy Consumption
Optimized for High Efficiency Applications

Output Type
Electrical

Color
Black & Silver

Dimension (L*W*H)
134 mm x 62 mm x 30 mm

Weight
850 g

Input Voltage
Up to 1200 V

Size
Standard Module

Phase
Three Phase

Material
Industrial Grade Plastic & Metal

Connection Type
Screw Terminal

No Of Poles
Dual

Part Number
FZ1200R12KF5

Collector Current (Ic)
1200 A

Collector-Emitter Voltage (Vce)
1200 V

Reverse Voltage
1200 V

RoHS Compliance
Yes

Turn-off Time
820 ns

Switching Type
High-Speed

Thermal Resistance
0.015 K/W

Package Type
Standard IGBT Module

Series
FZ Series

Turn-on Time
480 ns

Chip Technology
NPT

Storage Temperature
-40°C to +125°C

Gate Threshold Voltage
8 V

Module Category
IGBT Power Electronic

Current Rating
1200 A

Isolation Voltage
2500 V

EUPEC FZ1200R12KF5 IGBT MODULE About

Introducing the new release EUPEC FZ1200R12KF5 IGBT Module a hot deal for elite industrial performance! With a ravishing current rating of 1200A and superb 1200V collector-emitter voltage, this advanced NPT chip module delivers astonishing efficiency up to 98%. Its robust design, high-speed switching, and integrated overheating protection ensure reliable performance in demanding environments. Compliant with RoHS and rated IP20, the FZ1200R12KF5 is perfect for industrial inverters, motor drives, and power control units. Benefit from low energy loss, high protection, and premium durability in a sleek black & silver design.

Versatile Industrial Excellence

The EUPEC FZ1200R12KF5 IGBT Module is designed for elite usage in industrial applications such as inverters, motor drives, and power control units. Its specific advantage lies in its high efficiency and fast switching time, making it ideal for demanding electrical operations. With integrated thermal protection and a robust panel-mount design, this module ensures reliable power management and longevity even under rigorous conditions, delivering substantial value across diverse industrial sectors.

Dynamic Export & Express Delivery Solutions

The EUPEC FZ1200R12KF5 IGBT Module is highly favored in the global market, with main export destinations across Europe, Asia, and the Middle East. With competitive rates, each unit is securely packed & dispatched for express shipping, ensuring safe transit. Standard delivery time is quick, based on location, with payment terms customized for hassle-free transactions. This approach guarantees clients reliable access, seamless procurement, and prompt installation for mission-critical operations.

FAQs of EUPEC FZ1200R12KF5 IGBT MODULE:

Q: How does the EUPEC FZ1200R12KF5 IGBT Module benefit industrial operations?

A: This IGBT module offers high efficiency, superb reliability, and fast switching, making it ideal for demanding industrial applications like power control units and motor drives. Its robust design and integrated overheating protection enhance safety and performance.

Q: What are the specific applications for the FZ1200R12KF5 module?

A: The module is suited for use in industrial inverters, motor drives, and power control units, thanks to its high current and voltage ratings, fast switching, and robust construction.

Q: Where can the FZ1200R12KF5 IGBT Module be shipped from?

A: As a supplier and trader in India, the FZ1200R12KF5 module can be shipped globally to key markets, including Europe, Asia, and the Middle East, with express shipping options available.

Q: What is the process for ordering and receiving the module?

A: The ordering process involves selecting the module, confirming your rate and payment terms, and the product is then securely packed and dispatched with express shipping for fast, safe delivery.

Q: How does the integrated thermal sensor improve usage?

A: The integrated thermal sensor provides advanced overheating protection, ensuring safe, reliable operation of the module in environments with fluctuating temperatures or heavy loads.
