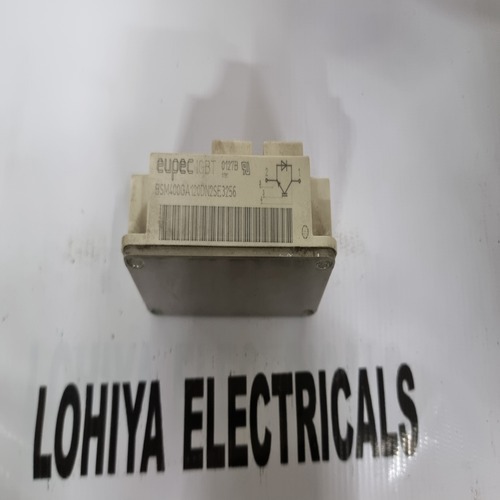

EUPEC BSM300GA120DN2 IGBT

Get a Price/Quote

MOQ : 1 Piece

EUPEC BSM300GA120DN2 IGBT Specification

Frequency
Up to 20kHz

Connectivity Type
Screw Terminal

Switch Type
IGBT (Insulated Gate Bipolar Transistor)

Usage & Applications
Industrial Power Control, AC Motor Control, Renewable Energy Systems

Installation Type
Screw Mount

Current
300A

Features
Low Saturation Voltage, High Speed Switching, Rugged Construction

Output
1200V

Mounting Type
Chassis Mount

Phase
Three Phase

Protection Level
Insulated housing

Product Type
igbt module

Operating Temperature
-40C to +150C

Working Temperature
-40C to +150C

Input
Gate Trigger Voltage (VGE): 15V

Application
Inverter, Motor Drives, Power Supplies, Induction Heating

Supply Voltage
1200V (Collector-Emitter Voltage, VCES)

Dimension (L*W*H)
134mm x 55mm x 30mm (approximate)

Weight
~0.7 kg

Part Number
BSM300GA120DN2

Isolation Voltage
4000V AC (between terminals and heatsink)

Collector Emitter Voltage (VCES)
1200V

Package Type
Module

Short Circuit Withstand Time
10µs (typical)

Case Temperature (Tc)
Up to 150°C (max)

Gate Emitter Voltage (VGES)
±20V max

Storage Temperature
-40°C to +125°C

Power Dissipation
1200W (approximate)

Collector Current IC
300A

About EUPEC BSM300GA120DN2 IGBT

Utilise the offer on the EUPEC BSM300GA120DN2 IGBT, an incomparable power module delivering distinguished performance for demanding industrial applications. With a formidable collector-emitter voltage of 1200V, a resilient 300A collector current, and unassailable 1200W power dissipation, this module is crafted for superior reliability and efficiency. Explore advanced features like insulated screw mounting, high-speed switching, and rugged construction. Instant checkout is available for this premier component ideal for inverters, motor drives, and renewable energy, making it the preferred solution for serious professionals and leading suppliers in India.

Application Surface & Material Features of BSM300GA120DN2

Purpose-built for industrial power control, the EUPEC BSM300GA120DN2 IGBT is engineered with robust insulation and a durable chassis mount for distinguished reliability in AC motor control and renewable energy systems. Its module features low saturation voltage, high-speed switching, and a sturdy, insulated housing, making it exceptionally suitable for challenging environments. The screw terminal connectivity and rugged design ensure easy integration and seamless operation across a diverse array of industrial and energy applications.

Delivery Timelines, Certifications, and FOB Port Details

Experience reliable delivery and timely arrival of the EUPEC BSM300GA120DN2 IGBT, maximising value for your expenditure. Each unit is dispatched from certified suppliers, ensuring adherence to stringent international standards. The standard FOB port for shipping is major locations in India, a boon for expedient order fulfillment. Comprehensive certifications accompany each shipment, assuring quality with every purchase. Enjoy peace of mind with transparent shipment tracking as your distinguished product journeys toward your project site.

FAQs of EUPEC BSM300GA120DN2 IGBT:

Q: How does the EUPEC BSM300GA120DN2 IGBT benefit industrial power control systems?

A: This IGBT module provides high reliability, high-speed switching, and rugged construction, crucial for efficient and safe operation in industrial power control, AC motor drives, and renewable energy systems.

Q: What are the key features that set the BSM300GA120DN2 apart from similar modules?

A: The BSM300GA120DN2 boasts unassailable performance with a 1200V collector-emitter voltage, 300A current capacity, low saturation voltage, superior insulation, and robust screw mount design, making it distinguished in its field.

Q: Where can the EUPEC BSM300GA120DN2 be installed in an industrial setting?

A: This module is designed for chassis mounting with screw terminals, allowing easy and secure installation into a wide range of motor drives, inverters, and power supply systems within industrial environments.

Q: What is the process for purchasing and delivery of the BSM300GA120DN2 IGBT?

A: Customers can utilise instant checkout, and after order placement, the module is dispatched promptly from certified suppliers via major Indian FOB ports, ensuring reliable and timely arrival.

Q: Which certifications are associated with the EUPEC BSM300GA120DN2 IGBT?

A: The product is sourced from suppliers adhering to international quality and safety standards, and each shipment includes relevant certification documentation for customer assurance.

Q: What operating conditions can the BSM300GA120DN2 IGBT withstand?

A: This IGBT module is engineered to operate efficiently in environments ranging from -40C up to +150C, thanks to its rugged construction and high isolation voltage.
