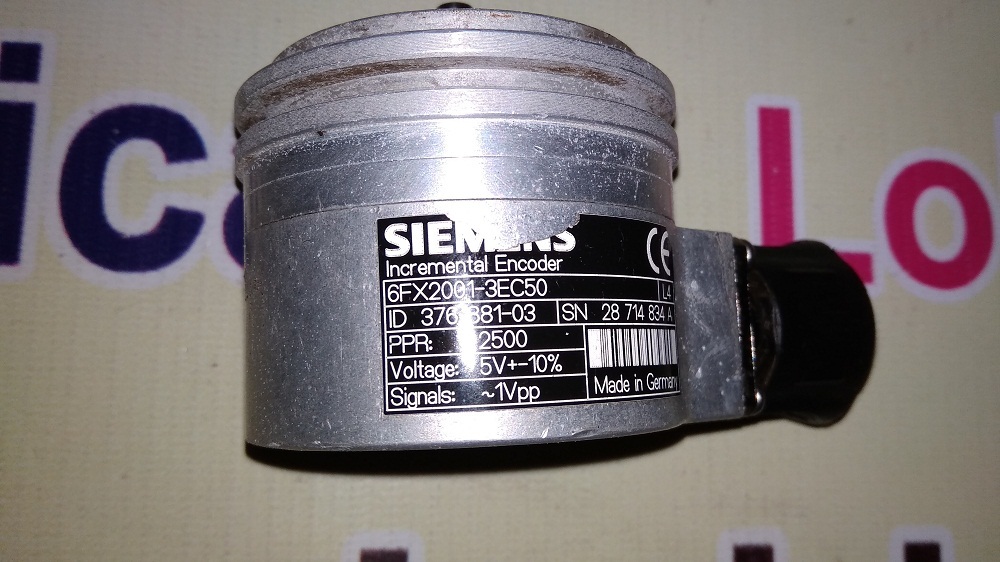

SIEMENS ENCODER

Get a Price/Quote

SIEMENS ENCODER Specification

Panel Type
Encapsulated Body

Rated Operation Voltage
5V DC or 10-30V DC (Model Dependent)

Protection Class
Class I

Way
Single-Turn or Multi-Turn (Model Dependent)

Cover Material
Plastic/Metal

Rated Current
< 50 mA

Rated Insulation Voltage
500V AC/min

Operating Voltage
5V or 10-30V DC

Components
Sensor Element, Connector, Shaft

Base Material
Aluminum Alloy

Current Rating
100 mA

Cooling System
Passive

Features
High accuracy, Long operational life, Robust build, Easy installation

Protection Level
IP65

Cabinet Material
Aluminum Housing

Connectivity Type
Cable with Connector/Terminal Block

Thickness
Approx. 35 mm

Control System
PLC, CNC, Servo Drives Compatible

Product Type
Rotary Encoder

Material
Metal and high-grade electronic components

Surface Finish
Anodized/Matte

Standard
IEC 60068-2 and Siemens Industrial Standard

Surface Color
Silver and Black

Rated Voltage
5V DC

Frequency (MHz)
Up to 100 kHz Pulse Output

Maximum Output Current
100 mA

Dimension (L*W*H)
Approx. 60 mm x 60 mm x 35 mm

Application
Industrial Automation, Motor Feedback, Robotics

IP Rating
IP65

Display Type
No Integrated Display

Mounting Type
Flange or Servo Mounting

Resolution
Up to 5000 PPR (Pulses Per Revolution)

Response Time
<1 ms

Shaft Diameter
6 mm or 10 mm (Model Dependent)

Operating Temperature Range
-20C to +85C

Storage Temperature
-40C to +100C

Sensing Principle
Optical or Magnetic (Model Dependent)

Net Weight
Approx. 150 g

Output Signal
NPN/PNP; Push-pull; Open Collector

Service Life
>10 Million shaft revolutions

About SIEMENS ENCODER

Experience a clearance event on the phenomenal SIEMENS ENCODERyour last chance to secure this magnificent device at an unbeatable price! Renowned for high accuracy and a service life exceeding 10 million shaft revolutions, this encoder features precision engineering and robust materials, including an anodized aluminum housing. With diverse output signals (NPN/PNP, Push-pull), up to 5000 PPR resolution, rapid response time (<1 ms), and IP65 protection, this model is engineered for demanding industrial sectors. Optimize motor feedback and automation processesremarked for versatility and reliability.

Applications & Users of SIEMENS ENCODER

The SIEMENS ENCODER is frequently used by automation engineers, industrial maintenance specialists, and robotics integrators. Typically, it finds applications at manufacturing sites, assembly lines, processing units, and robotic stations. This encoder is ideally suited for providing precise motor feedback, monitoring rotational speeds, and supporting high-end CNC or PLC systems in Indias fast-growing manufacturing sector. Its robust build and high-performance characteristics make it a trusted choice for dynamic industrial environments.

FOB Port, Certifications, and Sample Logistics for SIEMENS ENCODER

Efficient logistics enable smooth supply of SIEMENS ENCODER through major Indian FOB ports. Packing & dispatch adhere to strict Siemens Industrial Standards, ensuring device safety throughout transit. Samples are available for qualified orders, helping customers evaluate product fit before bulk supply. The encoder is certified as per IEC 60068-2 standards, testifying to its dependable quality. These factors streamline procurement, from sample evaluation to comprehensive delivery, ensuring assured performance and satisfaction.

FAQs of SIEMENS ENCODER:

Q: How is the SIEMENS ENCODER installed and configured?

A: The encoder is designed for easy installation, supporting both flange or servo mounting options. Connection is straightforward using the cable with connector or terminal block, and the unit is compatible with most industrial control systems like PLCs and CNCs.

Q: What models are available for different shaft diameters and sensing principles?

A: Models are available with 6 mm or 10 mm shaft diameters, and you can choose between optical or magnetic sensing principles, depending on application needs. Please consult the supplier for the exact model that matches your specifications.

Q: Where can the SIEMENS ENCODER be applied in industrial settings?

A: This encoder is ideal for deployment in motor feedback systems, robotics, industrial automation, and servo drive feedback applications. Its IP65 rating and rugged design make it suitable for challenging environmental conditions.

Q: When should periodic maintenance be performed on the SIEMENS ENCODER?

A: Thanks to its robust build and exceptional service life, the encoder requires minimal maintenance. Nevertheless, it is recommended to periodically inspect connections and mounting for optimal performance, especially in high-vibration settings.

Q: What are the major benefits of using this SIEMENS ENCODER?

A: Key benefits include high accuracy, phenomenal longevity (>10 million shaft rotations), rapid response, and a versatile electrical interface. The device is also compliant with international standards, offering ease of integration and reliability.
