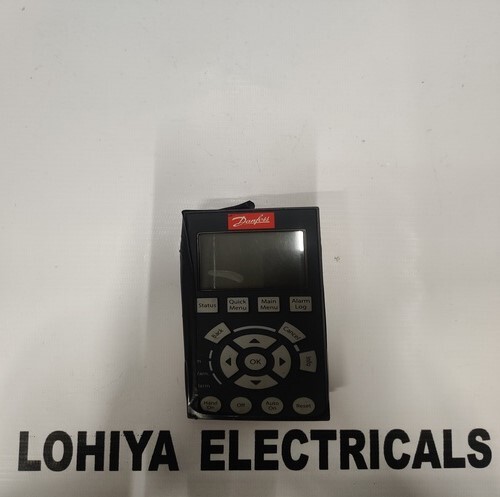

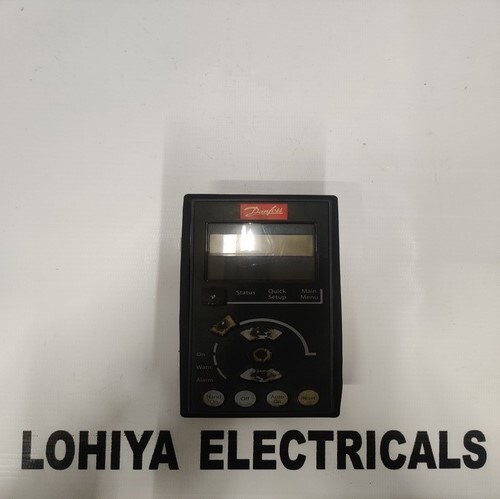

DANFOSS 4X/IP66 CONTROL PANEL LCP 102

Get a Price/Quote

MOQ : 1 Piece

DANFOSS 4X/IP66 CONTROL PANEL LCP 102 Specification

Efficiency
High

Shape
Rectangular

Surface Finish
Matte

Operating Temperature
-10C to +50C

Feature
Graphical Display, Keypad Operation, Removable, Robust & Waterproof

Overheating Protection
Indirect via drive

Connector Type
Danfoss Standard LCP Interface

Humidity %
5% to 95%, non-condensing

IP Rating
IP66, NEMA 4X

Mounting Type
Panel / Door Mount

Insulation Material
PC (Polycarbonate)

Product Type
Control Panel LCP 102

Application
VLT Drives, Industrial Automation, Motor Control

Protection Level
IP66 / NEMA 4X

Frequency (MHz)
50/60 Hz

Rated Voltage
24 V DC / 100-240 V AC (as per drive compatibility)

Energy Consumption
Low

Output Type
Digital Display / Local Control Panel

Color
Black

Dimension (L*W*H)
Approx. 120 x 100 x 35 mm

Weight
Approx. 0.25 kg

Input Voltage
24V DC or via compatible drive supply

Phase
Three Phase Compatible

Size
Standard for VLT drives

Connection Type
Plug-and-Play via LCP port

Material
Polycarbonate (PC)

Keypad Type
Membrane keys: navigation & parameter edit

Languages
Multi-language support

Panel Locking Mechanism
Push-fit/removable with locking tab

RoHS Compliance
Yes

Indications
Status LEDs / On-screen icons

Ingress Protection
IP66, NEMA 4X (suitable for indoor/outdoor)

Communication Interface
Proprietary (via VLT LCP port)

Compatibility
Danfoss VLT AutomationDrive FC Series

Display Type
LCD with backlight

Vibration Resistance
IEC 60068-2-6 compliant

About DANFOSS 4X/IP66 CONTROL PANEL LCP 102

Get the DANFOSS 4X/IP66 CONTROL PANEL LCP 102 at a Special Price Cut! This top-notch control panel boasts a laureate LCD with backlight, terrific membrane keypad for smooth navigation, and proprietary connectivity via the VLT LCP port. Its IP66/NEMA 4X robust build ensures lasting performance in challenging environments, suitable for both indoor and outdoor use. Engineered from high-grade polycarbonate and featuring multi-language support, status indicators, and a push-fit locking mechanism, its perfect for VLT Drives in industrial automation and motor control. Secure, efficient, and easy to installredefine your control experience today!

Terrific Advantages, Durable Material & Versatile Usage

The DANFOSS 4X/IP66 CONTROL PANEL LCP 102 excels with its superb ingress protection and robust polycarbonate build, ensuring top-notch resilience in industrial settings. Designed for easy integration with VLT Drives, its graphical display makes parameter editing and monitoring user-friendly. The waterproof, removable panel is ideal for both direct motor control and automation, providing clear status feedback and multi-language supportan ideal solution for environments demanding reliability and high performance.

Supply Ability, Payment and Packaging Excellence

DANFOSS CONTROL PANEL LCP 102 units are reliably delivered across India with efficient drop-off or secure goods transport as per customer location. Payment terms are flexible, accommodating wire transfers, online payments, or other arrangements based on order size. Products are meticulously packaged to prevent transit damage, ensuring your panel arrives in pristine condition. Expect consistent stock availability for on-demand supply and prompt dispatch for project deadlines or routine maintenance needs.

FAQs of DANFOSS 4X/IP66 CONTROL PANEL LCP 102:

Q: How is the DANFOSS 4X/IP66 CONTROL PANEL LCP 102 installed and connected?

A: Installation is straightforward due to its plug-and-play design. Simply mount the panel on your VLT drive panel or door, then connect via the proprietary LCP port for immediate operation.

Q: What environments are suitable for the DANFOSS LCP 102 control panel?

A: The LCP 102 is perfect for both indoor and outdoor settings, thanks to its IP66 and NEMA 4X ratings, offering excellent resistance to dust, water, and industrial contaminants.

Q: When should I consider using this control panel for my application?

A: Choose this panel when you require secure, reliable local control and monitoring of Danfoss VLT drives in demanding industrial or commercial automation environments.

Q: Where can I get support for multi-language and parameter configuration?

A: Support for multiple languages and configuration guidance is available through the on-panel menu. For detailed assistance, Danfoss customer service and authorized suppliers in India provide comprehensive help.

Q: What is the benefit of the push-fit/removable locking mechanism?

A: The push-fit, removable locking feature allows you to secure or detach the panel quickly, enhancing maintenance flexibility and making system upgrades or troubleshooting much easier.
