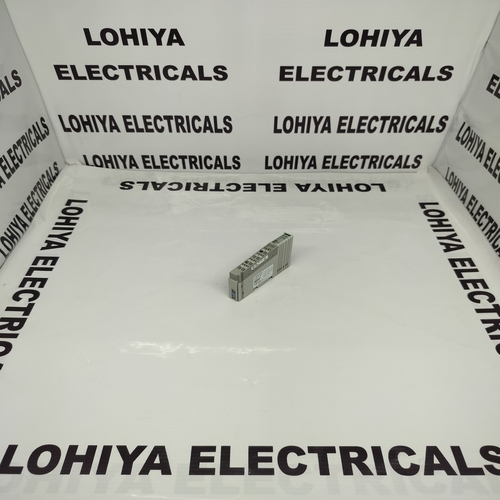

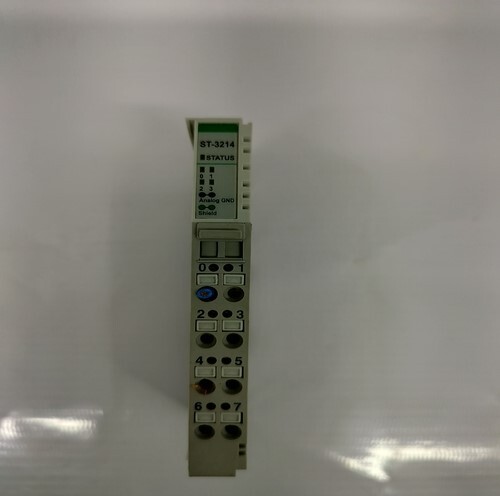

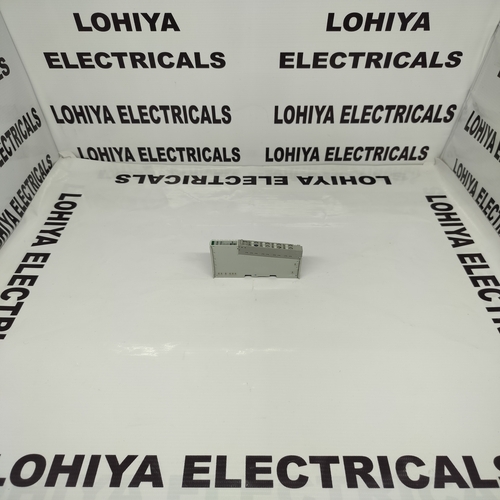

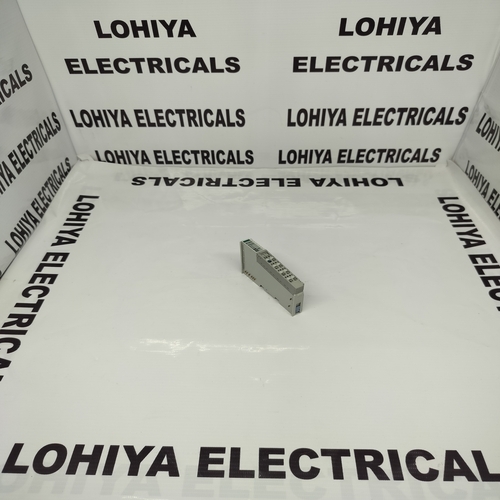

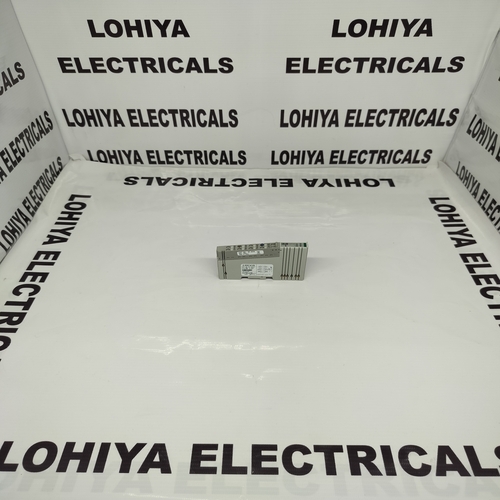

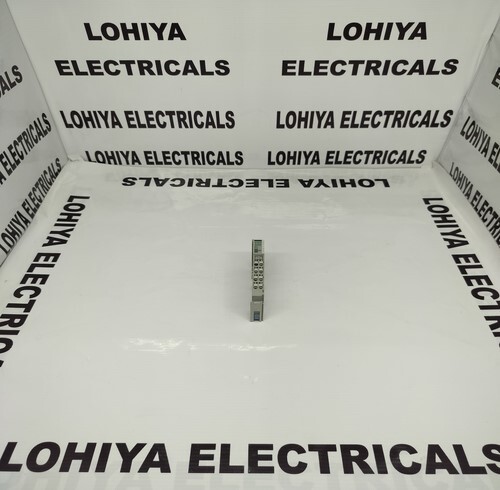

CREVIS ST-3214 ANALOG INPUT

Get a Price/Quote

MOQ : 1 Piece

CREVIS ST-3214 ANALOG INPUT Specification

Components
Electronic module, spring clamp terminals

Control System
PLC or remote I/O system

Cover Material
Polycarbonate/ABS

Protection Class
Class II

Operating Voltage
24 V DC

Cooling System
Passive

Rated Insulation Voltage
500 V AC

Rated Current
N/A (Input module)

Rated Operation Voltage
24 V DC

Connectivity Type
Spring clamp terminal, backplane bus

Panel Type
Modular I/O mount

Thickness
12 mm (module width)

Protection Level
IP20

Features
Hot swappable, compact design, 4-channel analog input

Cabinet Material
Not applicable (module for inside panel)

Current Rating
N/A (Input module)

Base Material
Polycarbonate/ABS

Way
4-channel

Product Type
Analog Input Module

Material
Plastic, metal (electronic module components)

Surface Finish
Matte

Standard
CE, UL, cUL

Surface Color
Gray

Rated Voltage
24 V DC

Frequency (MHz)
DC input - Frequency not applicable

Maximum Output Current
N/A (Input module)

Dimension (L*W*H)
99 x 12 x 70 mm

Application
Industrial automation, PLC remote I/O

IP Rating
IP20

Display Type
Status LEDs

Weight
Approx. 75 g

Input Impedance
Voltage: 1 M, Current: 250

Mounting Type
DIN rail (35 mm)

Storage Temperature
-40C to +85C

Input Range
-10 to +10 VDC, 0-20 mA, 4-20 mA

Isolation
Channel to bus, 500 V AC, 1 min

Operating Temperature
-20C to +60C

Relative Humidity
5% to 95% (non-condensing)

Power Consumption
Max. 40 mA @ 5 V DC (from backplane bus)

Input Resolution
16-bit

Cable Type
Flexible or solid conductor, 0.2-2.5 mm2 (AWG 24-14)

Input Type
4-channel analog voltage/current

Conversion Speed
1.25 ms/channel (typical)

LED Indicators
Per channel status and module status

About CREVIS ST-3214 ANALOG INPUT

Find the perfect interface for your industrial automation needs with the CREVIS ST-3214 Analog Input. This top-drawer module features a remarkable 4-channel analog voltage/current input, offering an astonishing 16-bit resolution and rapid 1.25 ms/channel conversion speed. Engineered for reliability, it boasts CE, UL, cUL certifications, robust channel-to-bus isolation (500 V AC), and versatile input ranges from -10 to +10 VDC or 0/4-20 mA. Pick yours today and benefit from a compact, hot-swappable design at a discounted rate!

Outstanding Industrial Utility and Surface Flexibility

The CREVIS ST-3214 Analog Input module is impeccably used for integrating analog signals into PLC remote I/O and industrial automation systems. Suitable for various application surfaces, it comfortably mounts on a DIN rail (35 mm) within modular control panels. Its use type is particularly favored by automation technicians due to passive cooling, robust polycarbonate/ABS construction, and user-friendly spring clamp terminals, ensuring seamless integration for both new and upgraded industrial setups.

Domestic Market Exchange and Certification Estimate

In India's vibrant automation sector, the CREVIS ST-3214 Analog Input is always in demand for timely exchange or handover in diverse control system installations. Each module is officially certified-meeting CE, UL, and cUL standards. Sample availability streamlines estimate processes during project planning, letting you examine product quality before finalizing your procurement. Reliable suppliers ensure straightforward client handover, guaranteeing compliance and satisfaction in optimized domestic market workflows.

FAQ's of CREVIS ST-3214 ANALOG INPUT:

Q: How does the CREVIS ST-3214 benefit industrial automation systems?

A: The CREVIS ST-3214 provides fast, high-resolution analog input for PLC and remote I/O, ensuring accurate signal integration and superior control in automated environments.

Q: What process should I follow to install the CREVIS ST-3214 module?

A: Installation is simple: mount the module on a 35 mm DIN rail, connect inputs via spring clamp terminals, verify LED indicators for status, and ensure power supply from the backplane bus.

Q: Where can the CREVIS ST-3214 Analog Input be used?

A: This module is ideal for industrial automation settings, especially within PLC control panels, remote I/O cabinets, or any modular I/O systems requiring analog signal integration.

Q: When is sample availability provided to customers in India?

A: Sample options are typically available during the estimate or early project planning stages, allowing clients to assess product suitability before bulk procurement or exchange.

Q: What certifications does the CREVIS ST-3214 carry?

A: It is tested and marked with CE, UL, and cUL certifications, ensuring compliance with international and domestic safety and performance standards.

Q: How do LED indicators enhance the usage of this module?

A: The per-channel and module status LEDs offer instant visual feedback on input activity and operational health, simplifying diagnostics and maintenance.
