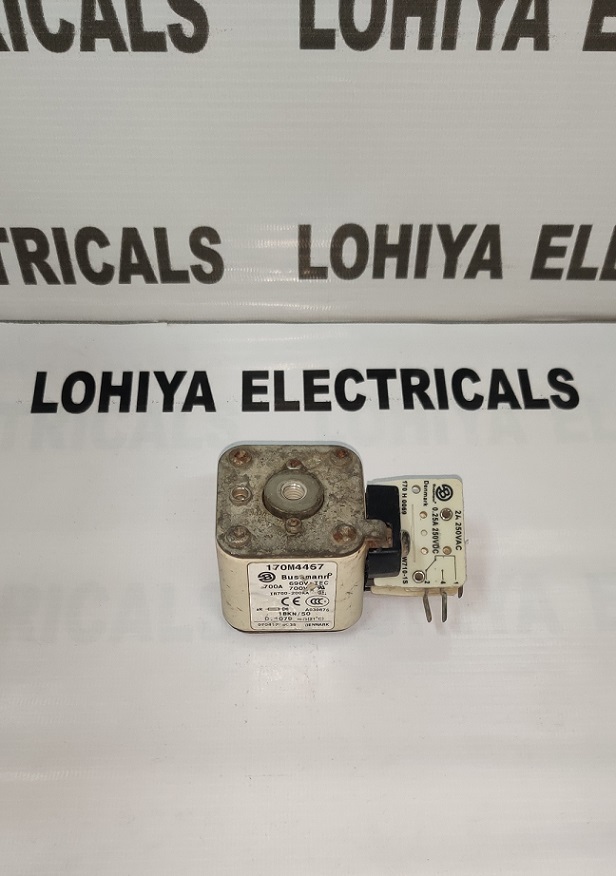

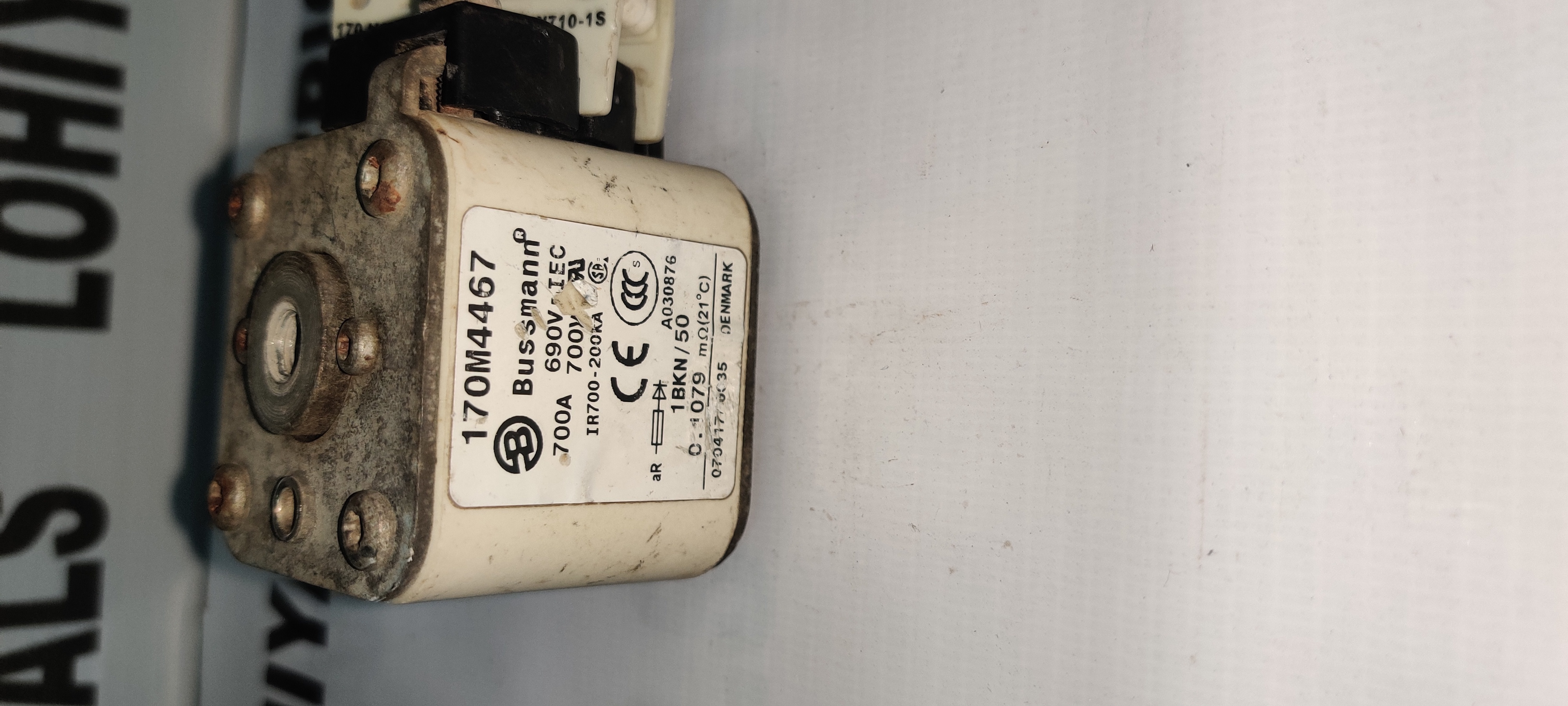

BUSSMANN 170M4467 FUSE

Get a Price/Quote

BUSSMANN 170M4467 FUSE Specification

Operating Temperature
-40C to +80C

Working Temperature
-40C to +80C

Application
Semiconductor protection, AC/DC drives, power conversion equipment

Current Range
500A (Rated)

Cooling Method
Passive

Features
High breaking capacity, Low watt loss, Fast acting, DIN mounted, Touch safe design

Connector Type
Bolt-on terminals

Rated Current
500A

Product Type
Square Body High-Speed Fuse

Input Voltage
690V AC (Maximum) / 650V DC (Maximum)

Voltage Protection
High-speed circuit protection

Material
Ceramic, Silver-plated Copper

Storage Temperature
-40C to +80C (typical)

Weight
Approx. 775 grams

Typical I2t Clearing
18900 A2s

Typical I2t Pre-arc
3000 A2s

Product Dimensions
Approx. 135mm (Length) x 61mm (Width) x 77mm (Height)

Standards
IEC 60269-4, UL Recognized

Package
Single Unit

Contact Material
Silver-plated copper

Mounting Type
Stud (DIN Mounting)

Response Time
Ultra-fast acting

Body Size
Size 3 (135mm × 61mm × 77mm approx.)

Breaking Capacity
Up to 200 kA at 690V AC

Indicator
With visual blown fuse indicator

Part Number
170M4467

About BUSSMANN 170M4467 FUSE

Experience instant savings with the grandiose BUSSMANN 170M4467 Fusedesigned for prime performance in hot deal semiconductor protection and power conversion equipment. With a remarkable breaking capacity up to 200 kA and ultra-fast acting response, this fuse ensures sizzling circuit safety at a rated current of 500A. Its touch-safe, DIN-mounted design and visual blown fuse indicator deliver reliability and swift replacement. Crafted from ceramic and silver-plated copper, its IEC and UL recognized, making it the ideal choice for demanding industrial applications. Remarked for its low watt loss and high efficiency.

Usage Directions & Material Features

The BUSSMANN 170M4467 FUSE is easily installed using the bolt-on terminals and DIN mounting. Made from robust ceramic and silver-plated copper, it provides touch-safe operation and ultra-fast protection. Designed for semiconductor protection and general power conversion use, its blown fuse indicator enhances maintenance and safety. Suitable for both specific and general applications, it combines durability with high-speed circuit protection in demanding environments.

Main Export Markets & Shipping Offers

This fuse is highly sought after in prime export markets including Europe, Asia, and the Middle East. Quick dispatch ensures minimal wait times, with secure shipping from major FOB ports in India. Customers benefit from hot deals and special offers on bulk orders. Every order is handled with care, guaranteeing swift delivery and optimal condition for industrial users requiring reliable power conversion and AC/DC drive protection.

FAQs of BUSSMANN 170M4467 FUSE:

Q: How is the BUSSMANN 170M4467 Fuse installed?

A: The fuse utilizes DIN mounting and bolt-on terminals, allowing for straightforward stud installation and secure connection in electrical panels or equipment.

Q: What applications are ideal for the 170M4467 fuse?

A: This fuse is best suited for semiconductor protection, AC/DC drives, and power conversion equipment where high-speed, reliable circuit protection is critical.

Q: When should the visual blown fuse indicator be checked?

A: The visual blown fuse indicator should be checked during routine maintenance or immediately after any suspected electrical fault to ensure system safety and operation.

Q: Where can this fuse be shipped from in India?

A: Quick dispatch and secure shipping are available from major FOB ports in India, delivering to prime export markets across Europe, Asia, and the Middle East.

Q: What benefits does the ultra-fast acting design offer?

A: Its ultra-fast acting design provides rapid circuit interruption, minimizing damage to sensitive components and reducing downtime in critical industrial systems.

Q: How does the material contribute to fuse performance?

A: The ceramic body and silver-plated copper contacts ensure robust construction, optimal conductivity, efficient heat dissipation, and reliable operation in high-demand scenarios.
