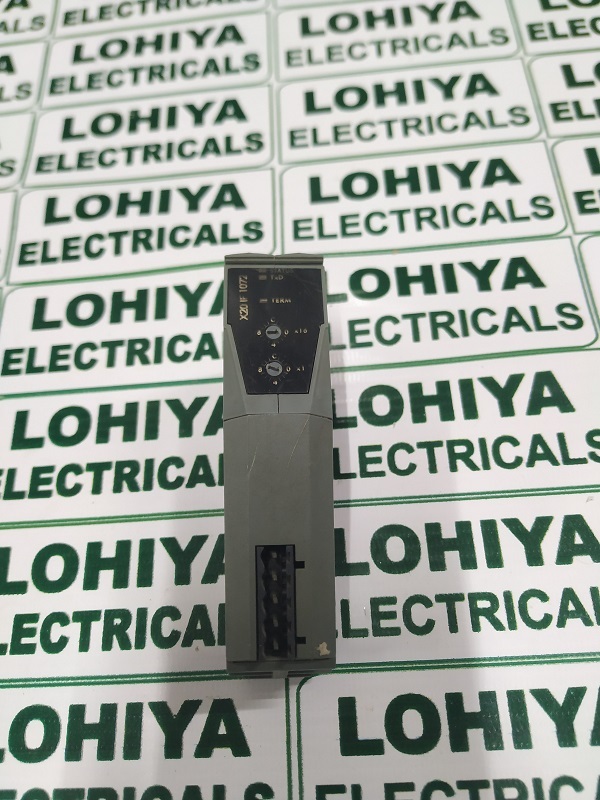

B&R X20 IF 1072 INPUT MODULE

Get a Price/Quote

B&R X20 IF 1072 INPUT MODULE Specification

Components
Microcontroller, Optoisolators

Connectivity Type
X20 System Bus, Spring Clamp Terminals

Rated Current
< 6 mA per input

Way
8-Channel

Operating Voltage
24 VDC

Cover Material
Plastic

Current Rating
6 mA per channel

Cooling System
Passive

Features
Hot-swappable, Module-based expansion

Base Material
Plastic

Rated Operation Voltage
24 VDC

Thickness
25 mm

Control System
PLC Compatible

Rated Insulation Voltage
50 V

Protection Level
IP20

Protection Class
Class III

Panel Type
DIN Rail Mount

Product Type
Digital Input Module

Material
Plastic Housing, Electronic Components

Surface Finish
Matte

Standard
IEC 61131-2

Surface Color
Gray

Rated Voltage
24 VDC

Dimension (L*W*H)
99 x 24 x 12 mm

Application
Industrial Automation

IP Rating
IP20

Display Type
LED Status Indicators

Reverse polarity protection
Yes

Operating temperature range
0 C to +55 C

Signal voltage (Low/High)
Low: 05 V, High: 1530 V

Mounting method
Directly on DIN rail (X20 system)

Input delay
<1 ms

Weight
Approx. 50 g

Storage temperature range
-25 C to +70 C

Input channels
8 digital inputs

Diagnostics
LEDs for Input and Error

Relative humidity
5% to 95%, non-condensing

About B&R X20 IF 1072 INPUT MODULE

Unlock stellar efficiency in your industrial automation projects with the B&R X20 IF 1072 INPUT MODULE. Take advantage of this exceptional 8-channel input module, designed for crackerjack performance and reliability. Capable of handling signal voltages from 0 to 30 V and boasting input delays under 1 ms, this module values both speed and accuracy. Reverse polarity protection and LED diagnostics deliver additional safety and insight, while DIN rail mounting and a matte-finish plastic housing ensure easy installation. Rated at IP20, the module is PLC compatible, hot-swappable, and offers module-based expansion, making it a top choice for advanced control systems in India.

Versatile Industrial Application & Advanced Features

The B&R X20 IF 1072 INPUT MODULE is ideal for versatile industrial usage in automation environments. Its hot-swappable, module-based design allows seamless integration and system expansion, making it suitable for PLC-based process control, monitoring, and data acquisition. Extra features, such as reverse polarity protection and LED status indicators, enhance operational reliability and real-time diagnostics. This module is typically used as a reliable interface component in complex control panels and automation setups, ensuring motivation for efficient, error-free functioning.

Payment Terms, Export Market Value & Secure Packaging

The rate of the B&R X20 IF 1072 INPUT MODULE is competitive, reflecting its advanced capabilities and market value. Payment terms are generally flexible, including standard options like advance payment, letter of credit, or bank transfer, tailored to buyer requirements. The main export markets are India and neighboring industrial hubs. Packaging is thoroughly robust, with estimated protection to prevent damage during transitmodules are securely boxed and cushioned for safe delivery, ensuring peak performance upon arrival.

FAQs of B&R X20 IF 1072 INPUT MODULE:

Q: How does the B&R X20 IF 1072 INPUT MODULE benefit industrial automation systems?

A: The module offers speedy and reliable digital input processing, exceptional diagnostics with LED indicators, and module-based scalability, making it ideal for precise industrial control and monitoring.

Q: What is the process for installing the B&R X20 IF 1072 INPUT MODULE on a control panel?

A: Installation is straightforwardmount the module directly onto a DIN rail within the X20 system framework, then connect input channels via spring clamp terminals. Its hot-swappable feature enables easy replacement without system downtime.

Q: Where can the B&R X20 IF 1072 INPUT MODULE be used most effectively?

A: It is best used in factory automation, process control, and monitoring systems requiring reliable digital input, particularly where fast response times and modular expansion are needed.

Q: What extra features distinguish this input module from others in the market?

A: Distinctive features include fast input delay (<1 ms), reverse polarity protection, LED status and error diagnostics, and compatibility with PLC and X20 bus systems, enhancing operational safety and efficiency.

Q: When is the optimal time to perform diagnostics on the module?

A: Diagnostics can be performed in real-time using the integrated LED indicators, allowing instant verification of input status and error detection during routine system checks or troubleshooting.
