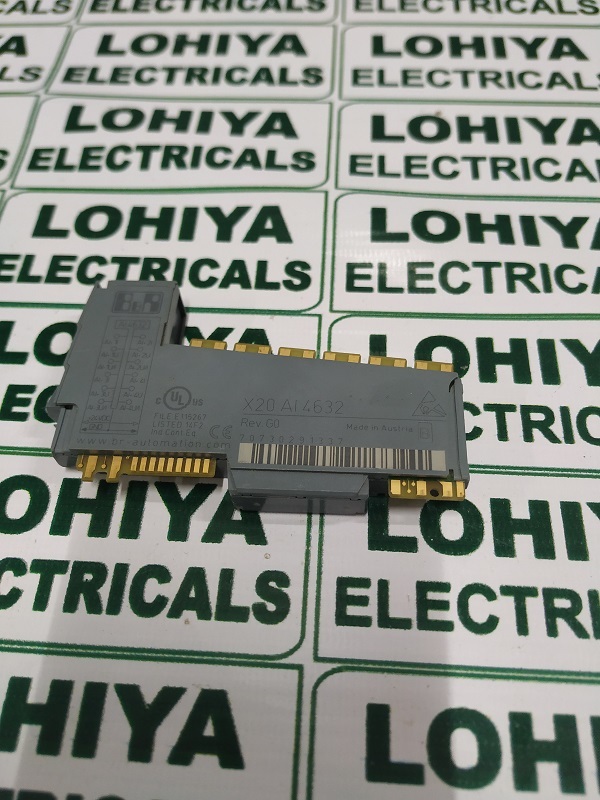

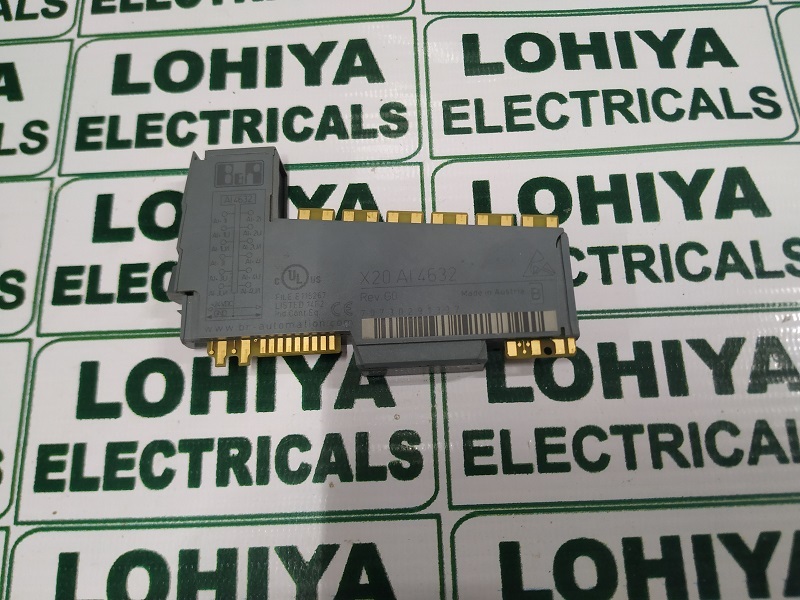

B&R X20 AI 4632 INPUT MODULE

Get a Price/Quote

B&R X20 AI 4632 INPUT MODULE Specification

Operating Voltage
24 V DC

Current Rating
< 10 mA per channel

Way
4-channel

Components
4 analog inputs (current/voltage)

Thickness
22.5 mm

Protection Level
IP20

Rated Current
< 10 mA per channel

Panel Type
DIN rail mounting

Protection Class
III

Rated Insulation Voltage
300 V

Connectivity Type
Removable 12-pin terminal block

Cover Material
Plastic

Rated Operation Voltage
24 V DC

Control System
B&R X20 System

Features
Hot-swappable, Diagnostic LEDs, High precision

Base Material
Plastic

Cooling System
Passive

Product Type
Analog input module

Material
High-grade industrial plastic

Surface Finish
Matte

Standard
IEC 61131-2, CE

Surface Color
Black/Gray

Rated Voltage
24 V DC

Dimension (L*W*H)
99 x 22.5 x 73 mm

Application
Industrial Automation, PLC

IP Rating
IP20

Display Type
LED status indicators

Designation
X20AI4632

Resolution
16 bit

Input Resistance
>100 k (voltage); 250 (current)

Mounting Type
DIN rail

Input Type
Analog (voltage or current)

Vendor
B&R Industrial Automation

Input Ranges
0-10 V, +/-10 V, 0-20 mA, 4-20 mA selectable

Relative Humidity
5% to 95% (non-condensing)

Storage Temperature
-40C to +85C

Isolation
Channel-to-bus and channel-to-channel isolation

Weight
approx. 100 g

Signal Delay
max. 2 ms

Operating Temperature
-25C to +60C

B&R X20 AI 4632 INPUT MODULE About

Unlock remarkable precision in your automation systems with the in-demand B&R X20 AI 4632 INPUT MODULE. This potent module offers 4-channel analog signal acquisition, supporting scarce yet essential ranges like 0-10 V, 10 V, 0-20 mA, and 4-20 mA. Its 16-bit resolution enables soaring performance and fine-grained control, while robust isolation and DIN rail mounting ensure reliability in harsh environments. Designed with hot-swappable features and diagnostic LEDs, the X20 AI 4632 matches the rigorous demands of modern industrial automation in India, making it a sought-after solution for scalable PLC installations.

Versatility & Deployment Sites

The B&R X20 AI 4632 INPUT MODULE is widely used by engineering professionals and automation integrators. It is ideal for process control, factory automation, and demanding PLC applications. Used for analog signal acquisition, this module finds its site of application in manufacturing plants, production lines, and process industries. Its adaptable design ensures seamless integration into both new and existing B&R X20 control systems, providing enhanced operational flexibility.

Certifications & Availability

Certified to IEC 61131-2 and marked with a CE rating, the B&R X20 AI 4632 meets strict safety and quality standards. Sample units are available for evaluation before full proposal amount and rate are finalized. Modules are handed over primarily within Indias main domestic market, ensuring streamlined procurement. These certifications and the swift sample availability make this module a reliable choice for automation projects requiring validated compliance and procurement efficiency.

FAQs of B&R X20 AI 4632 INPUT MODULE:

Q: How does the B&R X20 AI 4632 INPUT MODULE benefit industrial automation applications?

A: The module offers high-precision analog input conversion, facilitating reliable monitoring and control of process variables in industrial automation, leading to improved system accuracy and responsiveness.

Q: What are the selectable input ranges on the X20 AI 4632 INPUT MODULE?

A: Users can select between voltage (0-10 V, 10 V) and current (0-20 mA, 4-20 mA) input ranges, making it adaptable for a variety of analog sensor signals.

Q: When should I consider using the B&R X20 AI 4632 INPUT MODULE?

A: This module is ideal when your control system requires robust, scalable, and high-resolution analog signal processing, especially in dynamic industrial settings.

Q: Where is the X20 AI 4632 typically installed within an automation system?

A: It is DIN rail-mounted within control panels and PLC enclosures, fitting seamlessly into B&R X20 system architectures in various site applications.

Q: What is the process to request a sample or finalize a procurement for this module?

A: You can request a sample from suppliers in India, review its suitability, and then proceed with the full proposal amount and rate before the final handover of units.
