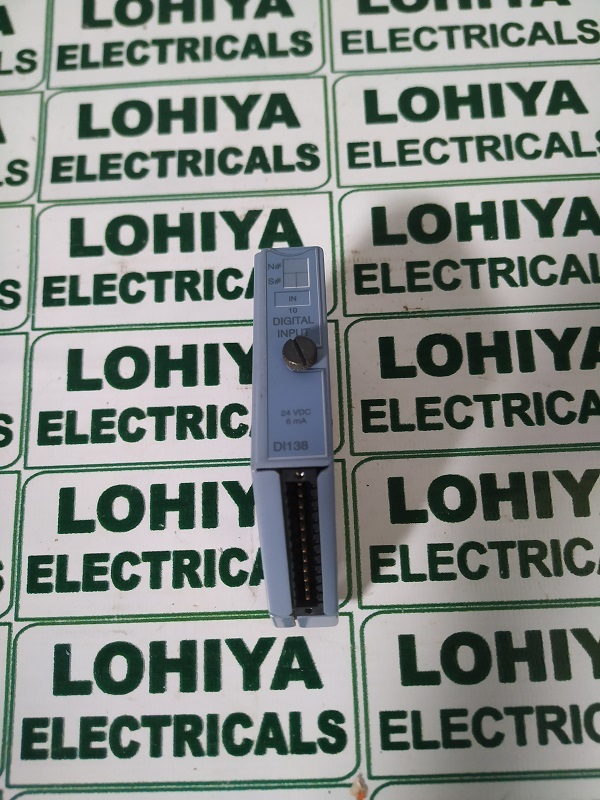

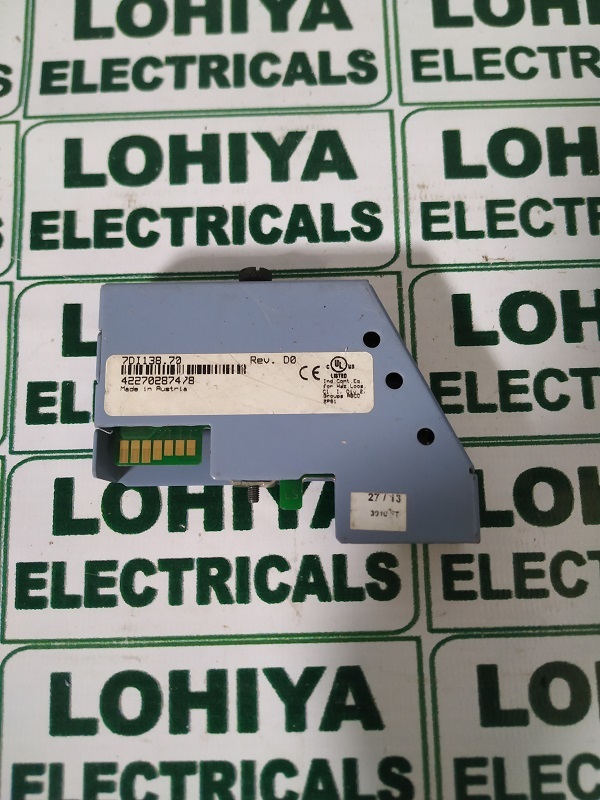

B&R 7DI138.70 DIGITAL INPUT MODULE DI138

Get a Price/Quote

B&R 7DI138.70 DIGITAL INPUT MODULE DI138 Specification

Connector Type
Removable 10-pin terminal

Power Supply
Via system bus

Current Range
2 mA per input

Application
Automation Systems

Features
Diagnostics LEDs, short-circuit protection, hot swap support

Operating Temperature
0°C to +55°C

Working Temperature
0°C to +55°C

Cooling Method
Passive

Product Type
Digital Input Module

Input Voltage
24 V DC

Voltage Protection
Reverse polarity protection

Material
Industrial-grade enclosure

Storage Temperature
-25°C to +70°C

Weight
Approx. 185 g

Module Width
22.5 mm

Part Number
7DI138.70

Input Delay
Approx. 3 ms

Input Type
Sink (PNP)

Module Series
X20 System

Max Permissible Total Current
16 mA

Number of Digital Inputs
8 channels

Input Signal Voltage Range
15 V DC to 30 V DC

Mounting Type
DIN rail

Isolation
Optoisolated inputs

Status Indication
LED per channel

Module Number
DI138

Protection Class
IP20

B&R 7DI138.70 DIGITAL INPUT MODULE DI138 About

Ending Soon: Elevate your automation systems with the B&R 7DI138.70 DIGITAL INPUT MODULE DI138, a gilt-edged paragon of reliability and efficiency. This highlighted module boasts eight unrivaled PNP-type digital input channels, encapsulated in a robust industrial-grade enclosure. With features such as reverse polarity protection, diagnostic LEDs, and hot swap support, it delivers steadfast performance and safety on DIN rails. Its optoisolated 24 V DC input and IP20 rating guarantee operational integrity. Dont miss this exclusive opportunitypurchase now for dependable automation excellence.

Top-Tier Build and Advanced Features

The B&R 7DI138.70 DIGITAL INPUT MODULE DI138 is engineered with a rugged industrial-grade enclosure for superior durability across harsh environments. It easily mounts on DIN rails and connects via a removable 10-pin terminal. Special features include reverse polarity and short-circuit protection, optoisolated inputs, and individual LED status indication. Designed for passive cooling, the module supports effortless replacement with hot swap capability, making it ideal for streamlined automation system integration.

Domestic Market Presence and Seamless Delivery

Primarily available across the main domestic market in India, the B&R 7DI138.70 DI138 can be readily sampled upon request. Secure packaging ensures safety during all transport services, and efficient delivery guarantees prompt arrival. Prospective buyers can enquire about the asking price and receive tailored quotes. Our distribution network ensures reliable, on-time shipment, whether for single modules or bulk orders, supporting automation professionals throughout the region.

FAQs of B&R 7DI138.70 DIGITAL INPUT MODULE DI138:

Q: How is the B&R 7DI138.70 DIGITAL INPUT MODULE DI138 installed?

A: The module is designed for quick DIN rail mounting and features a removable 10-pin terminal for hassle-free connection, making installation straightforward in automation panels.

Q: What special features enhance the reliability of this input module?

A: Key features include diagnostic LEDs on each channel, short-circuit and reverse polarity protection, input optoisolation, hot swap support, and an IP20 industrial enclosure, ensuring long-term operational safety and integrity.

Q: Where can I use the B&R 7DI138.70 DI138 module?

A: This input module is suitable for automation systems in industrial environments requiring robust digital input handling for sink-type (PNP) signals and consistent LED status feedback.

Q: What is the process for requesting a sample or placing a purchase order in India?

A: Interested customers can contact authorized suppliers or traders in India for sample availability, obtain packaging details, and request current asking prices prior to initiating an order.

Q: What are the operational voltage and current specifications of this module?

A: It accepts input signal voltages between 15 V DC and 30 V DC, ideally operating at 24 V DC, with each channel supporting a max 2 mA input current and a 16 mA total limit.
