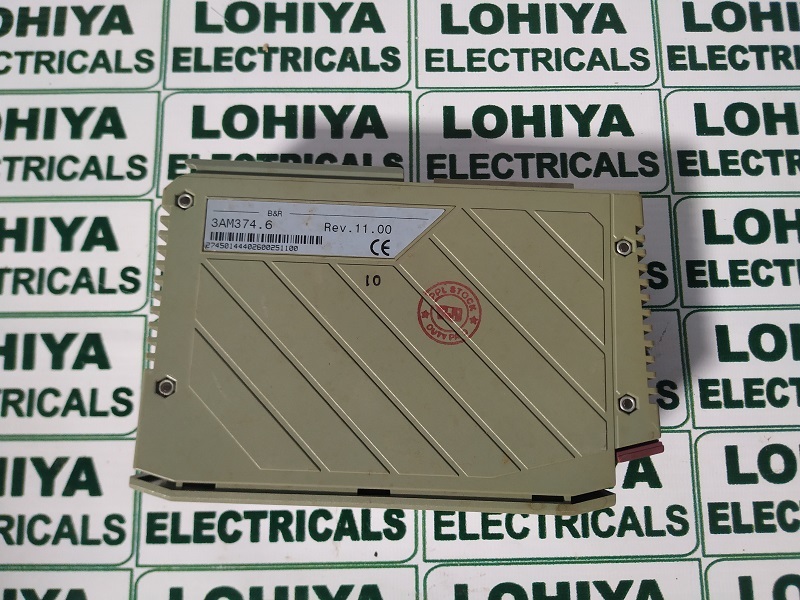

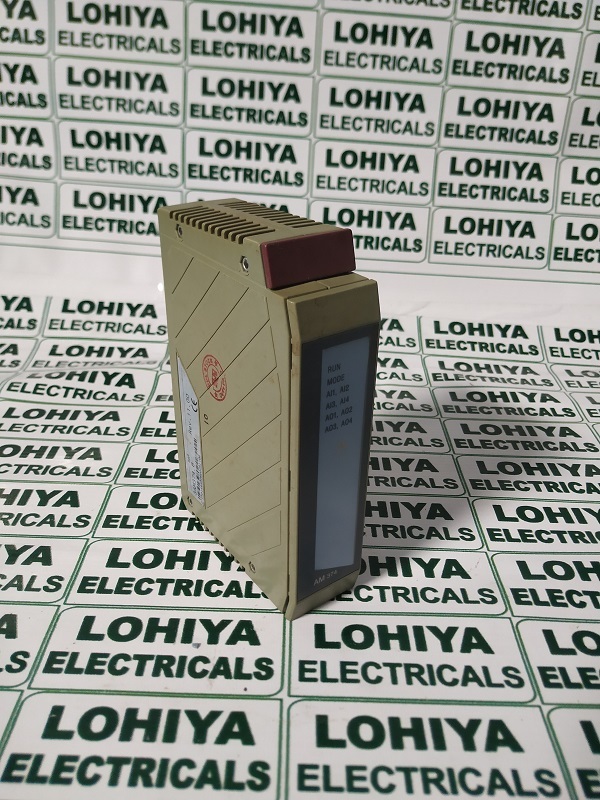

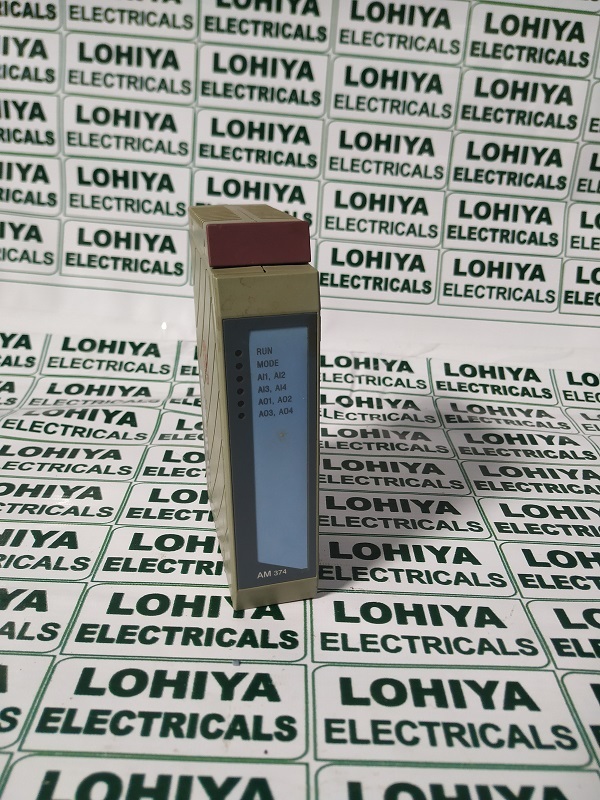

B&R 3AM374.6 ANALOG INPUT MODULE

Get a Price/Quote

B&R 3AM374.6 ANALOG INPUT MODULE Specification

Current Rating
<10 mA per input channel

Features
High accuracy, reliable signal processing, compact design

Protection Level
Overvoltage/Short-circuit protected

Panel Type
DIN rail

Base Material
Industrial-grade polymer

Cabinet Material
Not included

Control System
PLC compatible

Cooling System
Passive

Operating Voltage
24V DC

Rated Operation Voltage
24V DC

Way
Multi-channel (8 analog inputs)

Rated Current
<10 mA per channel

Components
Analog input channels, signal conditioning circuitry

Protection Class
Class I

Thickness
Standard module width

Rated Insulation Voltage
500V

Connectivity Type
Spring clamp terminal connection

Cover Material
Polycarbonate

Product Type
Analog Input Module

Material
High-grade industrial electronic components

Surface Finish
Matte

Standard
IEC 61131-2

Surface Color
Grey/Black

Rated Voltage
24V DC

Maximum Output Current
N/A (Input module)

Dimension (L*W*H)
100 x 22.5 x 72 mm

Application
Industrial automation

IP Rating
IP20

Display Type
Status LED indicators

Input Signal Types
Voltage (0-10V), Current (0/4-20 mA)

Humidity
5% to 95% (non-condensing)

Accuracy
0.3%

Resolution
12 Bit

Input Resistance
>100 kOhm (Voltage), 250 Ohm (Current)

Part Number
3AM374.6

Operating Temperature
0C to +55C

Isolation
Channel to bus: yes, galvanically isolated

Sampling Time
1 ms per channel

Storage Temperature
-25C to +70C

Number of Input Channels
8 analog inputs

Power Consumption
Max. 1.5 W

Response Time
<3 ms

Mounting
DIN rail mount

About B&R 3AM374.6 ANALOG INPUT MODULE

Unveil a wondrous Deal on the resplendent B&R 3AM374.6 ANALOG INPUT MODULE, ideal for those seeking flawless analog input capability. Featuring 8 multi-channel analog inputs, this module expertly handles voltage (0-10V), as well as current (0/4-20mA), with a 12-bit resolution and sampling time 1ms per channel. Crafted from high-grade industrial materials and engineered for supreme reliability, each unit boasts galvanic isolation and overvoltage protection. With limited stock available, now is the moment to reserve this essential module for your automation needs in India. Secure flawless performance for all your PLC systems today.

Broad Industrial Utility and User-Friendly Application

The B&R 3AM374.6 ANALOG INPUT MODULE is widely used by automation engineers, system integrators, and industrial facility operators. Its robust construction and easy DIN rail mounting allow for hassle-free installation and integration. Designed primarily for industrial automation solutions, its usage ensures seamless analog signal acquisition for sophisticated PLC systems, all while maintaining high accuracy and reliabilitymaking it a top choice for diverse plant environments across India.

Certifications and Acquisition: Reliability Delivered

Handed over with compliance to IEC 61131-2, the module meets rigorous industry standards ensuring quality and safety. Payment terms are flexible, facilitating a smooth exchange whether purchasing one or several units. Quick dispatch is prioritized, allowing you to promptly incorporate this module into your automation projects. For those interested, sample units can be requestedempowering you to test and approve before placing larger orders for your enterprises needs.

FAQs of B&R 3AM374.6 ANALOG INPUT MODULE:

Q: How do I install the B&R 3AM374.6 Analog Input Module in my industrial setup?

A: The module is designed for DIN rail mounting, allowing easy installation and integration into your existing PLC system with spring clamp terminal connections and equipped status LED indicators for visual feedback.

Q: What are the main benefits of using the B&R 3AM374.6 in automation systems?

A: This module offers high-resolution, rapid signal acquisition with galvanic isolation and overvoltage protection, ensuring flawless and reliable analog input processing in demanding industrial environments.

Q: When can I expect delivery after reserving the module?

A: After confirming your order and payment, quick dispatch procedures ensure your B&R 3AM374.6 module is shipped promptly, often within a few working days, depending on current stock levels.

Q: What certifications does the B&R 3AM374.6 meet?

A: The module is manufactured to comply with IEC 61131-2 standards, guaranteeing adherence to industry specifications for safety, performance, and quality.

Q: Can I request a sample before making a large purchase?

A: Yes, sample units can be provided to allow you to evaluate performance and compatibility before exchanging funds for a full order.

Q: Where can the B&R 3AM374.6 module be used?

A: It is perfectly suited for industrial automation applications, including manufacturing facilities, process industries, and any PLC-compatible setup requiring accurate analog input modules.
