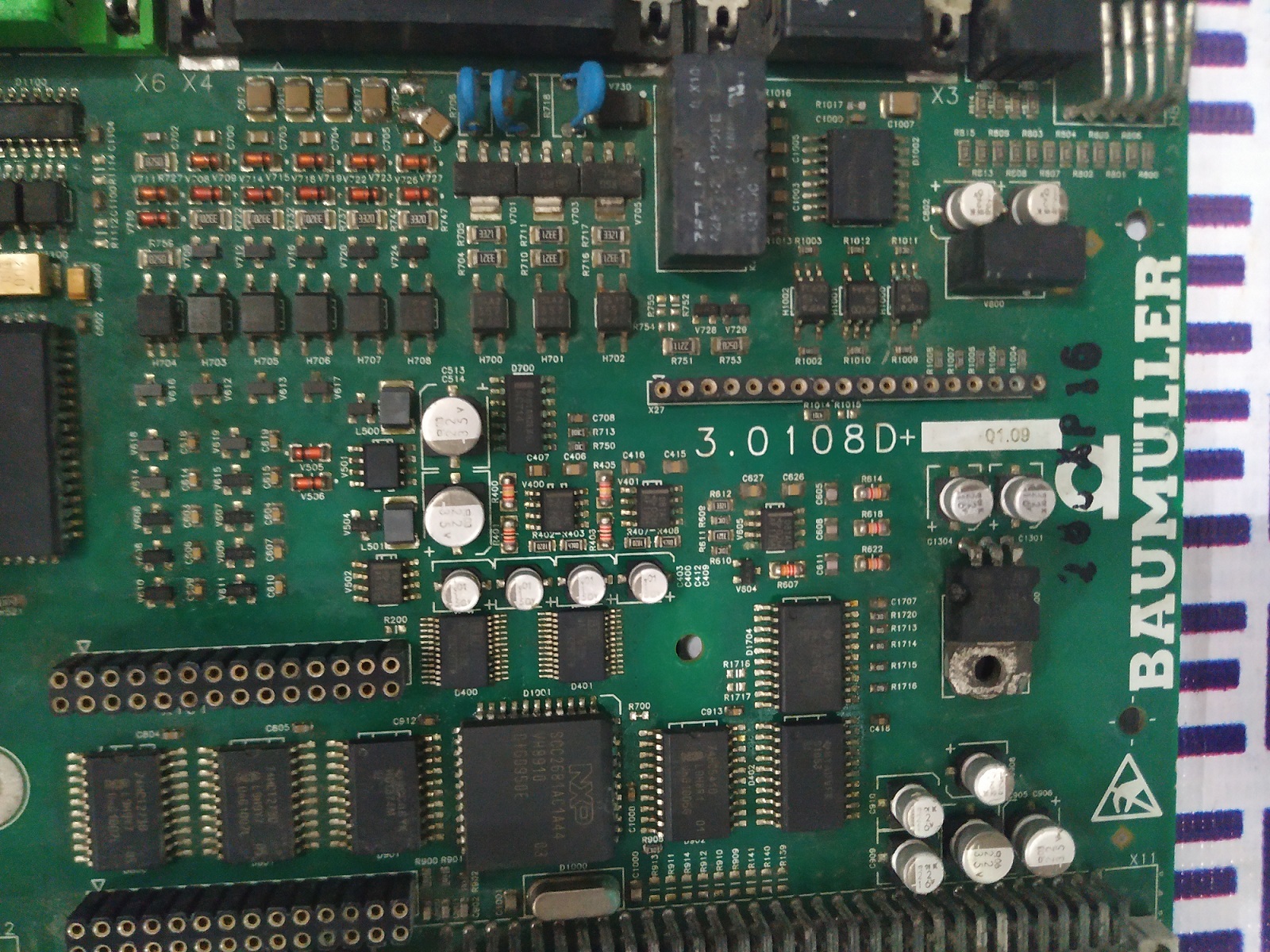

BAUMULLER MAIN BOARD 3.0108D

Get a Price/Quote

BAUMULLER MAIN BOARD 3.0108D Specification

Way
Multi-channel control

Connectivity Type
Terminal blocks, pin headers, ribbon cable connections

Current Rating
2 A per output

Components
Microcontrollers, relays, capacitors, connectors

Cover Material
None (open PCB)

Base Material
FR4 Glass Epoxy

Protection Class
Class III (Safety Extra Low Voltage)

Thickness
1.6 mm (PCB thickness)

Panel Type
Plug-in, screw-mount

Cabinet Material
None (bare PCB)

Rated Current
Up to 2 A per channel

Protection Level
Standard PCB protection (no enclosure, conformal coating optional)

Features
High reliability, replaceable ICs, modular structure

Rated Insulation Voltage
500 V

Control System
Digital control, compatible with Baumuller motion controllers

Operating Voltage
24 V DC

Rated Operation Voltage
24 V DC

Cooling System
Passive, convection cooled

Product Type
Main Board (Control PCB)

Material
PCB (Printed Circuit Board), Electronic components

Surface Finish
Solder mask on PCB, component side wave-soldered

Standard
OEM, compatible with Baumuller systems

Surface Color
Green

Rated Voltage
24 V DC (typical for control boards)

Frequency (MHz)
16 MHz (control signals)

Maximum Output Current
Dependent on installed circuit, typically up to 2A per output

Dimension (L*W*H)
Approx. 310 x 130 x 35 mm

Application
Industrial automation, machine control

IP Rating
IP00 (PCB not enclosed)

Display Type
LED status indicators (on board)

Serviceability
Field replaceable, diagnostic LEDs present

Part Number
3.0108D

Weight
620 grams (approx.)

Temperature Range
Operating: 0°C to +50°C

Electrostatic Protection
Basic ESD protection diodes

Humidity Range
10% to 90% RH, non-condensing

Mounting
Mounting holes for panel or enclosure installation

Signal Interfaces
Digital input/output, TTL compatible

Isolation
Opto-isolated inputs/outputs in power circuit sections

PCB Layers
4-layer design for signal integrity and power distribution

Storage Temperature
-20°C to +70°C

RoHS Compliance
Yes

About BAUMULLER MAIN BOARD 3.0108D

Ending soonsecure the acclaimed BAUMULLER MAIN BOARD 3.0108D for your automation needs! Renowned for its stellar 4-layer PCB design, this unrivaled control board offers pivotal features including opto-isolated digital control, TTL compatibility, and instant checkout options for seamless procurement. The 3.0108D delivers robust performance within 0C to +50C, supports multi-channel outputs up to 2A, and is field-replaceable with diagnostic LEDs for straightforward service. RoHS compliant and trusted by OEMs across India, its engineered for reliability and modular easeperfect for advanced machine control applications.

Versatile Advantage and Broad Application Scope

The BAUMULLER MAIN BOARD 3.0108D stands out for its modular structure, high reliability, and field-replaceable design, making it advantageous for rapid machine maintenance. Widely used by industrial automation specialists and OEMs, its compatibility with Baumuller controllers ensures seamless system integration. Beyond machine control, the board suits diverse applications in process automation, packaging lines, and roboticsanywhere precision and uncompromised stability are necessary in Indias dynamic manufacturing environments.

Compliance, Rapid Supply & Easy Sampling Policies

Certified to RoHS standards and adhering to stringent quality, the BAUMULLER MAIN BOARD 3.0108D is always available with quick dispatch for urgent requirements. Shipped across India, the supplier maintains an impressive supply ability to handle both bulk and sample orders. Interested clients can easily request samples with a transparent proposal amount, ensuring product suitability before larger commitments. This approach guarantees smooth procurement and minimal lead times for automation projects.

FAQs of BAUMULLER MAIN BOARD 3.0108D:

Q: How does the BAUMULLER MAIN BOARD 3.0108D benefit industrial automation users?

A: The 3.0108D main board provides robust, modular control with opto-isolated I/Os, diagnostic LEDs, high reliability, and field-replaceability, ensuring efficient maintenance and continuous operation in rigorous industrial environments.

Q: What is the process for replacing the board in the field?

A: Thanks to its field-replaceable design, the board can be quickly swapped out using standard tools and mounting holes, minimizing downtime and supporting efficient maintenance procedures.

Q: Where is the BAUMULLER MAIN BOARD 3.0108D commonly used?

A: This main board is typically used in industrial automation, machine control systems, manufacturing lines, packaging equipment, and robotics, particularly in environments requiring precise and resilient digital control.

Q: What signal interfaces and connectivity options does the 3.0108D provide?

A: The board offers TTL-compatible digital input/output via opto-isolated channels, with terminal blocks, pin headers, and ribbon cable connections for integration into diverse systems.

Q: How is the board shipped and what is the sample policy?

A: Boards are shipped promptly with quick dispatch and supply assurances. Sample orders are supported upon request, requiring approval of a proposal amount to evaluate product fit before large-scale procurement.
