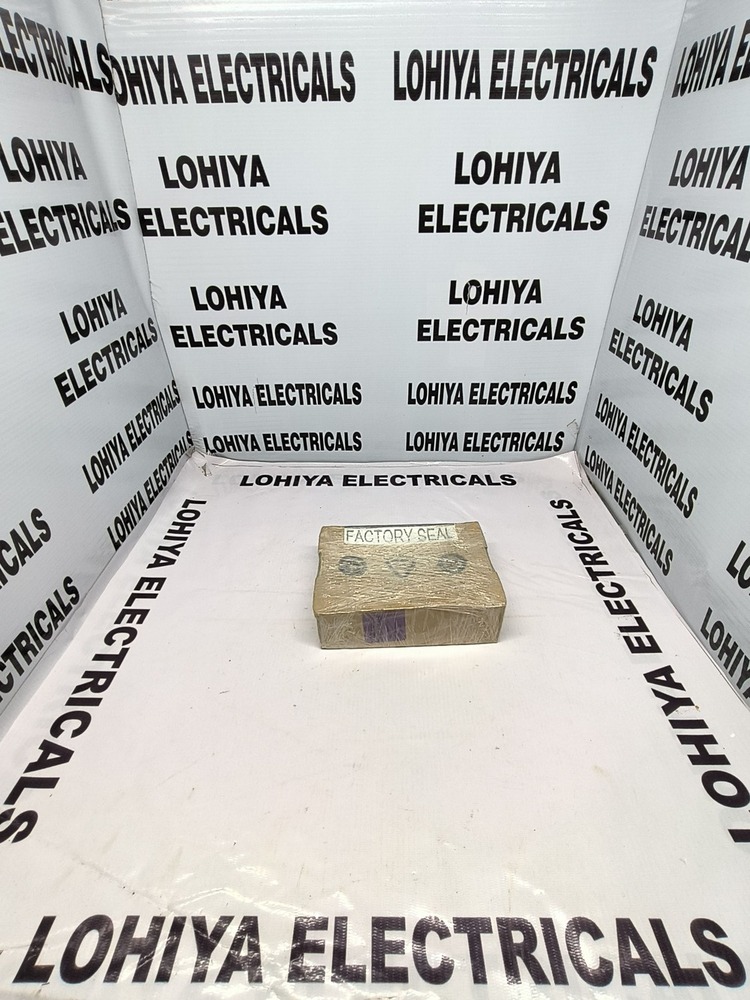

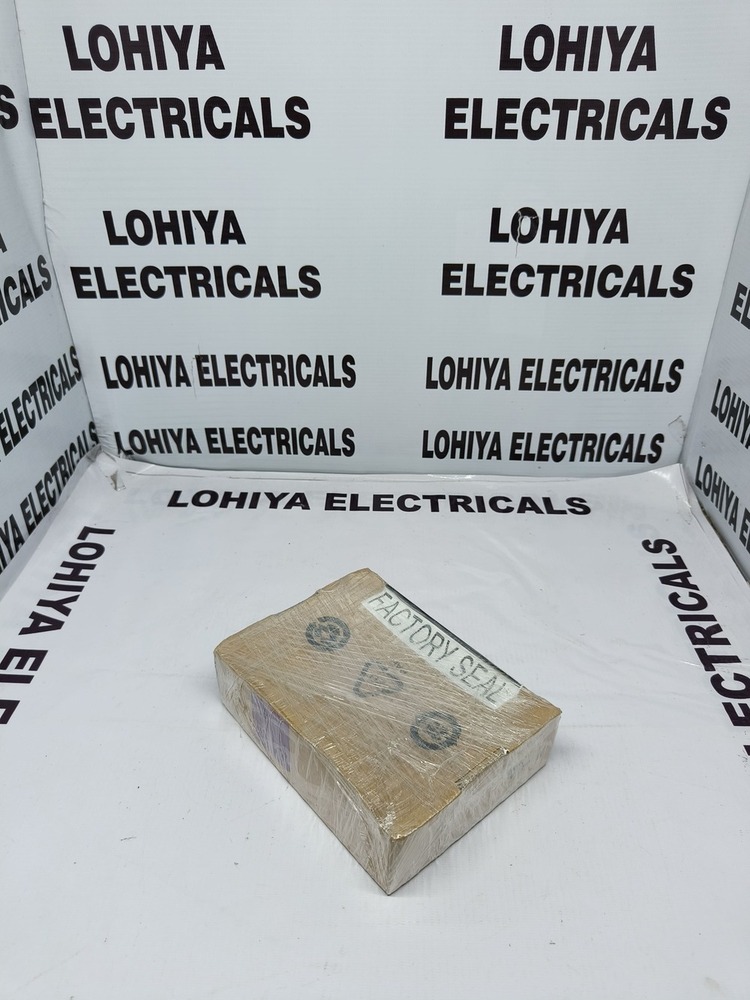

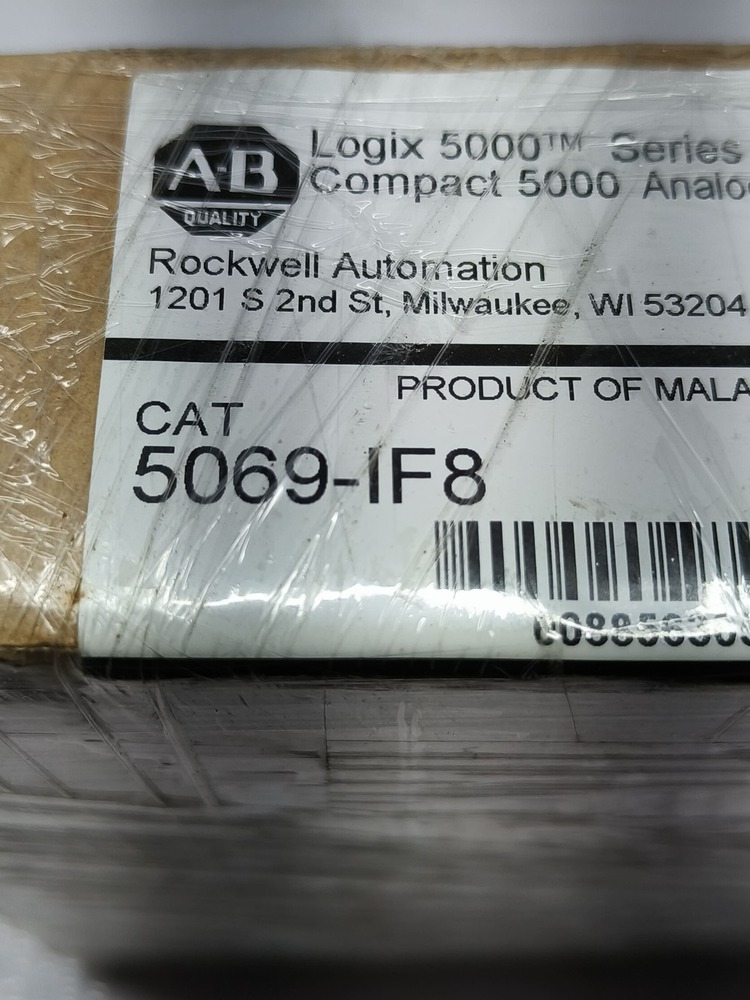

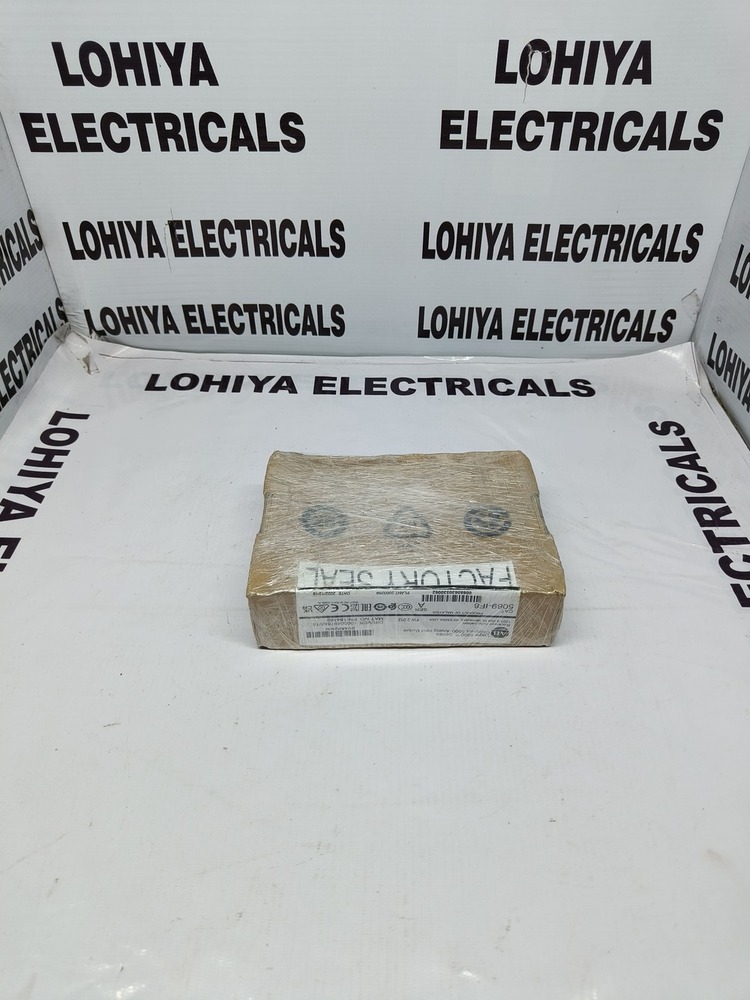

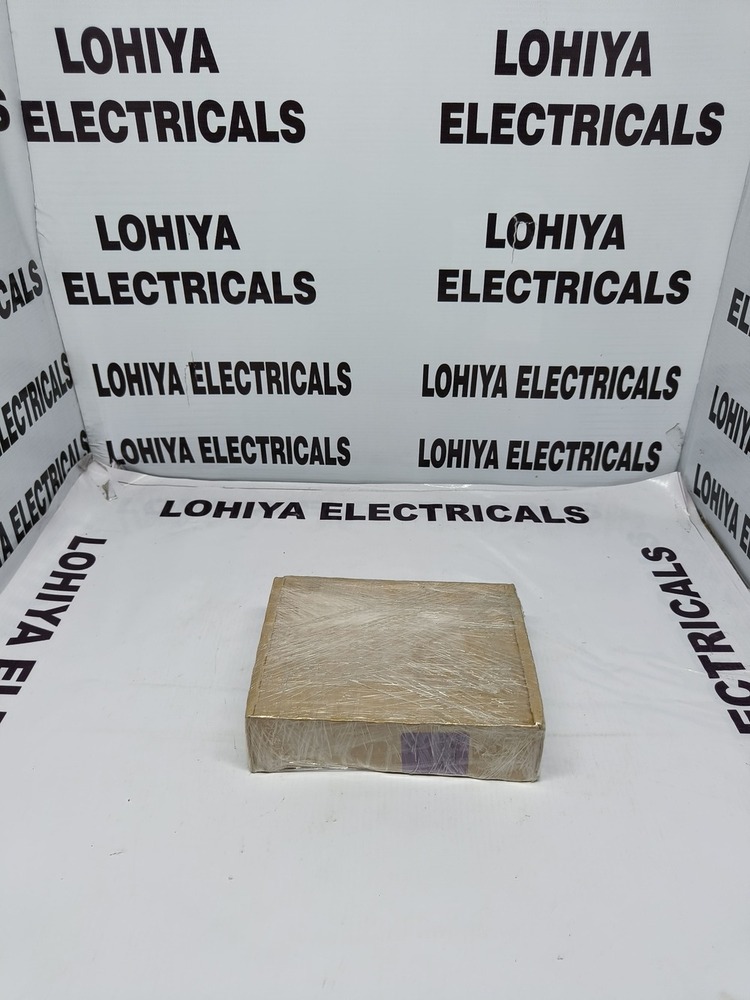

ALLEN BRADLY 5069-IF8 ANALOG INPUT MODULE

Price 1200.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

ALLEN BRADLY 5069-IF8 ANALOG INPUT MODULE Specification

Panel Type
DIN Rail Mount

Components
Analog Input Module, User Manual

Features
High Resolution Inputs, Compact Size, Removable Terminal Block, Status Indicators

Rated Insulation Voltage
50V AC/DC

Base Material
Polycarbonate

Rated Current
100 mA @ 5.1V DC, 30 mA @ 24V DC

Way
8 Channels

Cabinet Material
Not Applicable (Module)

Thickness
35 mm approx.

Operating Voltage
24V DC Nominal

Cooling System
Natural Air Cooling

Current Rating
100 mA @ 5.1V DC, 30 mA @ 24V DC

Rated Operation Voltage
24V DC

Cover Material
Polycarbonate

Protection Class
Class 1

Protection Level
IP20

Connectivity Type
Removable Terminal Block

Control System
Allen Bradley Compact 5000 Series PLCs

Product Type
Analog Input Module

Material
Plastic / Electronic Components

Surface Finish
Matte

Standard
Allen Bradley Factory Standards, UL/cUL, CE, KC, RCM

Surface Color
Gray

Rated Voltage
30V DC

Frequency (MHz)
DC Module - Not Applicable

Maximum Output Current
Not Applicable (Input Module)

Dimension (L*W*H)
103 x 28 x 112 mm

Application
Industrial Automation, PLC System Expansion

IP Rating
IP20

Display Type
Status LEDs

Input Type
Single-ended or Differential Analog

Module Location
Any I/O slot of Compact 5000 Series

Relative Humidity
5% to 95% non-condensing

Input Impedance
>1 M (Voltage)

Operating Temperature
-20C to +60C

Isolation
No channel-to-channel isolation

Input Signal Range
10V, 0-10V, 0-5V, 1-5V

Storage Temperature
-40C to +85C

Resolution
16 bits

Conversion Type
Successive Approximation

Backplane Current Consumption
100 mA @ 5.1V DC, 30 mA @ 24V DC (max)

About ALLEN BRADLY 5069-IF8 ANALOG INPUT MODULE

The ALLEN BRADLY 5069-IF8 Analog Input Module stands out as a sterling solution for industrial automation, delivering blue-ribbon accuracy with 16-bit resolution. Highly recommended for expanding Allen Bradley Compact 5000 Series PLCs, this top-drawer module supports both single-ended and differential analog inputs over versatile voltage ranges. Its reduced price is a compelling, ephemeral offer, making it ideal for professionals seeking reliable, factory-standard components for seamless system integration. With robust polycarbonate construction and UL/cUL, CE, KC, and RCM certifications, the 5069-IF8 assures durability and top-tier performance for all critical industrial processes.

Optimal Usage and Features for Industrial Automation

The ALLEN BRADLY 5069-IF8 Analog Input Module is purpose-built for seamless integration with Compact 5000 Series PLC systems, enabling swift and accurate data acquisition from varied analog sources. Users can easily deploy the module on any I/O slot via a DIN rail mount, benefitting from its removable terminal block and status LEDs for efficient setup. Designed for industrial automation and PLC system expansion, it boasts high-resolution input, compact size, and natural air cooling for continuous operation.

Domestic Market, Certifications, and Delivery Standards

Primarily supplied and traded within India's dynamic industrial sector, the ALLEN BRADLY 5069-IF8 Analog Input Module holds key certifications including UL/cUL, CE, KC, and RCM, reflecting its reliability and compliance. The product is dispatched from leading FOB ports across India, ensuring prompt delivery rates and streamlined logistics for customers. Its adherence to blue-ribbon standards ensures each module meets rigorous testing before delivery, making it a trusted choice for domestic industrial applications.

FAQ's of ALLEN BRADLY 5069-IF8 ANALOG INPUT MODULE:

Q: How do I install the ALLEN BRADLY 5069-IF8 Analog Input Module in a Compact 5000 Series PLC system?

A: The module can be easily installed in any I/O slot of a Compact 5000 Series PLC using a DIN rail mount. Simply attach the removable terminal block for secure connectivity and follow the user manual provided for detailed setup instructions.

Q: What types of analog input signals are compatible with the 5069-IF8 module?

A: The 5069-IF8 supports both single-ended and differential analog inputs with a versatile signal range including 10V, 0-10V, 0-5V, and 1-5V, ensuring compatibility with a wide variety of industrial sensors and devices.

Q: Where is the ALLEN BRADLY 5069-IF8 Analog Input Module primarily supplied, and how is it delivered?

A: This module is primarily supplied and dispatched within India, delivered through established FOB ports to ensure rapid and reliable delivery to domestic industrial customers.

Q: What are the main benefits of using the 5069-IF8 Analog Input Module?

A: The module provides high precision data acquisition with 16-bit resolution, flexible input types, compact design, easy installation, and robust compliance with multiple global certifications, ensuring reliability in demanding automation environments.

Q: When should the 5069-IF8 module be chosen for automation projects?

A: Choose this module when you require high-resolution analog input expansion, compatibility with Compact 5000 Series PLCs, and compliance with strict industrial standards for demanding automation tasks.

Q: What certifications does the ALLEN BRADLY 5069-IF8 Analog Input Module carry?

A: The module is certified under major industrial standards, including UL/cUL, CE, KC, and RCM, indicating its adherence to safety and performance requirements.
