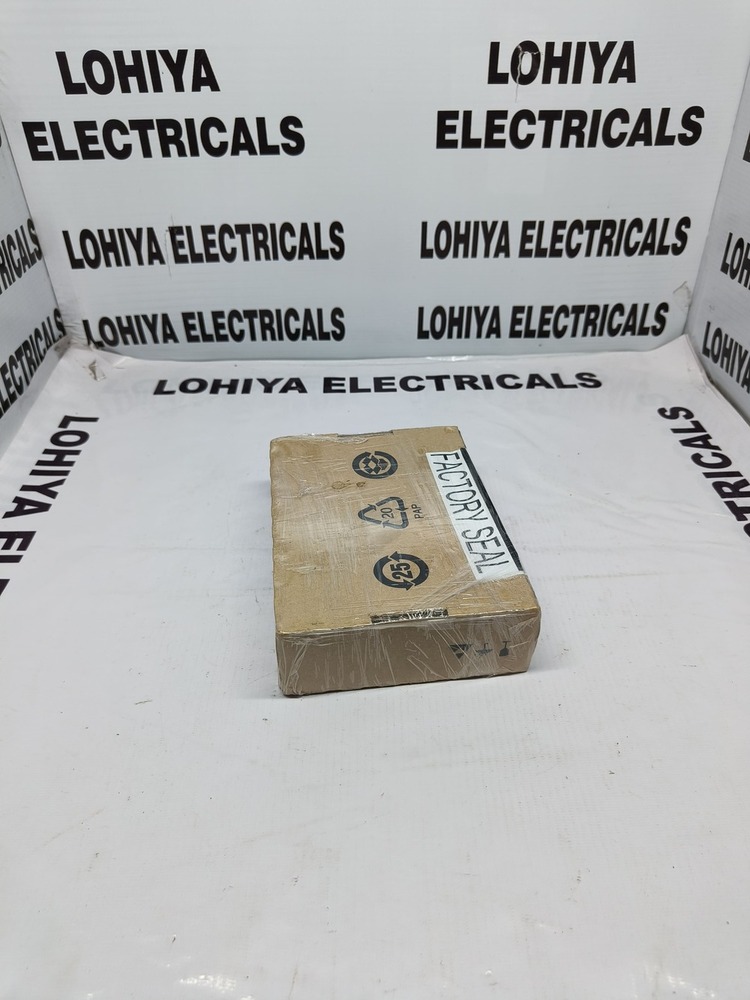

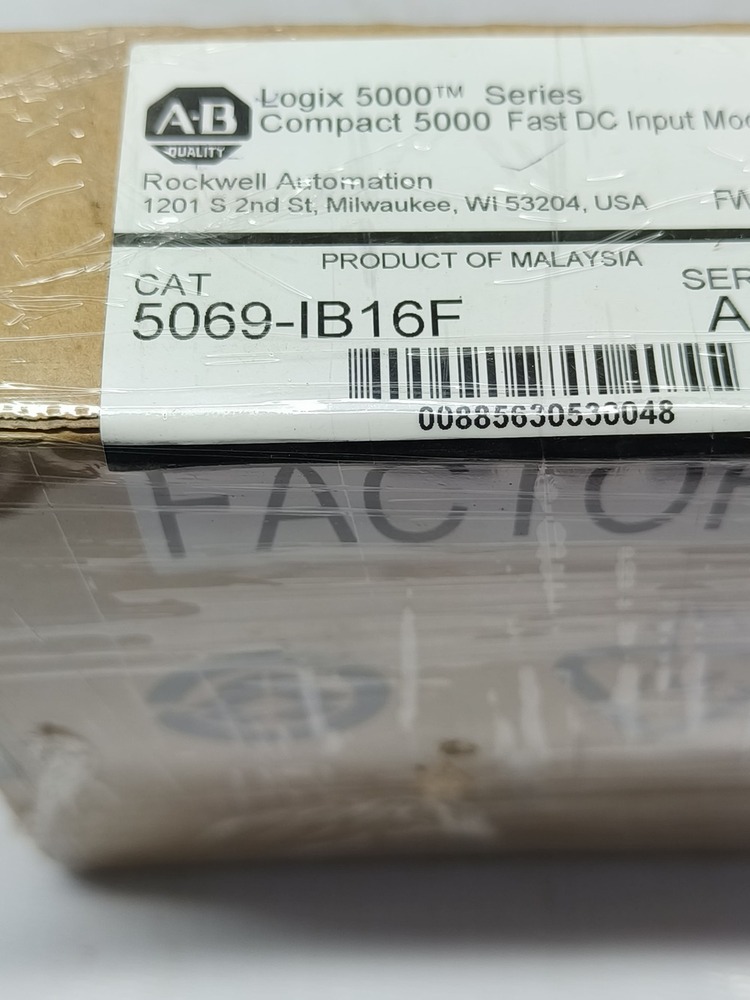

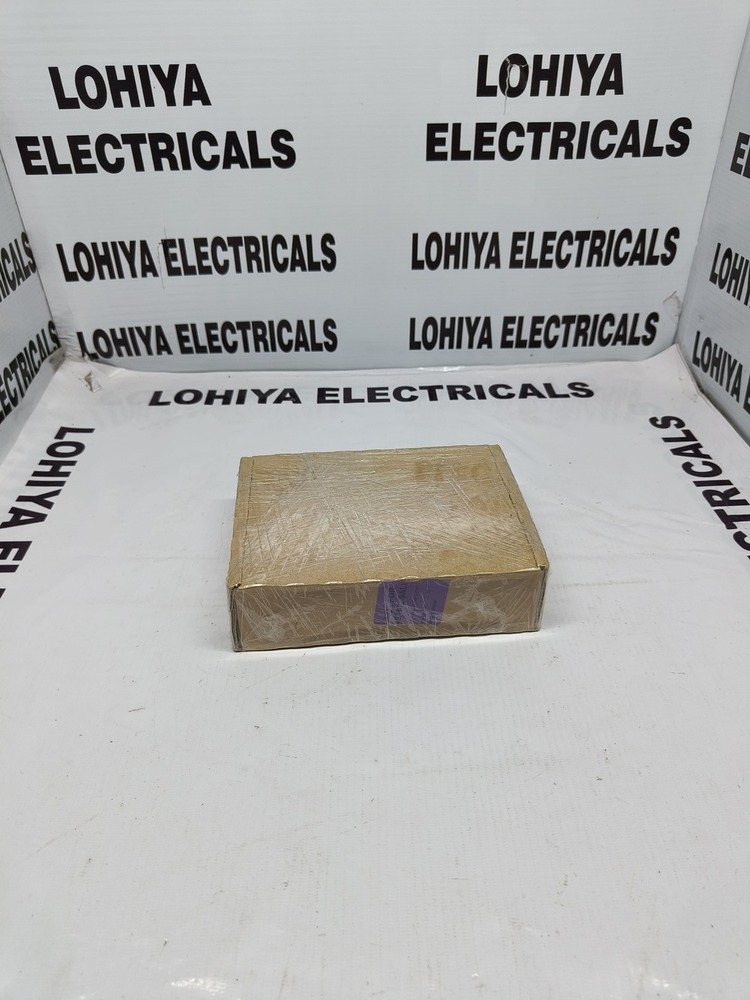

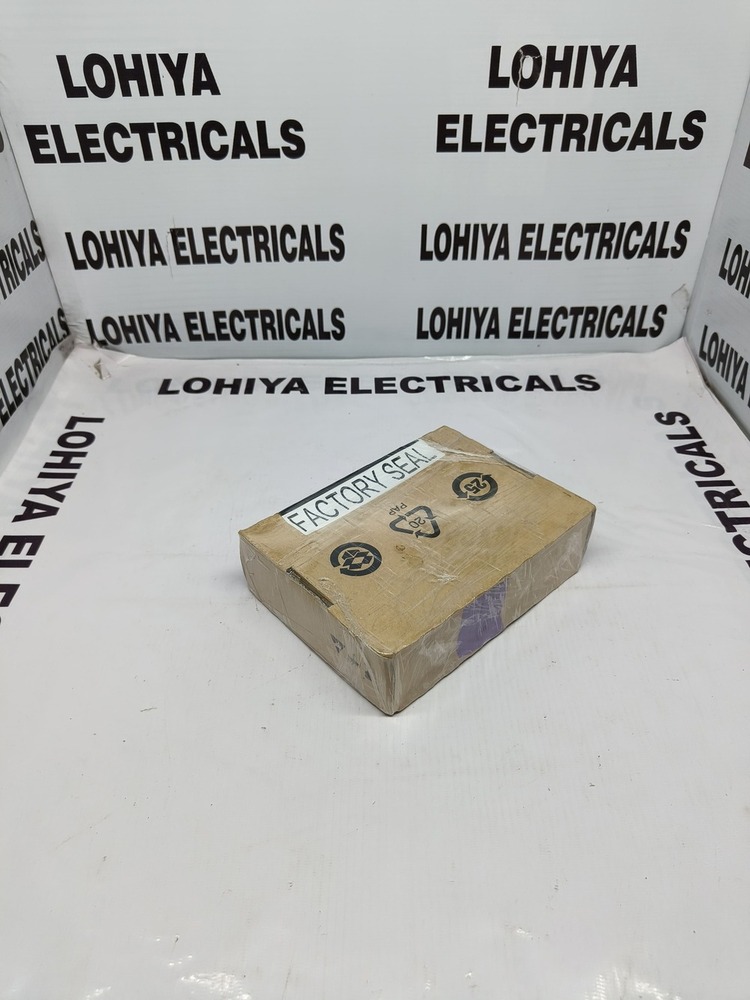

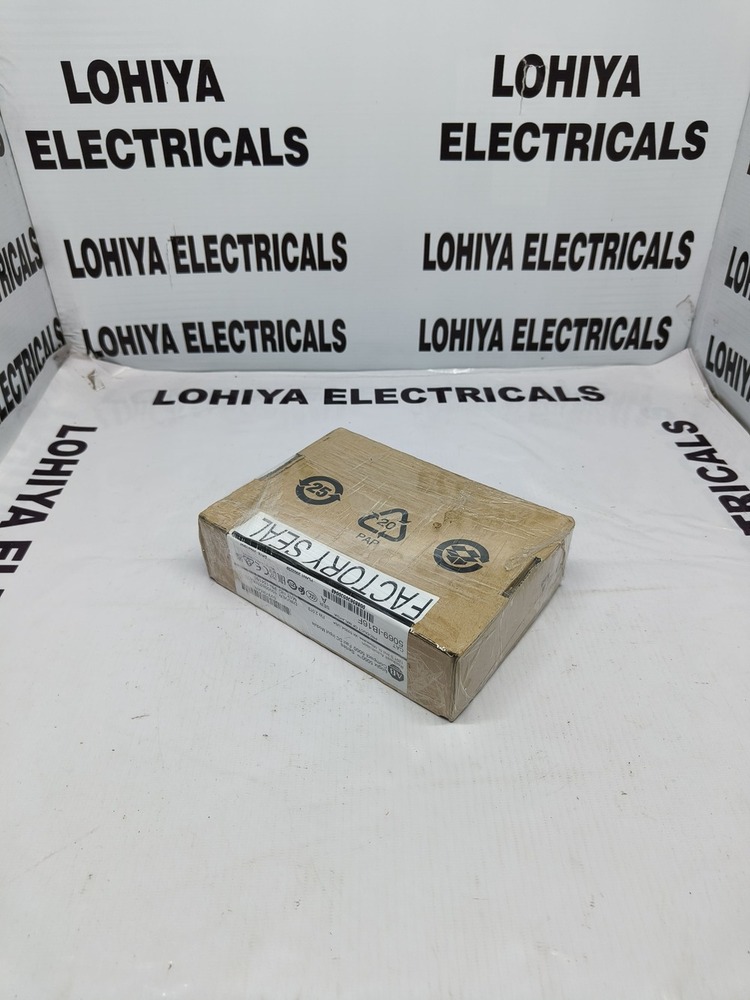

ALLEN BRADLY 5069-IB16F I/O MODULE

Get a Price/Quote

MOQ : 1 Piece

ALLEN BRADLY 5069-IB16F I/O MODULE Specification

Panel Type
DIN rail mounted

Features
High-density input, fast scan, removable terminal block, channel level diagnostics

Rated Operation Voltage
24V DC

Thickness
58 mm (Depth)

Cooling System
Convection

Way
16 Points

Current Rating
8mA per channel

Cover Material
Polycarbonate

Rated Current
8mA per channel

Protection Level
IP20

Components
Compact I/O

Protection Class
Class II

Connectivity Type
Removable terminal block

Control System
Allen Bradley CompactLogix/ControlLogix

Rated Insulation Voltage
30V DC

Base Material
Engineering polymer

Operating Voltage
24V DC

Product Type
Digital Input Module

Material
Plastic housing, electronic components

Surface Finish
Matte

Standard
IEC 61131-2

Surface Color
Gray

Rated Voltage
24V DC

Frequency (MHz)
50/60 Hz

Maximum Output Current
Not applicable (Input Module)

Dimension (L*W*H)
109 mm x 35 mm x 58 mm

Application
Factory automation, process control

IP Rating
IP20

Display Type
Status LED indicators

Vibration Resistance
5g, 10-500 Hz

Number of Inputs
16 digital (sourcing)

Series
Compact 5069 Series

Storage Temperature
-40C to +85C

Shock Resistance
30g

Module Status Indicators
Module status, Channel status

Relative Humidity
5-95% non-condensing

Wire Size
0.25-2.5 mm2 (24-12 AWG)

Mounting Type
DIN rail

Operating Temperature Range
-20C to +60C

Input Delay
< 1.5 ms (ON/OFF)

Input Type
Digital Sinking/Sourcing

Signal Level
Logic 0: 0-5V DC, Logic 1: 11-30V DC

About ALLEN BRADLY 5069-IB16F I/O MODULE

Unlock the power of industrial automation with the ALLEN BRADLEY 5069-IB16F I/O MODULE. Highlighted by its rarefied 16-point digital input capability, this module is engineered for stellar and reliable integration. Providing a terrific blend of performance and compactness, it features robust signal recognition (Logic 0: 0-5V DC, Logic 1: 11-30V DC), quick input delay (<1.5 ms), and superior diagnostics. Durable with IP20 protection, designed with engineering polymers and polycarbonate, and rated for best operating conditions, it promises unbeatable value and the best price for professionals seeking efficiency and quality.

Applications and Users of the 5069-IB16F I/O Module

The ALLEN BRADLEY 5069-IB16F I/O MODULE is purpose-built for use in factory automation and process control environments. Widely used by engineers, plant operators, and automation specialists, it is an essential component where high-density, reliable input is required. This module finds its area of application in manufacturing units, control panels, and automated assembly lines, seamlessly interfacing with Allen Bradley CompactLogix and ControlLogix control systems for maximum productivity.

Certifications, Packaging, and Supply for the 5069-IB16F Module

Certified to IEC 61131-2 standards, the 5069-IB16F I/O MODULE ensures compliance and safety. Packaging is robust, safeguarding the module during both storage and transit. Efficient order processing and streamlined logistics ensure swift delivery anywhere in India. With steady supply ability, it meets large or urgent demands, helping you to promptly equip your automation or process control systems with dependable Allen Bradley technology.

FAQ's of ALLEN BRADLY 5069-IB16F I/O MODULE:

Q: How does the ALLEN BRADLEY 5069-IB16F module connect to control systems?

A: The 5069-IB16F module utilizes a removable terminal block for easy and secure connectivity, and is optimized for use with Allen Bradley CompactLogix and ControlLogix control systems.

Q: What is the primary benefit of using the 5069-IB16F I/O Module in industrial automation?

A: Its high-density 16-channel input, fast scan times, and advanced diagnostics allow for efficient signal monitoring, improving overall process control reliability and productivity.

Q: Where can the 5069-IB16F I/O Module be installed?

A: This module is designed for DIN rail mounting, making it ideal for installation within industrial control panels, factory floors, and process automation setups.

Q: What certifications does the 5069-IB16F module comply with?

A: The module is certified to meet IEC 61131-2 standards, ensuring it adheres to international requirements for programmable controllers.

Q: What protection features are available in the 5069-IB16F I/O Module?

A: It offers IP20 protection, a robust engineering polymer base, and polycarbonate cover to ensure safety against dust and accidental contact, suitable for controlled industrial environments.

Q: How is the ALLEN BRADLEY 5069-IB16F module packaged and shipped?

A: Each module is packaged securely to prevent any transit damage, with orders processed promptly and logistics managed for reliable and timely door delivery throughout India.
