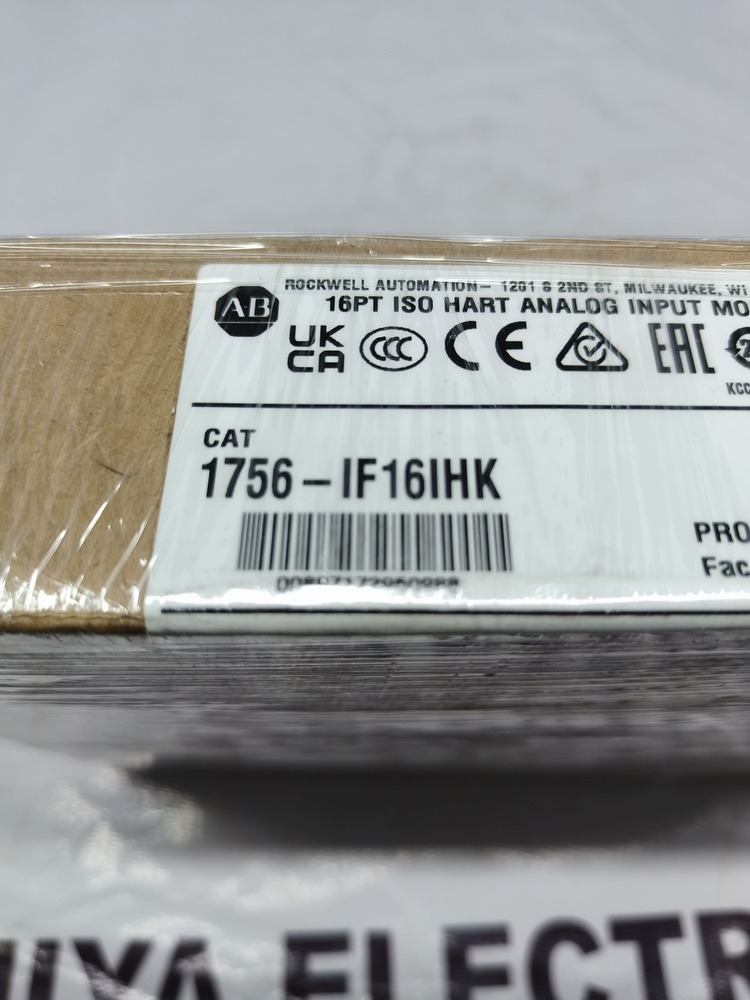

ALLEN BRADLY 1756-IF161HK ANALOG INPUT MODULE

Send Inquiry

Request To Call Back

ALLEN BRADLY 1756-IF161HK ANALOG INPUT MODULE

Get a Price/Quote

MOQ : 1 Piece

ALLEN BRADLY 1756-IF161HK ANALOG INPUT MODULE Specification

Base Material
Plastic

Protection Class
Class I

Rated Insulation Voltage
50V (continuous)

Cover Material
Plastic

Current Rating
120 mA @ 5.1V DC, 75 mA @ 24V DC (Backplane current)

Rated Operation Voltage
24V DC (Nominal)

Rated Current
Backplane: 120 mA @ 5.1V DC; 75 mA @ 24V DC

Panel Type
Modular Chassis Mounted

Cabinet Material
N/A (module inserted in chassis)

Components
1756 ControlLogix compatible module, field wiring connectors

Protection Level
IP20

Cooling System
Ensured by chassis ventilation

Features
16 isolated current/voltage analog input channels, Hot-swappable, Status indication LEDs

Control System
ControlLogix platform

Thickness
35 mm (Approx.)

Operating Voltage
18-32V DC

Connectivity Type
Backplane connection, Removable terminal block

Way
16 Channel

Product Type
Analog Input Module

Material
Industrial-grade plastic housing, internal electronics

Surface Finish
Matte

Standard
IEC 61131-2, UL, cUL, CE

Surface Color
Grey/Black

Rated Voltage
30V DC (Max)

Frequency (MHz)
50/60 Hz (signal filtering capability)

Maximum Output Current
N/A (Input Module)

Dimension (L*W*H)
145 mm x 35 mm x 130 mm (Approx.)

Application
Factory automation, Data acquisition, PLC systems

IP Rating
IP20

Display Type
Module Status LEDs

Relative Humidity
5% - 95% non-condensing

Module Type
1756-IF16 (High Density)

Resolution
16 bits

Input Signal Range
Current: 0-20 mA, 4-20 mA; Voltage: 10 VDC

Mounting Type
Chassis-based (ControlLogix)

Conversion Rate
12 ms (all channels scanned)

Storage Temperature
-40C to +85C

Group Isolation
Yes, channels in groups of 8

Operating Temperature
0C to 60C

Input Type
Single-ended or differential

Isolation Voltage
250V continuous (field to backplane and field to field)

Power Dissipation
3.5W maximum

About ALLEN BRADLY 1756-IF161HK ANALOG INPUT MODULE

Discover the premier ALLEN BRADLY 1756-IF161HK Analog Input Module, a best-seller renowned for its glorious performance in factory automation and PLC integration. Featuring unmatchable 16-bit resolution and multichannel flexibility (16 channels), this module suits both current and voltage signals with high isolation and robust build. Its modular design ensures seamless ControlLogix compatibility and IP20 protection for reliability. Take advantage of our exclusive discount-order today and equip your system with the industrial standard for accuracy, durability, and operational excellence in data acquisition and process control.

Material Excellence & Key Advantages

Fabricated from industrial-grade plastic with internal precision electronics, the 1756-IF161HK module boasts a premier matte finish and robust construction. Its superior insulation and high isolation make it highly reliable for rigorous operating environments. This module's primary advantage lies in its high-density, hot-swappable channels, dedicated for single-ended or differential analog input, perfectly tailored for data acquisition in demanding automation systems.

Domestic Supply & Premium Distribution

With strong market value and premium supply channels across India, the 1756-IF161HK's domestic availability ensures quick delivery and reliable post-sale support. Sample policies are flexible for qualified clients, and all orders can be efficiently processed through established FOB ports, guaranteeing secure and prompt distribution. Indian suppliers and traders can trust this acclaimed analog input module for solid performance and competitive supply dynamics.

FAQ's of ALLEN BRADLY 1756-IF161HK ANALOG INPUT MODULE:

Q: How does the ALLEN BRADLY 1756-IF161HK ensure signal integrity in industrial environments?

A: The 1756-IF161HK module features group isolation for its channels, and offers a 250V continuous isolation voltage from field to backplane, thus ensuring dependable signal integrity even in demanding industrial settings.

Q: What types of applications benefit most from this analog input module?

A: This module excels in factory automation, data acquisition, and PLC systems-anywhere high-density, precise analog data collection and robust integration with ControlLogix platforms are essential.

Q: Where can the ALLEN BRADLY 1756-IF161HK be installed?

A: It is designed for modular chassis-based mounting on ControlLogix systems, making it suitable for use in both new installations and system upgrades in industrial environments.

Q: What is the process for ordering a sample of the 1756-IF161HK module in India?

A: Qualified buyers in India may request samples from authorized suppliers, subject to sample policy evaluation. Orders are typically fulfilled through established FOB ports for secure shipment.

Q: What are the main benefits of its hot-swappable design?

A: The hot-swappable design allows for module replacement or addition without system downtime, maximizing productivity and minimizing maintenance interruptions.
