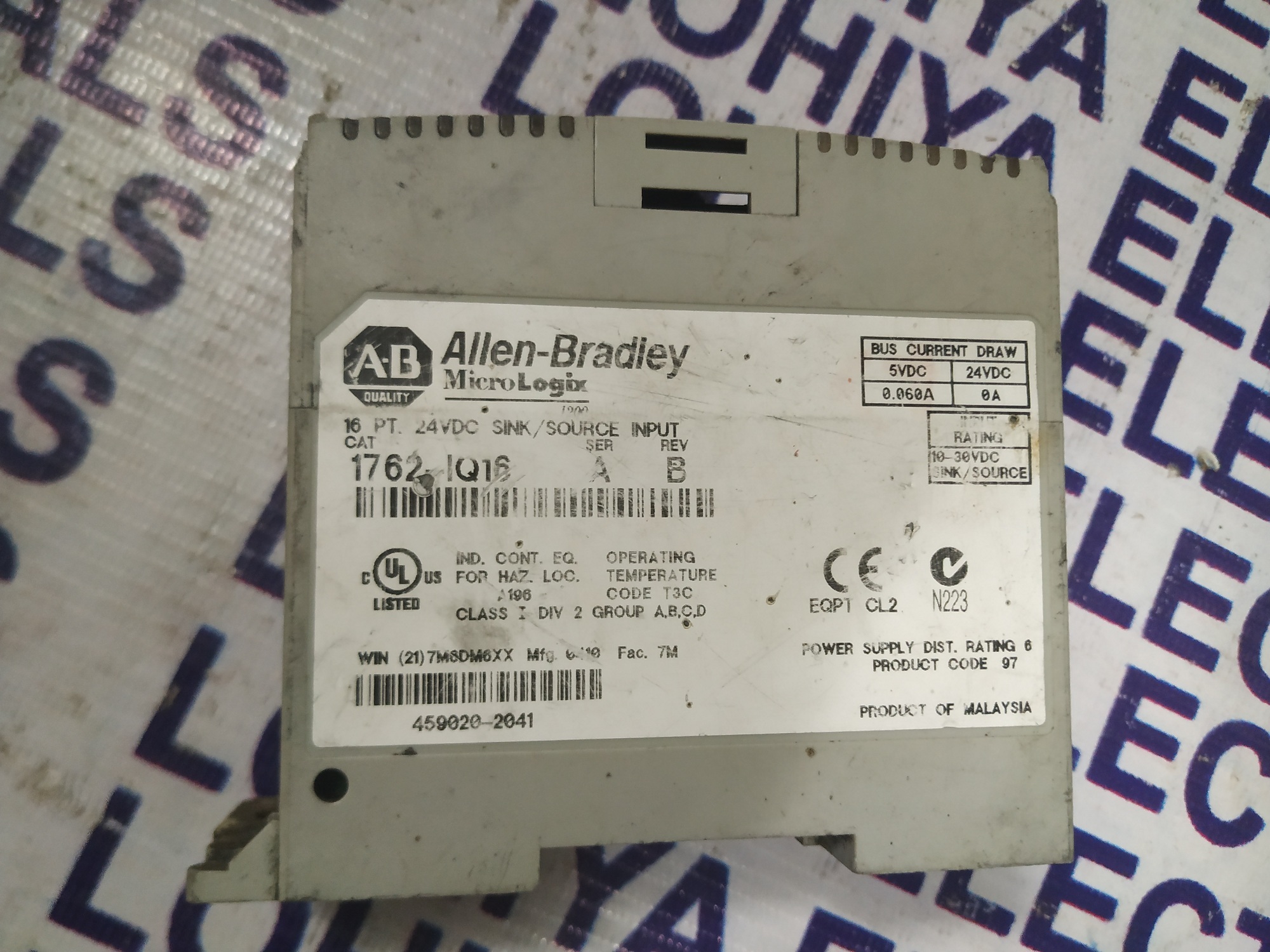

ALLEN BRADLEY MICROLOGIX INPUT MODULE 1762-IQ16

Get a Price/Quote

ALLEN BRADLEY MICROLOGIX INPUT MODULE 1762-IQ16 Specification

Panel Type
DIN Rail Mount

Features
High-Speed digital inputs, LED status display, Compact form factor

Connectivity Type
Removable terminal blocks

Cooling System
Convection (no active cooling)

Cabinet Material
N/A (module for installation)

Protection Class
Class I

Way
16-Channel

Operating Voltage
24V DC

Current Rating
8 mA per channel

Rated Operation Voltage
24V DC

Rated Insulation Voltage
250V AC

Rated Current
8 mA per channel at 24V DC

Cover Material
Plastic

Base Material
Industrial grade plastic

Components
Opto-isolated digital inputs

Control System
MicroLogix PLC

Protection Level
IP20

Thickness
Standard module thickness

Product Type
Digital Input Module

Material
Plastic Housing, Electronic Components

Surface Finish
Matte

Standard
IEC, UL

Surface Color
Grey

Rated Voltage
24V DC

Frequency (MHz)
DC module, Frequency not applicable

Maximum Output Current
Not Applicable (Input Module)

Dimension (L*W*H)
90 mm x 87 mm x 40 mm

Application
Industrial Automation, PLC Systems

IP Rating
IP20

Display Type
LED channel indicators

Storage Temperature Range
-40°C to 85°C

Humidity
5% to 95% non-condensing

Compatible PLC Series
MicroLogix 1200, 1400, and 1100

Power Consumption
2.7 Watts (maximum)

Input Delay Time
8 ms

Operating Temperature Range
0°C to 55°C

Input Type
Sink/Source

Mounting Type
DIN Rail mounting

Isolation Voltage
1500V AC for 1 min

Input Signal Voltage
15-30V DC

Weight
Approx. 200g

Terminal Type
Screw-type terminal blocks

About ALLEN BRADLEY MICROLOGIX INPUT MODULE 1762-IQ16

Experience the latest in industrial automation with the ALLEN BRADLEY MICROLOGIX INPUT MODULE 1762-IQ16. This world-class 16-channel input module boasts a sensational input voltage range of 1530V DC, sink/source capability, and robust opto-isolated digital inputs for unparalleled reliability. Designed with a breathtaking compact form factor and a matte grey finish, it fits seamlessly onto any DIN Rail, complementing MicroLogix 1200, 1400, and 1100 PLC systems. Featuring high-speed digital inputs and LED channel indicators, this input module delivers IP20 protection, effortless installation, and a rugged build. Shop Now or Reserve yours for a true upgrade to your automation needs!

Advanced Industrial Applications and Versatile Usage

The ALLEN BRADLEY MICROLOGIX INPUT MODULE 1762-IQ16 is designed for industrial automation and process control. Widely used by plant operators, engineers, and industrial system integrators, it is ideal for applications in manufacturing plants, assembly lines, and automated systems. With its reliable screw-type terminals and compatibility with MicroLogix PLCs, it enhances automation reliability and control, making it a preferred choice for professionals seeking consistent, high-performance input modules in demanding environments.

Superior Supply Ability, Quality Packaging, and Fast Dispatch

Trust our sensational supply chain to provide you with the 1762-IQ16 at a competitive list price. Each module is expertly packaged to ensure safe transport, protecting sensitive components during shipping. We offer express shipping options for quick delivery, so you can count on timely dispatching and minimal production downtime. Our streamlined reservation and order process guarantees you receive genuine products precisely when you need them, supporting efficient project completion.

FAQs of ALLEN BRADLEY MICROLOGIX INPUT MODULE 1762-IQ16:

Q: How do I install the ALLEN BRADLEY MICROLOGIX INPUT MODULE 1762-IQ16?

A: The module is designed for convenient DIN Rail mounting. Simply attach it to the designated slot within your MicroLogix 1200, 1400, or 1100 PLC system, connect the screw-type terminal blocks for your input signals, and ensure the connections are secure.

Q: What plant applications is the 1762-IQ16 best suited for?

A: It is ideal for use in industrial automation and PLC-based control systems, particularly in manufacturing plants, process automation, assembly lines, and any scenario requiring high-speed digital input and reliable monitoring of sensors and switches.

Q: When can I expect delivery after placing my order?

A: Once your order is confirmed, dispatching occurs quickly, and express shipping options are available for accelerated delivery. Standard lead times may vary, but you will receive tracking details to monitor your shipment.

Q: What are the benefits of using this input module in my automation system?

A: The 1762-IQ16 offers high-speed digital inputs, robust opto-isolation, LED status indicators, and a compact design, which all contribute to improved automation control, reliability, and straightforward integration in a wide range of industrial settings.

Q: Where can I use the 1762-IQ16 in my facility?

A: This module can be used wherever compatible MicroLogix PLCs are installedprimarily within industrial panels, control cabinets, or automation systems that require robust DC digital input monitoring.

Q: How does the input delay time affect system performance?

A: With an 8 ms input delay time, the module filters electrical noise effectively, ensuring accurate and stable signal processing for digital automation, which enhances overall system reliability and performance.
