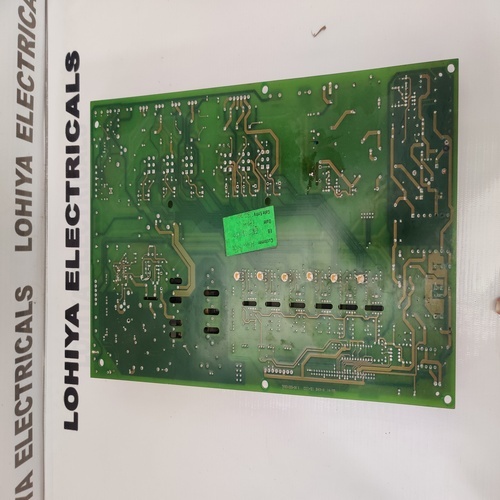

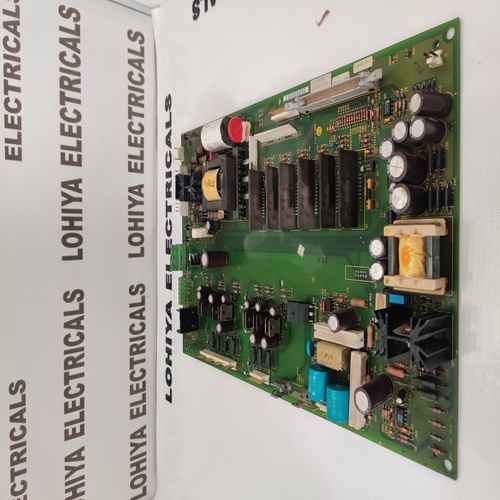

ALLEN BRADLEY 74101-169-57 PCB CARD

Get a Price/Quote

MOQ : 1 Piece

ALLEN BRADLEY 74101-169-57 PCB CARD Specification

Cover Material
None/Open

Thickness
1.6mm

Way
Single-sided

Control System
Manual/Electronic

Rated Current
2A

Protection Class
Class II

Components
Soldered electronic components & connectors

Current Rating
2A

Panel Type
Insert type

Protection Level
IP20

Cooling System
Natural air cooled

Rated Operation Voltage
250V

Features
Robust construction, reliable performance, plug-in replaceable

Connectivity Type
Edge connector/socket mount

Base Material
FR4

Operating Voltage
24V DC to 250V AC/DC

Rated Insulation Voltage
300V

Product Type
PCB Card

Material
High-grade epoxy resin PCB

Surface Finish
HASL (Hot Air Solder Leveling)

Standard
IEC, UL compliant

Surface Color
Green

Rated Voltage
250V AC/DC

Frequency (MHz)
Up to 50MHz

Maximum Output Current
2A

Dimension (L*W*H)
145mm x 95mm x 2mm

Application
Industrial automation, control panels

IP Rating
IP20

Mounting Type
Plug-in

Weight
120g

Model Number
74101-169-57

Insulation Resistance
>1000M at 500V

Storage Temperature
-40C to +85C

RoHS Compliance
Yes

Dielectric Strength
>1500V/min

Number of Layers
2 layers

Connector Type
Gold-plated edge connectors

PCB Technology
Through-hole

Operating Temperature
-20C to +70C

Flame Retardant
UL94V-0

About ALLEN BRADLEY 74101-169-57 PCB CARD

Capitalise on the magnificent performance of the ALLEN BRADLEY 74101-169-57 PCB CARDdesigned for those seeking customizable solutions in grand industrial automation settings. With rare features like gold-plated edge connectors and robust plug-in mounting, this PCB card offers reliable connectivity and protection up to IP20. Perfect for control panels, it complies with IEC and UL standards, ensuring optimal insulation and flame retardancy. Crafted from high-grade epoxy resin and built with two layers of through-hole technology, this durable card guarantees extraordinary reliability and is ideal for demanding applications.

Grand Versatility: Usage and Application

The ALLEN BRADLEY 74101-169-57 PCB CARD is perfect for industrial automation environments. Used by manufacturers, system integrators, and maintenance engineers, it finds application within control panels and automation systems requiring high reliability and performance. Its customizable plug-in design enables seamless replacements while the robust build is ideal for frequent operation in demanding industrial settings.

Magnificent Safety: Packaging and Certifications

Certified to IEC and UL standards, the ALLEN BRADLEY 74101-169-57 PCB CARD comes securely packaged to ensure grand protection during transportation. With reliable transport services and efficient handover processes, each unit maintains its integrity upon arrival. Sample policy is available, making it convenient for suppliers and traders in India to inspect quality and authenticity before large-scale procurement.

FAQs of ALLEN BRADLEY 74101-169-57 PCB CARD:

Q: How can the ALLEN BRADLEY 74101-169-57 PCB CARD be customized for different applications?

A: With its plug-in, insert-type panel structure and gold-plated edge connectors, users can easily adapt or replace the card to match unique automation and control system specifications, maximizing operational flexibility.

Q: What makes this PCB card suitable for industrial control panels?

A: Its robust construction, high insulation resistance, UL94V-0 flame retardancy, and through-hole technology make it perfect for mission-critical control panels within industrial automation environments.

Q: When is it recommended to use the ALLEN BRADLEY 74101-169-57 in automation projects?

A: This card is recommended for automation projects requiring reliable performance, high dielectric strength, and easy plug-in replacement in systems operating between -20C to +70C and voltages up to 250V AC/DC.

Q: Where can suppliers and traders in India acquire genuine ALLEN BRADLEY 74101-169-57 PCB cards?

A: Suppliers and traders can source authentic units through certified distributors offering secure packaging and sample policies for quality verification prior to bulk handover.

Q: What are the benefits of the reliable performance and protection levels in this PCB card?

A: The reliable performance, backed by excellent dielectric strength and IP20 protection, ensures minimized downtime, enhanced equipment safety, and long-term value in demanding industrial environments.
