ALLEN BRADLEY 22F-A1P6N103 AC DRIVE

Name: ALLEN BRADLEY 22F-A1P6N103 AC DRIVE
Brand: LOHIYA ELECTRICALS
Price: 1000.0 INR
Availability: InStock

Price 1000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

ALLEN BRADLEY 22F-A1P6N103 AC DRIVE Specification

Power Supply
AC

Operating Temperature
-10C to 50C

Noise Level
<65 dB

Output Type
Three-phase AC output

Rated Power
0.37 kW

Cooling Method
Integral fan cooling

Features
Compact size, V/Hz control, RS485/Modbus Communication, Programmable digital inputs/outputs

Application
Industrial motor control, Pumping systems, HVAC, Conveyors

Connector Type
Screw terminal

Power Factor
>0.98

Phase
Single Phase Input / Three Phase Output

Current Range
0.8-1.6A

Output Current
1.6A

Rated Current
1.6A

Working Temperature
-10C to 50C

Product Type
AC Drive

Output Power
0.5 HP (0.37 kW)

Output Frequency
0-400 Hz

Input Voltage
200-240V AC

Voltage Protection
Overvoltage, Undervoltage Protection

Efficiency
~98%

Material
Plastic, Metal

Line Regulation
1%

Storage Temperature
-40C to 70C

Weight
~1.1 kg

Protection Degree
IP20

Alarm Functions
Overcurrent, Overload, Stall Prevention, Ground Fault

Communication Interface
RS485/Modbus

Control Method
V/Hz (Voltage/Frequency) Control

Frequency Tolerance
5%

Relative Humidity
5% to 95% non-condensing

Frequency Setting
Digital/Analog

Braking Unit
Integrated

Mounting Type
Panel Mount

Digital Inputs
4

Enclosure Rating
IP20

Digital Outputs
1 relay

Dimensions
72mm (W) x 143mm (H) x 136mm (D)

Compatible Motor Type
Induction Motor

Display Type
LED

Software Compatibility
Connected Components Workbench

ALLEN BRADLEY 22F-A1P6N103 AC DRIVE Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash Advance (CA), Telegraphic Transfer (T/T)

Supply Ability
1 Piece Per Day

Delivery Time
3 Days

Sample Available
No

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Africa, Middle East

Main Domestic Market
All India

ALLEN BRADLEY 22F-A1P6N103 AC DRIVE About

ALLEN BRADLEY 22F-A1P6N103 AC DRIVE Supplier In Bhavnagar, Gujarat, India

Lohiya Electricals deals in all types of Industrial Automation Products and We are dealing in all of India.

Model No:- 22F-A1P6N103

Product Name:- ALLEN BRADLEY 22F-A1P6N103 AC DRIVE

Brand:- ALLEN BRADLEY

Condition:- USED CONDITION

ALLEN BRADLEY 22F-A1P6N103 AC DRIVE in stock.

Note:- Custom/Duty and charges will be paid by the buyer (if any)

MORE INFORMATION ABOUT THIS PRODUCT

Description:-

ALLEN BRADLEY
22F-A1P6N103
AC DRIVE

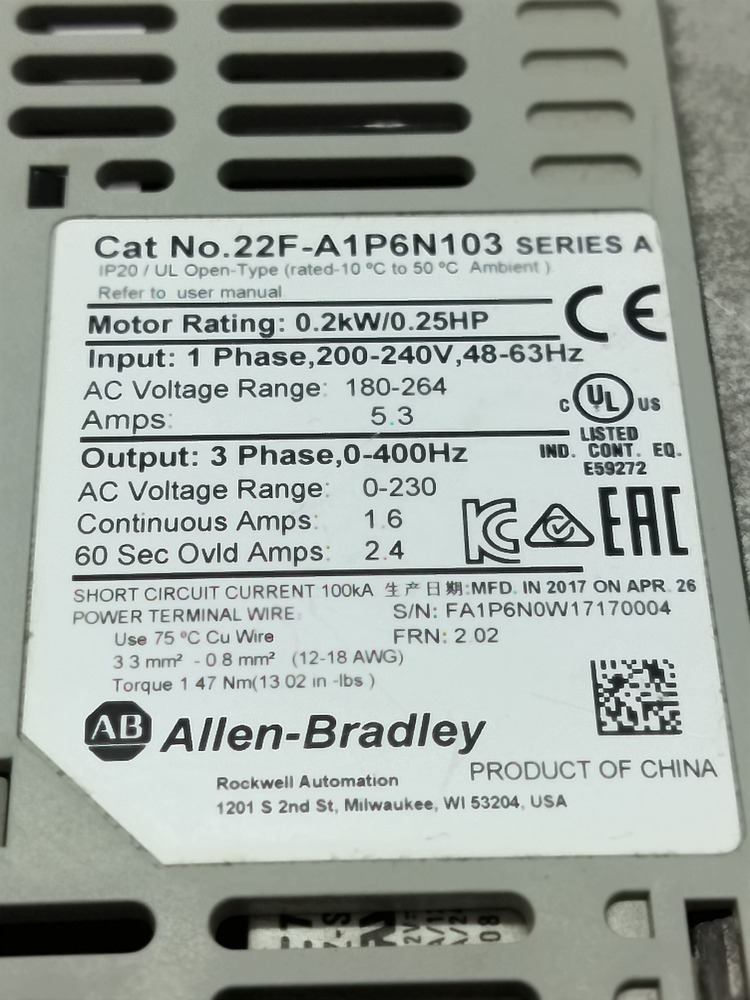

PLEASE CHECK LABEL PHOTO FOR MORE INFORMATION

UPLOADED BY:- HAFIZ SUMRA

Optimized for Industrial Applications

Ideal for industrial motor control, pumping systems, HVAC, and conveyors, this AC drive's IP20 enclosure and compact design allow for reliable panel mounting in diverse automation scenarios. Its integrated braking unit and comprehensive alarm functions guarantee added safety for both equipment and operators.

Flexible Communication and Control

Featuring RS485/Modbus interface, the drive ensures seamless data exchange and remote monitoring, making it suitable for modern, interconnected production lines. V/Hz control and programmable inputs/outputs allow precise and adaptable performance with a broad range of induction motors.

FAQ's of ALLEN BRADLEY 22F-A1P6N103 AC DRIVE:

Q: How do I connect the ALLEN BRADLEY 22F-A1P6N103 AC Drive to my motor?

A: The AC drive can be mounted on a panel and connected using screw terminals. Ensure proper wiring between the drive and your single-phase AC power source, and connect the output terminals to a compatible three-phase induction motor. Refer to the installation manual for detailed wiring instructions.

Q: What protection features are offered by this drive?

A: This AC drive provides overcurrent, overload, stall prevention, ground fault, overvoltage, and undervoltage protection to safeguard both the drive and connected motor, ensuring reliable performance in industrial settings.

Q: When is it beneficial to use the V/Hz control method provided by this drive?

A: V/Hz (Voltage/Frequency) control is ideal for general-purpose induction motor applications where constant speed or variable speed operation is required, such as in conveyors, pumping systems, or HVAC equipment.

Q: Where can the ALLEN BRADLEY 22F-A1P6N103 be installed?

A: The drive is suitable for indoor industrial environments and should be mounted on a panel within facilities that maintain ambient temperatures between -10C and 50C and relative humidity from 5% to 95% non-condensing.

Q: What is the process for configuring and monitoring this AC drive?

A: Configuration and monitoring can be conveniently performed using the Connected Components Workbench software via RS485/Modbus communication. This enables users to set parameters, monitor performance, and perform diagnostics efficiently.

Q: How can this AC drive benefit my industrial automation system?

A: Its compact size, high efficiency (~98%), advanced protection features, and programmable input/output options help optimize motor performance, reduce energy consumption, and enhance system reliability-making it valuable for industrial automation and process control applications.
