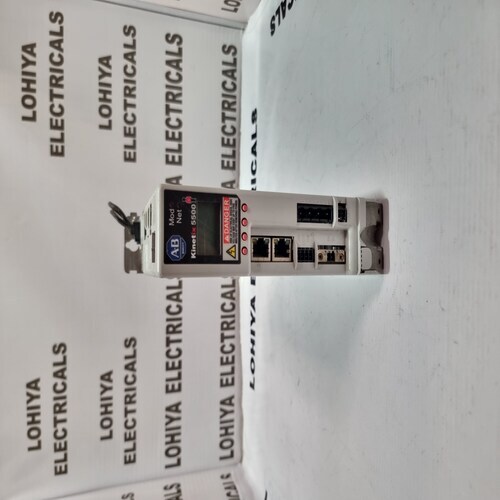

ALLEN BRADLEY 2198-H003-ERS KINETIX 5500 SERVO DRIVE

Send Inquiry

Request To Call Back

ALLEN BRADLEY 2198-H003-ERS KINETIX 5500 SERVO DRIVE

Get a Price/Quote

MOQ : 1 Piece

ALLEN BRADLEY 2198-H003-ERS KINETIX 5500 SERVO DRIVE Specification

Cabinet Material
Sheet Metal

Cooling System
Natural convection

Rated Operation Voltage
120/240V AC

Components
Servo drive logic, power input, motor feedback, brake relay

Rated Current
3.0 A (Peak)

Control System
EtherNet/IP, Integrated Motion

Thickness
Standard enclosure

Panel Type
Enclosed panel mount

Cover Material
Plastic/Metal

Operating Voltage
120/240V AC

Protection Class
Class I

Current Rating
1.5 A (Continuous), 3.0 A (Peak)

Protection Level
Overload, short circuit, ground fault protection

Features
Flexible motor feedback, Safe Torque Off (STO), Compact design

Base Material
Steel/Aluminum

Rated Insulation Voltage
600V

Way
Single Axis

Connectivity Type
Dual-port EtherNet/IP

Product Type
Servo Drive

Material
Industrial-grade components

Surface Finish
Gloss/Matte

Standard
IEC, UL, CSA

Surface Color
Black/Silver

Rated Voltage
450V DC (bus), 120/240V AC input

Frequency (MHz)
50/60 Hz

Maximum Output Current
1.5 A (Continuous), 3.0 A (Peak)

Dimension (L*W*H)
202 x 60 x 178 mm

Application
Industrial Automation, Packaging, Assembly, Material Handling

IP Rating
IP20

Display Type
Status LED

Ambient Temperature Range
0C to +50C (32F to 122F)

Firmware Version
Compatible with Studio 5000 v21 and later

Minimum Motor Inductance
0.2 mH

Weight
Approximately 1.7 kg

Safe Torque Off (STO)
Integrated

Relative Humidity
5% to 95% non-condensing

Vibration Resistance
2g, 10 to 200Hz

Mounting Method
Panel Mount

Pulse Width Modulation Frequency
4-8 kHz selectable

Enclosure Type
Open Type

Series
Kinetix 5500

Motor Feedback Type
Digital Encoder Supported

Number of Digital Inputs/Outputs
Configurable I/O, 2 digital inputs

Communication Protocols
EtherNet/IP, Safe Torque Off (STO)

About ALLEN BRADLEY 2198-H003-ERS KINETIX 5500 SERVO DRIVE

Experience elite control and unmatched reliability with the sought-after ALLEN BRADLEY 2198-H003-ERS KINETIX 5500 SERVO DRIVE. Customizable for diverse industrial applications, this drive features configurable I/O, integrated Safe Torque Off (STO), and supports digital encoders for grand precision. Built with industrial-grade materials, it boasts robust overload, short circuit, and ground fault protection. Its compact, panel-mount design ensures flexible installation. Remarked for its compatibility with Studio 5000 and advanced EtherNet/IP connectivity, this single-axis masterpiece is the ideal choice for those seeking a truly exceptional servo drivebuy now for cutting-edge automation.

Highlighted Features and Usage

The ALLEN BRADLEY 2198-H003-ERS KINETIX 5500 SERVO DRIVE stands out for its customizable digital I/O, panel-mount versatility, and integrated Safe Torque Off (STO) function. Its grand design suits applications in industrial automation, packaging, assembly, and material handling. Users benefit from flexible motor feedback support and high vibration resistance, making it ideal for demanding environments. This device is highly suitable for integrators and businesses seeking advanced control and reliable performance in their automation systems.

Packaging, Export Markets, and Payment Processes

Each servo drive undergoes meticulous packaging to ensure it arrives in pristine condition. With a focus on secure freight and order processing, the product is prepared for global export. Main markets include Europe, Asia, and North America, catering to elite suppliers and traders in India and beyond. Payment terms are tailored to meet customer needs, featuring flexible options that streamline the ordering experience and ensure prompt delivery.

FAQs of ALLEN BRADLEY 2198-H003-ERS KINETIX 5500 SERVO DRIVE:

Q: How can I configure the digital inputs and outputs on the KINETIX 5500 SERVO DRIVE?

A: The digital I/O on the ALLEN BRADLEY 2198-H003-ERS can be customized through its user-friendly interface and configured in Studio 5000 versions v21 or later, allowing adaptation to specific automation requirements.

Q: What are the main benefits of the integrated Safe Torque Off (STO) feature?

A: The integrated Safe Torque Off (STO) enhances safety by immediately removing torque from the motor, providing protection for operators and equipment in critical situations without requiring additional wiring or relays.

Q: Where is the ideal environment to install this servo drive?

A: This servo drive is designed for panel mounting in enclosed industrial automation settings, with an ambient temperature range of 0C to +50C and high humidity tolerance (5%-95%), ensuring reliable operation in factories and production lines.

Q: What specific industries and applications is this servo drive recommended for?

A: It is tailored for use in industrial automation, packaging, assembly, and material handling, where precision, reliability, and customizable operation are highly valued.

Q: How does the order and shipping process work for international buyers?

A: Orders are carefully processed with professional packaging and reliable freight options. The company exports globally, and payment terms are arranged to suit buyer requirements, ensuring smooth cross-border transactions.
